FEC AFC3000 - Safety Precautions

Ethernet-I/P Fieldbus Expansion Unit
PAGE 6

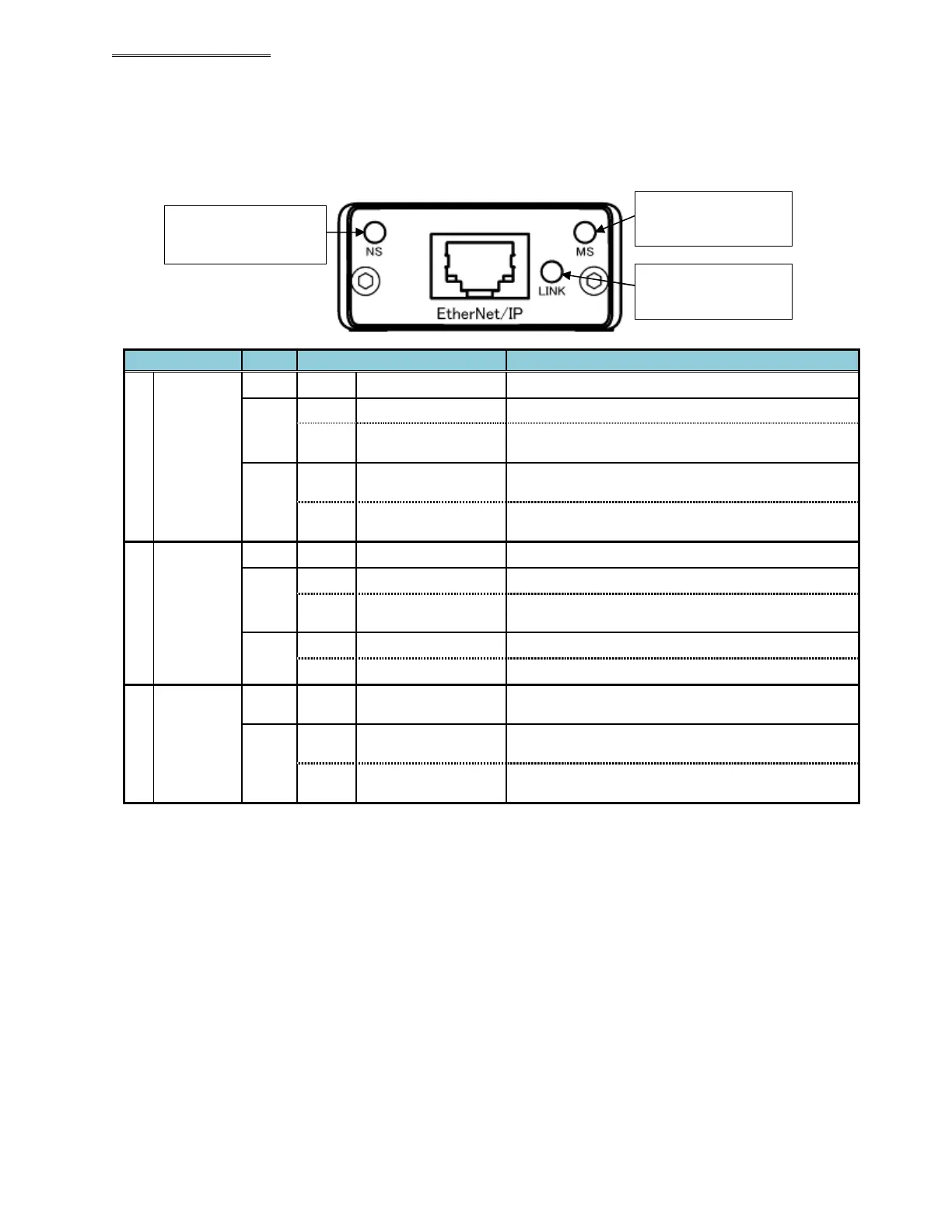

● List of LED Indications
The module LEDs indicate the states of the nodes of the AFC3000 Ethernet-I/P System and the network
state.
LED Color State Details
A
Network
Status
LED
Off
Off
Offline Offline, No power or no IP address
Green
Lit up
Online Online, One or more connections established
Flash
Communication
not established
online, connection is not establishe
Red
Lit up
Error
Fatal error has occurred. / Conflicting IP
address.
Flash
Connection
timeout
One or more connection timeout has occurred
B
Module
Status
LED
Off Off
Power OFF Power is not supplied.
Green
Lit up
Online Controlled by a scanner in RUN state -
Flash
Communication
not established
Incomplete / wrong configuration or scanner in
idle state
Red
Lit up
Error Major Fault -A critical error has occurred.
Flash
Error A recoverable error has occurred.
C
Link
Activity
LED
Off Off
Link not
established
ETHERNET link is not established and
communication is not performed.
Green
Lit up
Link Established
ETHERNET link is established but not
communicating
Flash
Communicating
ETHERNET link is established and
communication is in progress.
A : Network
Status LED
B : Module
Status LED
C : Link
Activity LED
