MicroPulse MPSxxU Manual
4
MPSxxU Light Head
Federal Signal www.fedsig.com
Mounting the Light Heads
AIRBAG DEPLOYMENT: Do not install equipment or route wiring in the deployment path of an
airbag. Failure to observe this warning will reduce the eectiveness of the airbag or potentially
dislodge the equipment, causing serious injury or death.
To mount the light head:

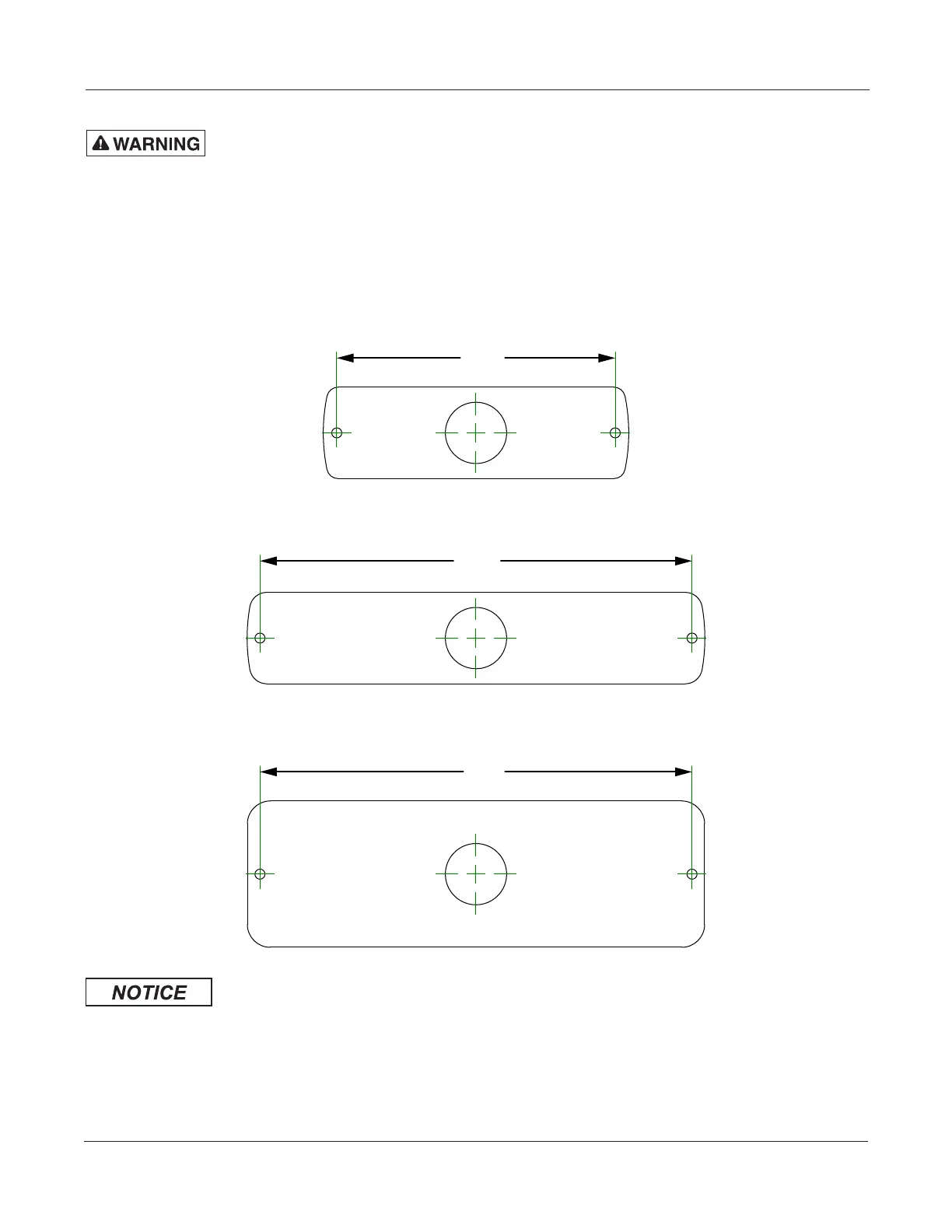

1. Using the light head as a guide or the dimensions in Figure 2, scribe the three drill position marks at
the selected mounting location.
Figure 2 Drilling
3.05 in
MPS3U
4.72 in
MPS6U
4.72 in
MPS12U
DRILLING PRECAUTIONS: Before drilling holes, check the area you are drilling into to be sure
you do not damage vehicle components while drilling. All drilled holes should be de-burred and
all sharp edges should be smoothed. All wire routings going through drilled holes should be
protected by a grommet or convolute/split loom tubing.
2. Drill two 1/8-inch mounting holes and an 11/16-inch wire routing hole at the marked positions.
