6. Installation/Removal of the Seat

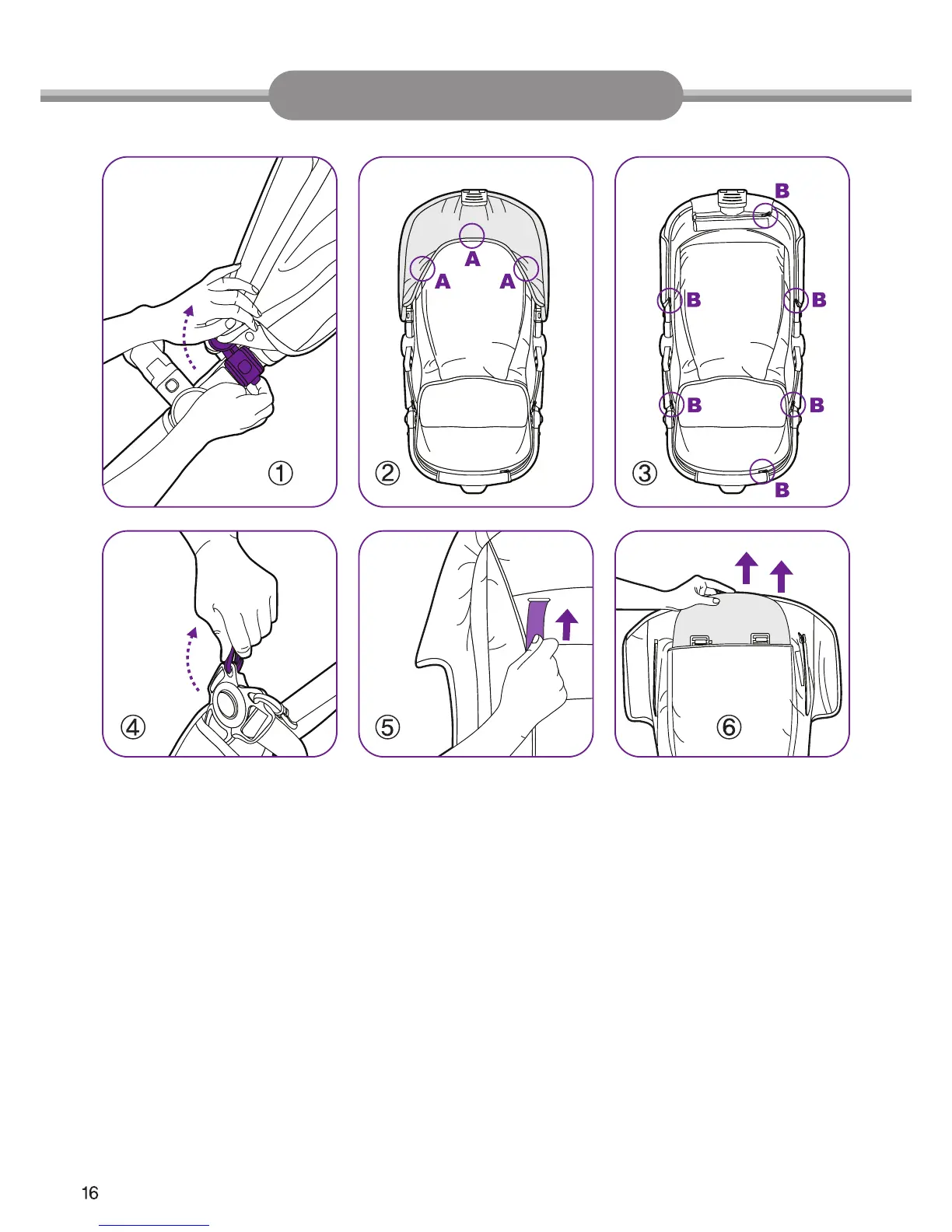

1. Separate the canopy pack in the right and left as in the picture ①.
2. Separate the Velcro tape in A part at the back of the seat as in the picture ②.
3. Separate the zipper at the B part at the back of the seat as in the picture ③ and take out the sub-foot
rest from the seat.
4. Separate the shoulder belt clip by lifting it to the arrow direction as in the picture ④.
5. Push in the shoulder belt to the shoulder belt hole as in the picture ⑤.
6. Take out the back rest support from the back of the seat as in the picture ⑥.
7. Take reverse order to install the seat.
