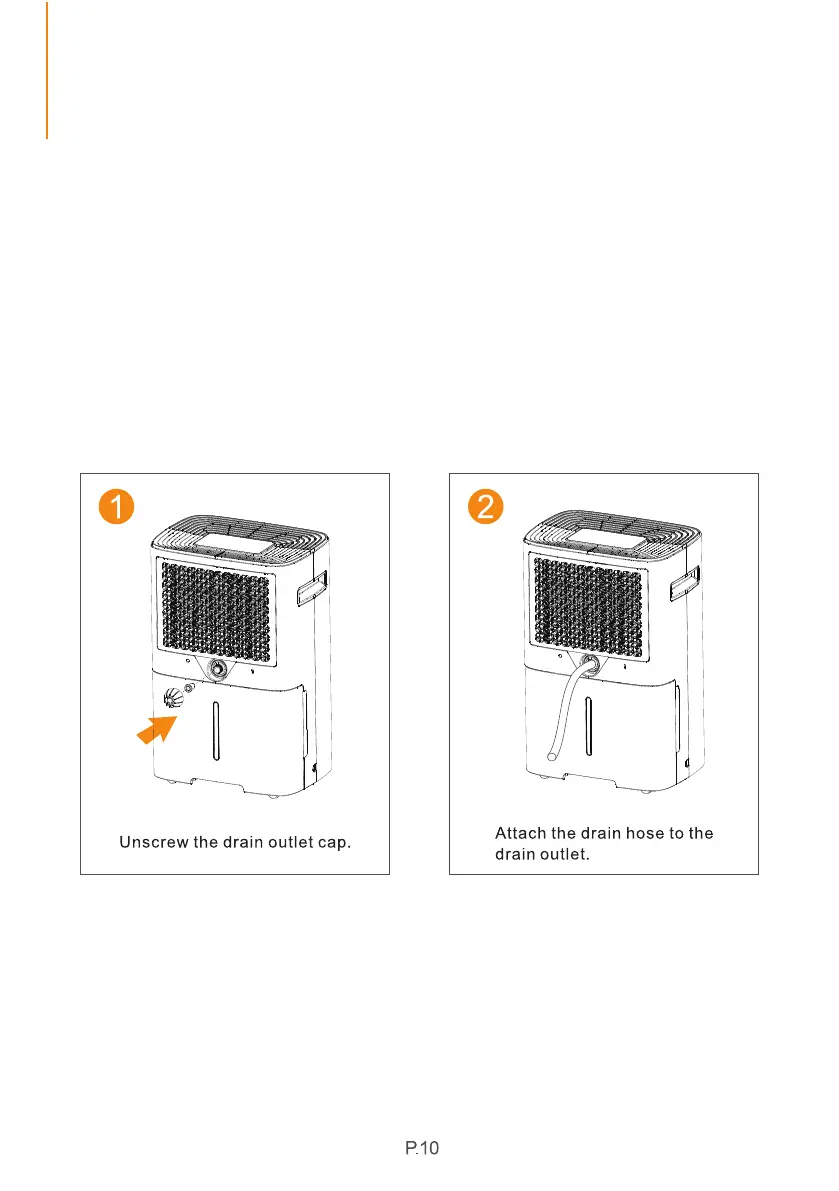

OPERATION INSTRUCTIONS
To continuously drain, please unplug the machine from the power source
rst. Then take out the water tank and open the drain cover. Now insert
the drain hose into the continuous drain port and place the water tank
back to its original place. Plug the machine into the power source to start
continuous drainage. Please make sure that the drain hose should be
lower than the continuous drain port by at least 3.9 inches. Do not bend
the drain hose. (Note: The diameter of the continuous drain port is
16mm/0.63inch.)
7. Continuous Drainage
