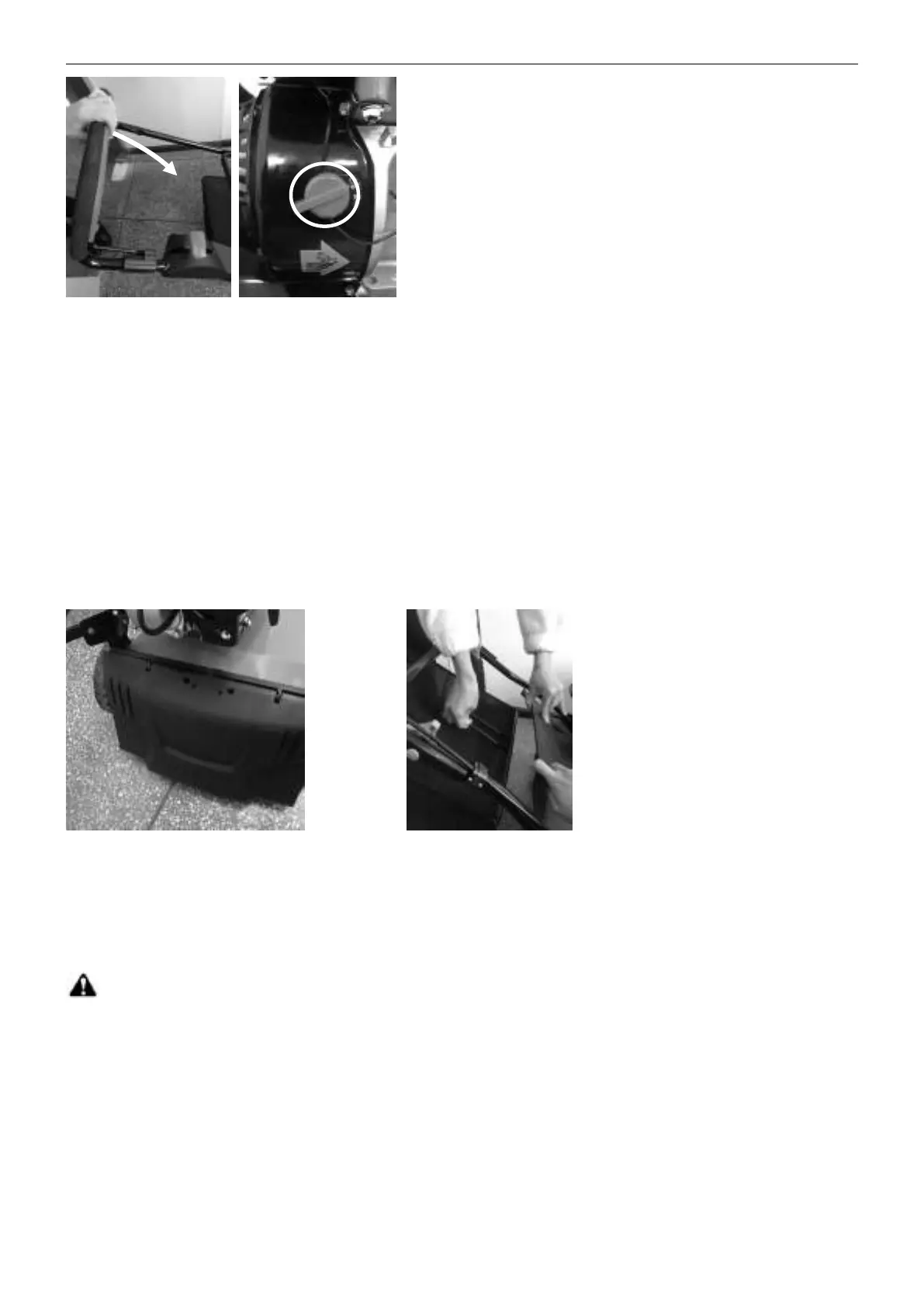

6.3 GRASS CATCHER
6.3.1 Wok without the grass catcher (optional)
For scarifier, you can work with grass catcher or without grass catcher. Whenever you detach the grass
catcher, the deflector flap dropped down. When scarifier without the grass catcher attached, the cuttings are
ejected straight onto the ground. (Fig.9A)
6.3.2 Wok with the grass catcher
When work with grass catcher, the cuttings are ejected to the grass catcher. If the grass catcher is full of
cuttings, you will need to empty and clean the grass catcher.
1. Stop the engine and wait until it comes to a stop.
2. Lift the deflector flap and unhook the grass catcher. (Fig.9B)
3. Empty out the contents.
Fig.9A Fig.9B
6.4 HEIGHT ADJUSTMENT INSTRUCTIONS
Danger — Do not touch rotating tines.
CAUTION: Do not at any time make any adjustment to scarifier without first stopping the engine .
Your scarifier is equipped with a depth adjustment lever offering a Unlimited working positions.The working
positions are -3mm, -6mm, -9mm, -12mm, -15mm height.
1. Stop mower and disconnect spark plug cable before changing mower cutting height.
2. To change the height of cut by turn the front knob clockwise rotation or negative rotation to selected height.
3. Move transport lever to transport position to prevent cutter deck from touching the ground after finish work.
