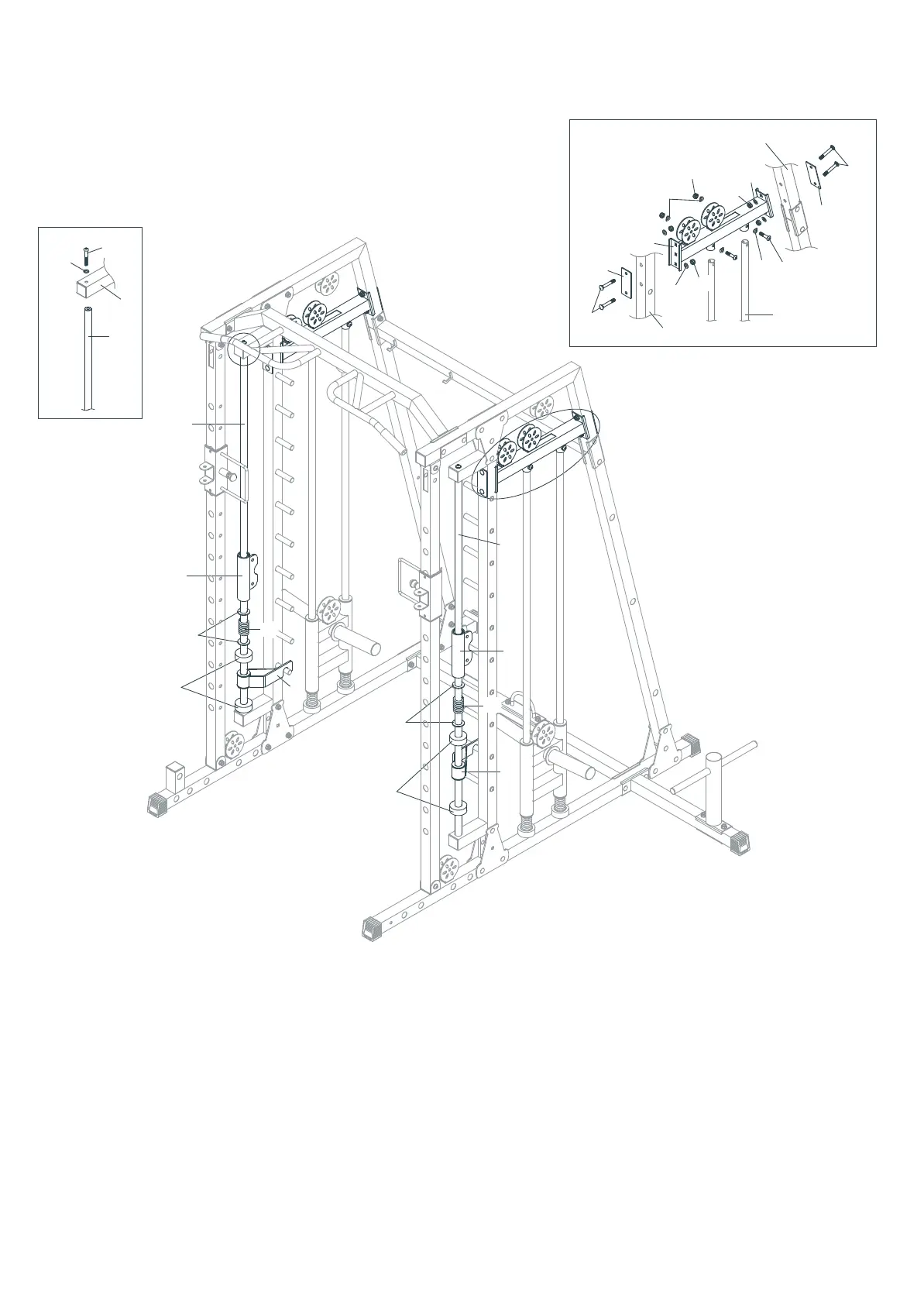

STEP 6˖
1. Insert the Fixing Bracket (12) into two Rear Weight Guide Tubes (16), using two
M10X45mm (93), four Arc Washers (104) and two M10 Nylon Nuts (107).
2. Attach the Fixing Bracket (12) and two Connect Plates (50) to the Weight Support
Tube-Right (10) and Upper Cross Beam (8), using four M10X70mm Carriage Bolts (98),
four M10 Washers (103) and four M10 Nylon Nuts (107).
3. Install the other side the same way.
4. Insert the Front Weight Guide Tube (15) into Weight Support Tube (10).
5. In order insert the one Rubber Cushion (73), Fixed Hook-Right (30), one Rubber Cushion
(73), one Big Washer (20), one Spring (59), one Big Washers (20), one Sliding Tube (27)
into the Front Weight Guide Tube (15). Using one M10X65mm Bolt (91) and one M10
Washer (103).
6. Install the other side the same way.
