FEIERDUN FOR01 - Step 7: Connect Lever Tubes and Pulley Blocks

17
22
22
38
38
28
28
27
27
24
26
25
61
96
96
106
106
87
87
94
94
103
103
103
103
103
103
103
103
107
107
107
107
88
88
1
9
9
-10-

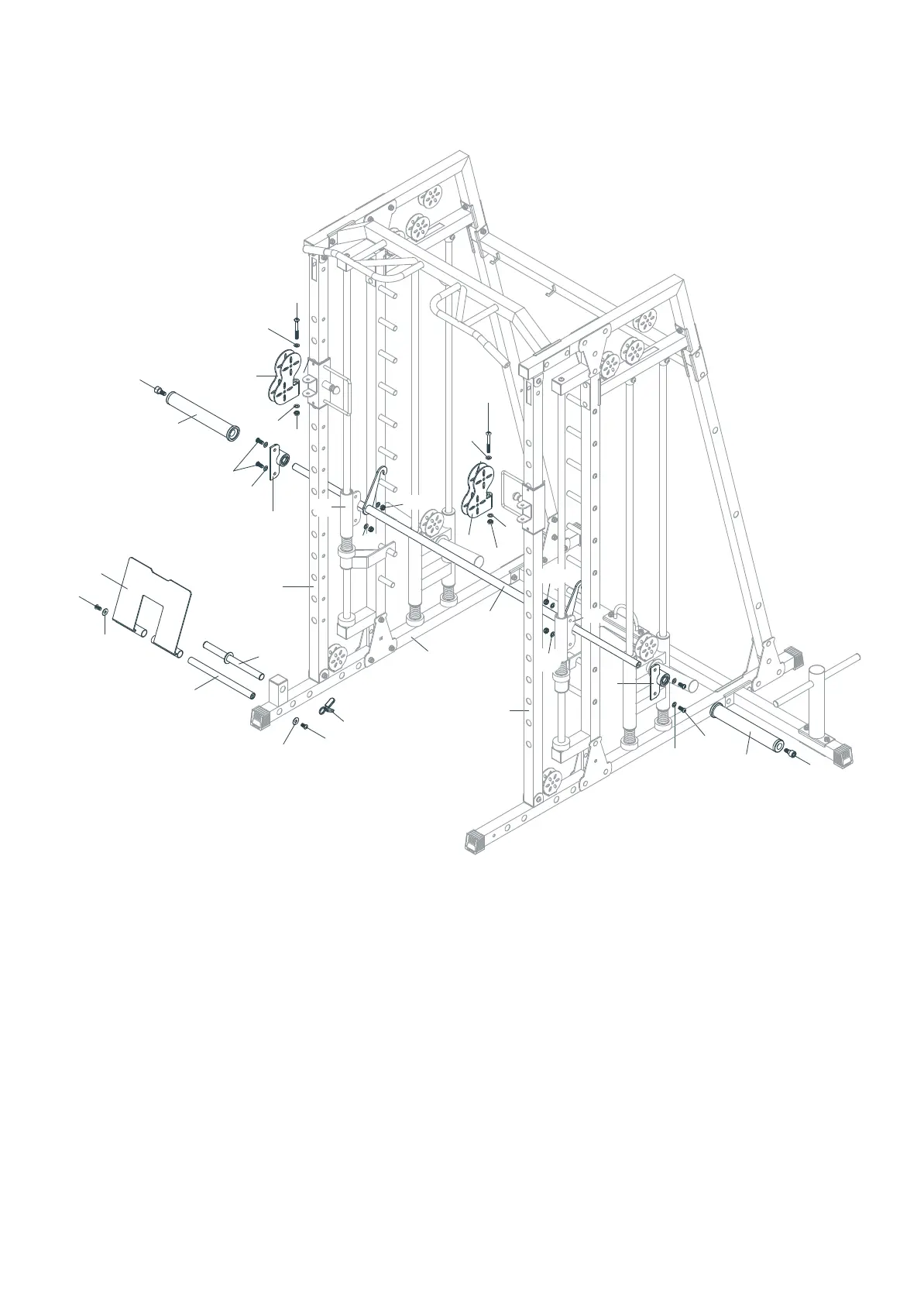

STEP 7˖
1. Insert the two Lever Fixed Tubes (28) into Lever (17).
2. Attach the two Lever Fixed tubes (28) to the two Sliding Tubes (27), using four M10X25mm
Bolts (94), eight M10 Washers (103) and four M10 Nylon Nuts (107).
3. Slide the two OB Tubes-Long (38) into Lever (17), using two M12X30mm Bolts (87).
4. Attach the two Pulley Blocks (22) to the Slider Assembly (19), using two M10X85mm Bolts
(88), four M10 washers (103) and two M10 Nylon Nuts (107).
5. Insert the Footplate Support Tube (24) into Bottom Tube-Right (1), using one ￠25 Barbell
Spring Clip (61).
6. Attach the Footplate (25) to the Bottom Tube-Right (1), using Footplate Fixed Tube (26),
two M8X20mm Bolts (96) and two ￠30X￠8.5 Washers (106).
ASSEMBLY INSTRUCTIONS
19
19
