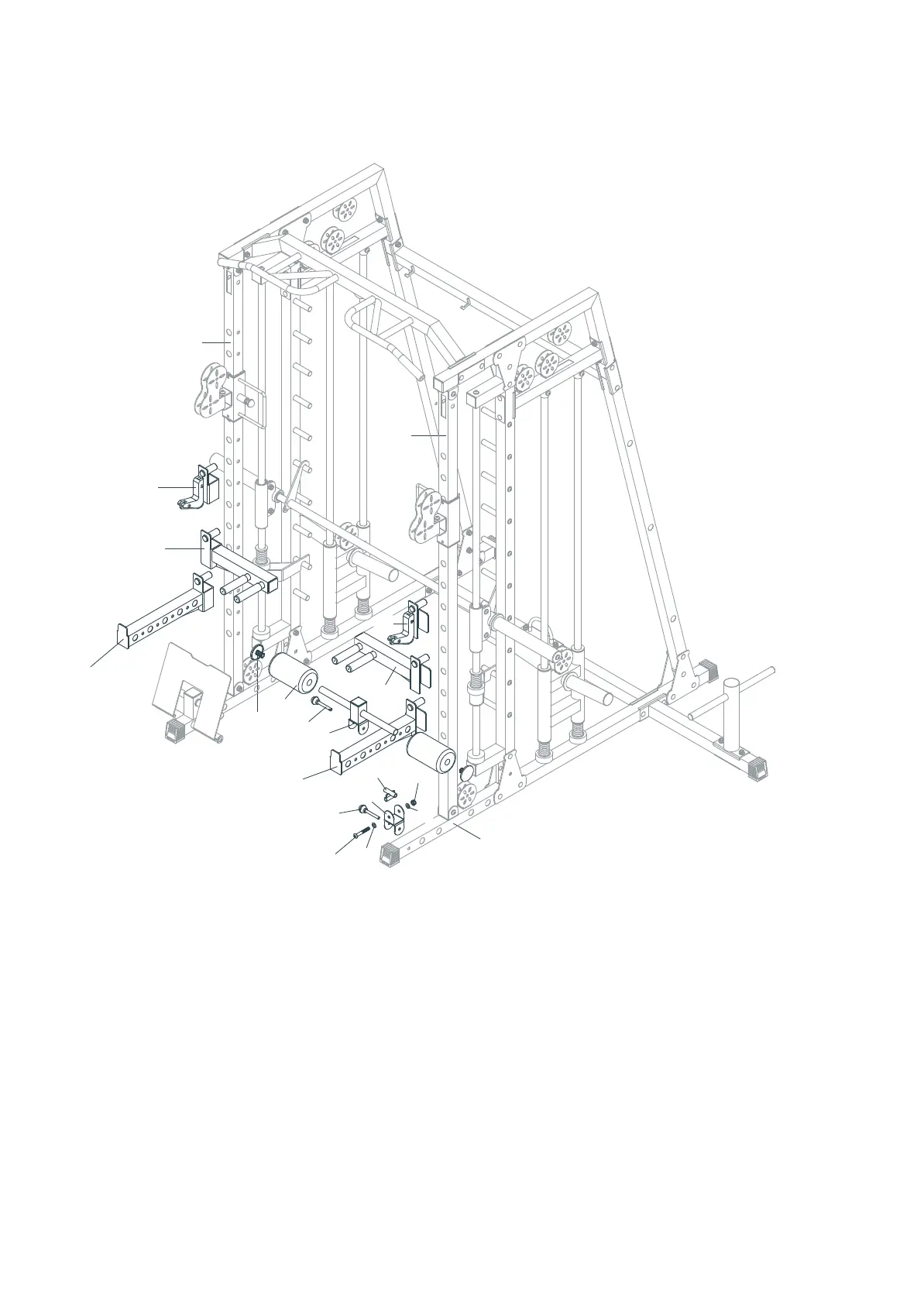

STEP 8
˖
1. Attach the Hook (Right & Left) (36&37), Handle (Right & Left) (34&35), Safety Catch Arm
(Right & Left) (32&33) to the two Support Frames (9).
2. Attach the Foam Tube (29) to the Safety Catch Arm-Left (33), using one Insert Pin-long
(64).
3. Slide the two Leg Foam Rollers (65) and two 25mm Round End Plugs (84) into Foam Tube
(29).
4. Attach the Reverse U (40) to the Bottom Tube-Left
(2), using one Insert Pin-long (64).
5. Attach the Reverse Bushing (39) to the Reverse U (40), using one M10X70mm Bolt (90),
two M10 Washers (103) and one M10 Nylon Nut (107).
