FEIERDUN FOR01 - Step 9: Install Fixed Tubes and Weight Plate Frames

-12-

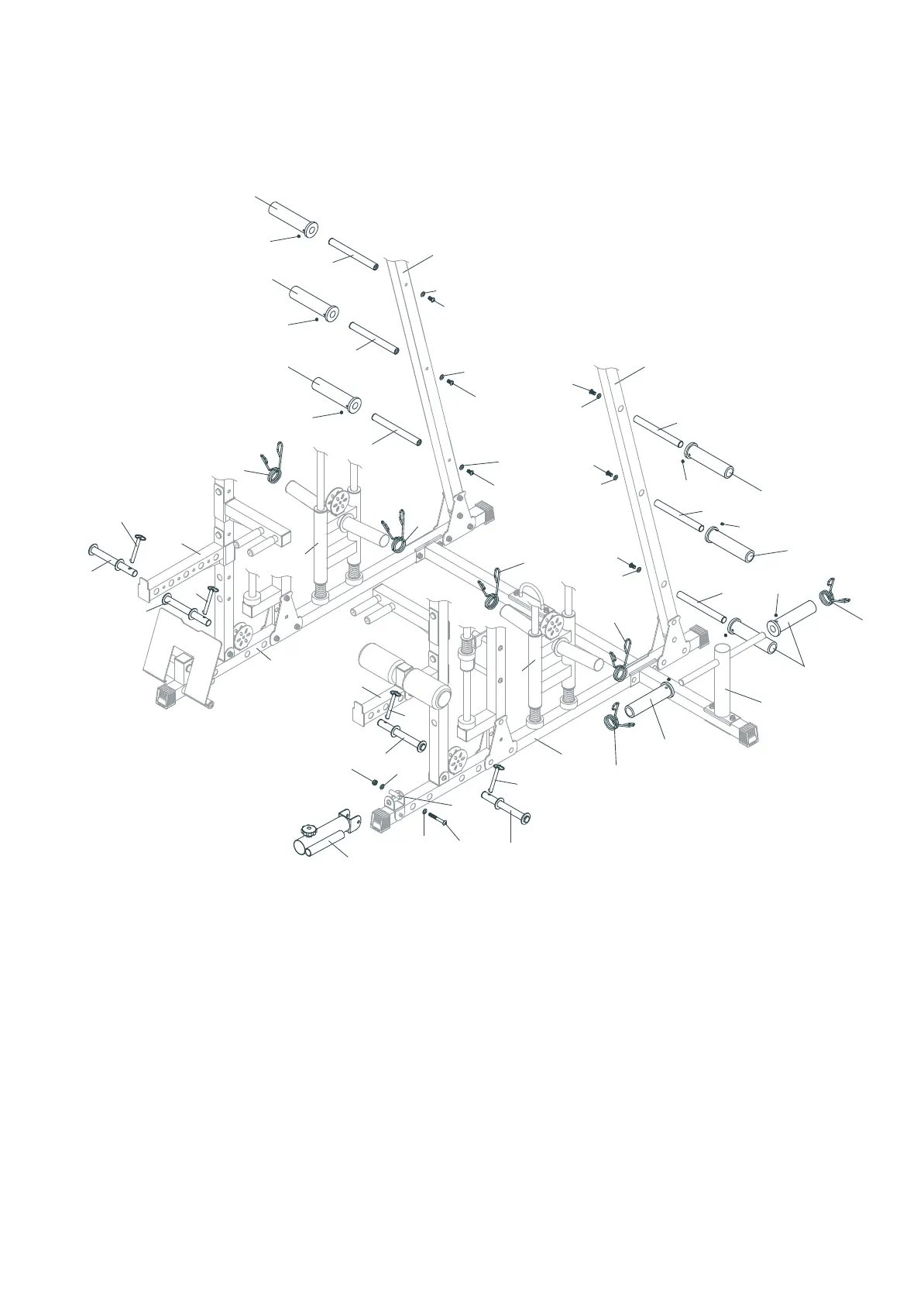

STEP 9˖
1. Insert the four Fixed Tubes (23) into Bottom Tube (Right & Left) (1&2) and Safety Catch
Arm (Right & Left) (32&33), using four Insert Pins-short (54).
2. Attach the Reserve Tube (41) to the Reverse Bushing (39), using one M10X80mm Bolt
(89), two M10 Washers (103) and one M10 Nylon Nut (107).
3. Insert the six Weight Plate Frames (small) (21) into Rear Upright Frame (Right & Left)
(6&7), using six M10X15mm Bolts (95) and six M10 Washers (103).
4. Slide the eight OB Tubes (short) (71) into six Weight Plate Frames (small) (21) and Side
Weight Plate Frame (18), using eight M8X10mm Screws (100).
5. Slide the six ￠50 Barbell Spring Clips (60) into two OB Tubes (short) (71) and two Weight
Plate Frames (13).
ASSEMBLY INSTRUCTIONS
2
33
32
54
54
54
54
23
23
23
23
41
1
89
95
95
95
95
95
95
103
103
103
103
103
103
71
103
103
107
71
71
71
71
71
71
21
21
21
21
21
21
60
60
60
60
60
60
13
13
7
6
100
100
100
100
100
100
39
18
