FEIERDUN FOR01 - Assembly Instructions; Step 1: Assemble Base Components

46
99
99
98
98
103
103
103
103
107
107
107
107

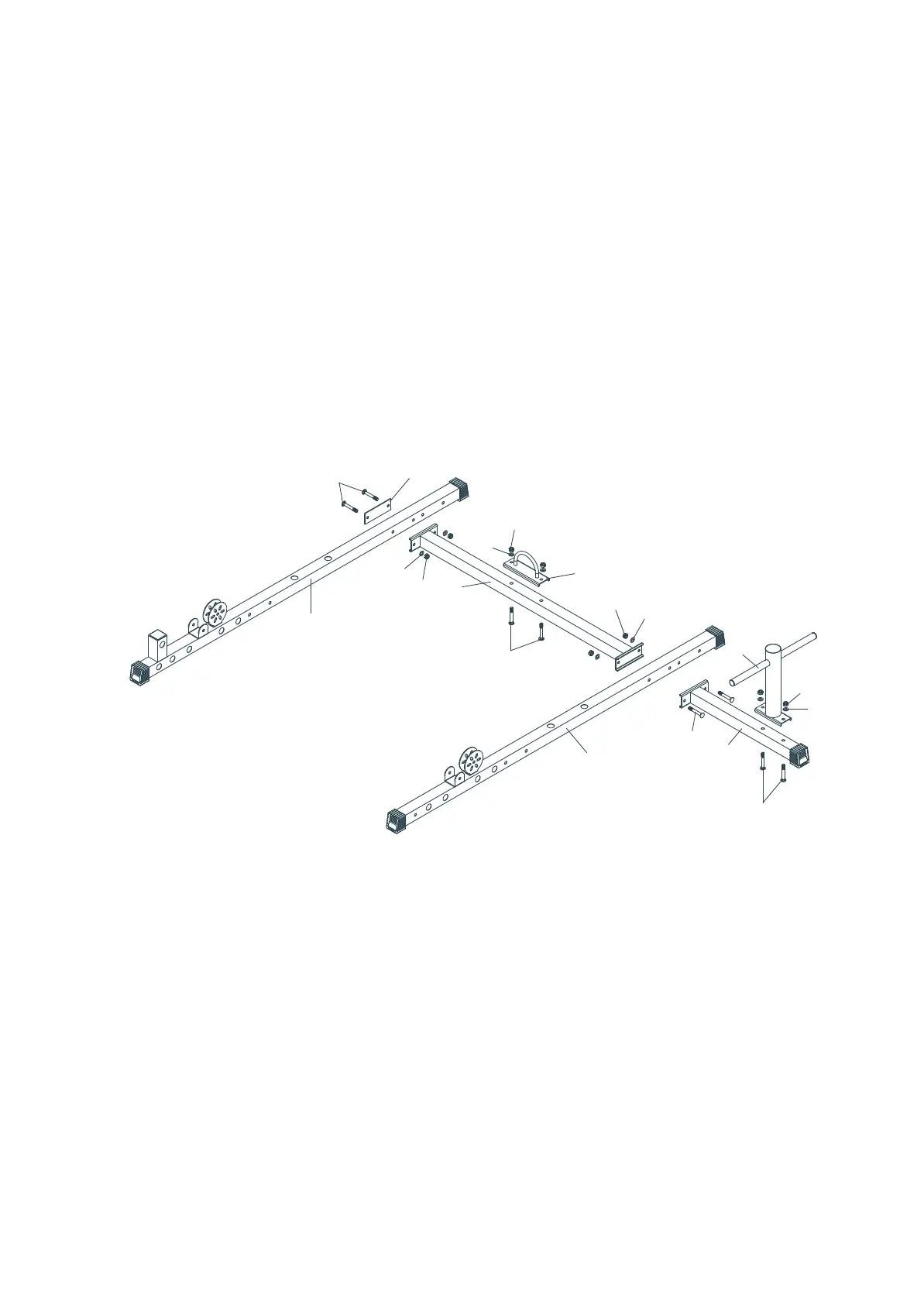

STEP 1˖
1. Attach the Handle (46) to the Bottom Connection Tube (4), using two M10X65mm Carriage
Bolts (99), two M10 Washers (103) and two M10 Nylon Nuts (107).
2. Attach the Side Weight Plate Frame (18) to the Side Bottom Tube (3), using two
M10X65mm Carriage Bolts (99), two M10 Washers (103) and two M10 Nylon Nuts (107).
3. Attach the Side Bottom Tube (3), Bottom Connection Tube (4) and Conne
ct Plate (140mm)
(49) to the Bottom Tube (Right & Left) (1&2), using four M10X70mm Carriage Bolts (98),
four M10 Washers (103) and four M10 Nylon Nuts (107).
-4-
ASSEMBLY INSTRUCTIONS
2
1
3
4
18
49
