Feig Electronic cVEND plug User Manual

Installation
cVEND plug
FEIG ELECTRONIC GmbH
Page 6 of 24
cVEND plug - User manual.docx

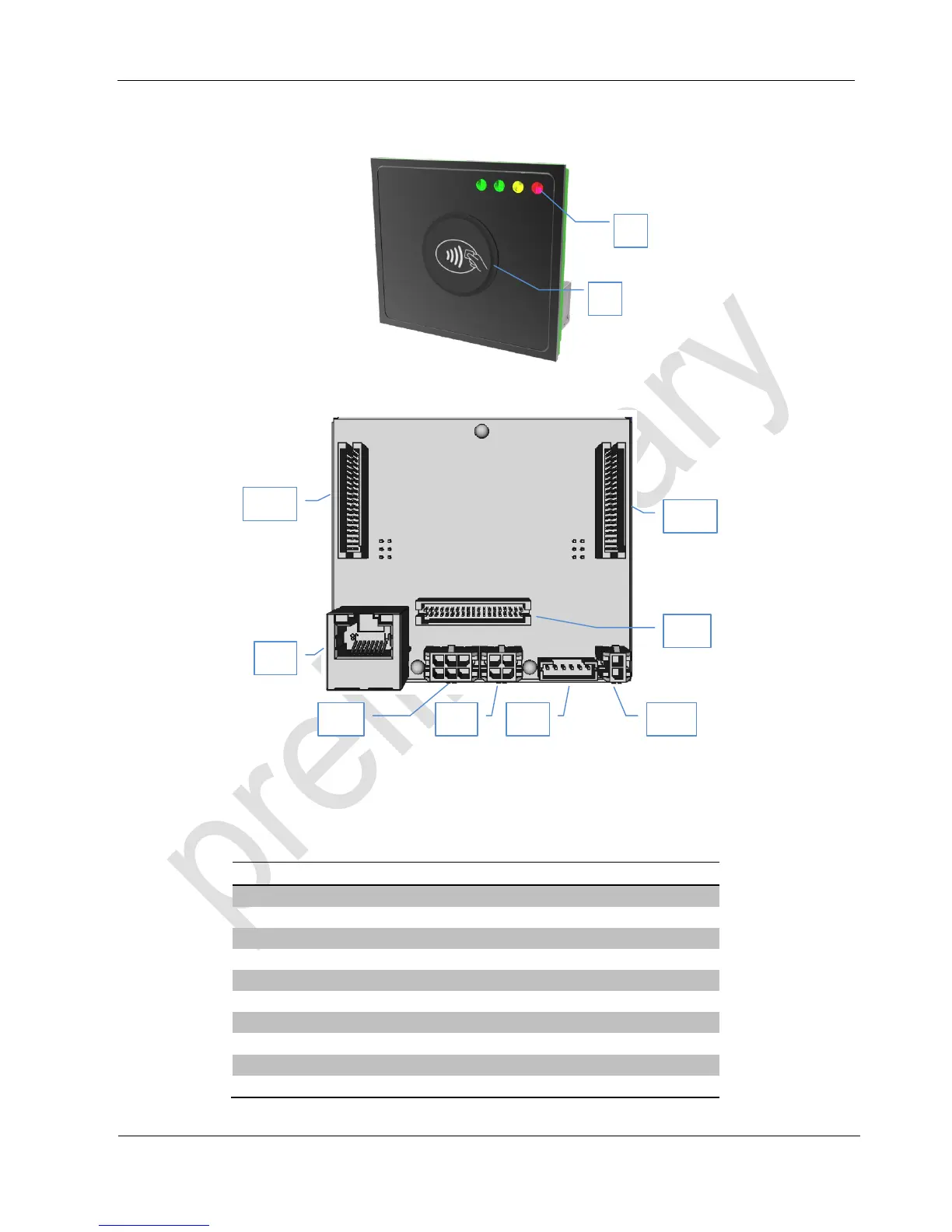

Fig. 1: cVEND plug front view - not installed
Fig. 2: cVEND plug rear view - not installed
Table 1: Interfaces and connectors
Label
Description
1
LEDs (4 x green, 1 x yellow, 1 x red)
2
From outside visible, illuminated plastic dome “Plug”
X1
Ethernet Interface (10 / 100 Base-T network port)
X2
USB Device Interface
X3
RS232 V.24 (UART#1) Interface
X4
RS232-LVTTL (UART#0) Interface
X5
Power Supply 5V DC
X6
Connector for RGB Display (cVEND plug flex only)
X11
Connector for SAM / SD-Card Extension Board
X12
Connector for Auxiliary Interfaces
1
2
X11
X2
X1
X6
X12
X4
X5
X3
