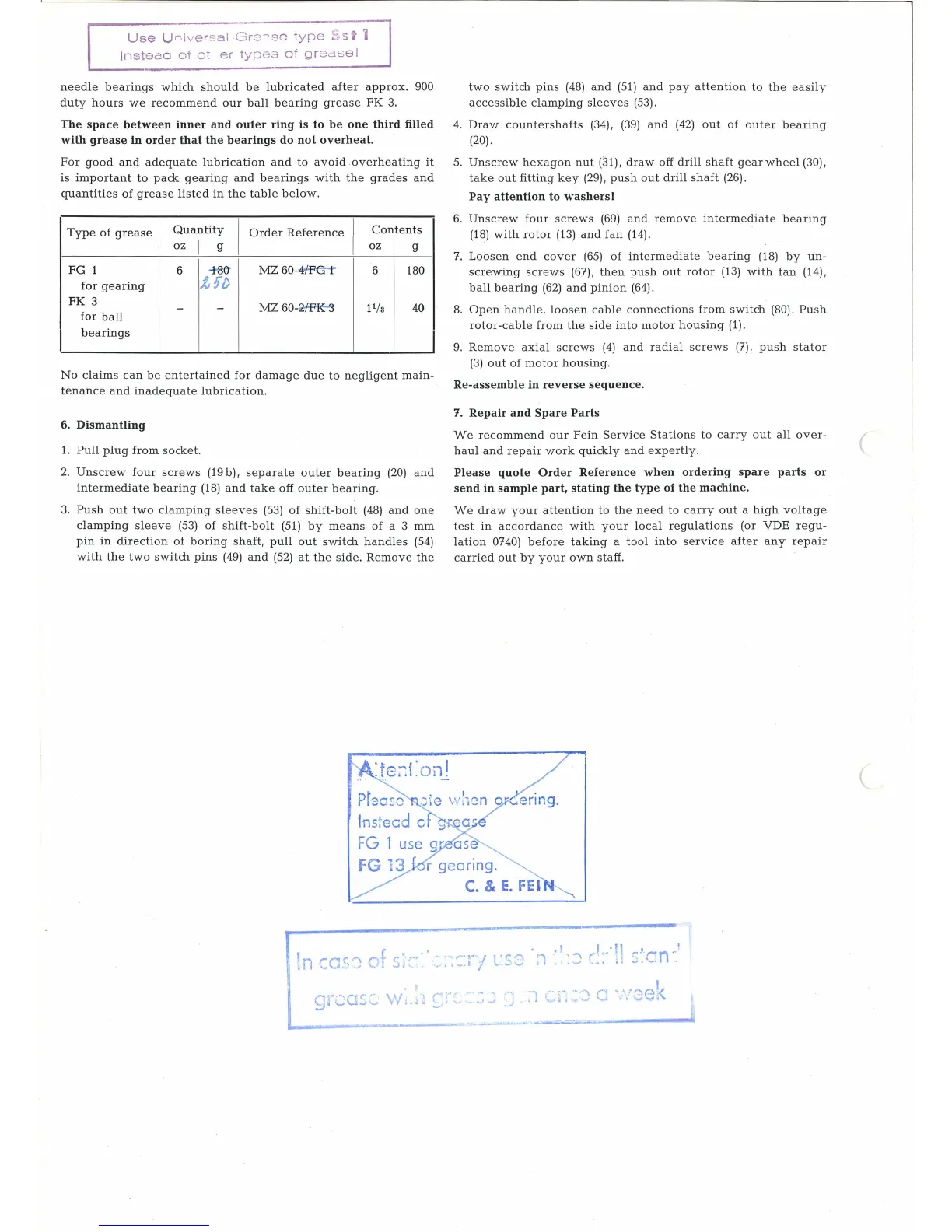

Use Universal Gro~se type Sst 1
Inste ad o f ot er typea of grease I
needle bearings which should be lubricated after approx. 900
duty hours we recommend our ball bearing grease FK 3.
The space between inner and outer ring is to be one third filled
with gr~ase in order that the bearings do not overheat.
For good and adequate lubrication and to avoid overheating it
is important to pack gearing and bearings with the grades and
quantities of grease listed in the table below.
Type of grease
Quantity
I
Order Reference
I
Contents
oz
I
g oz
I
g
FG 1
6
+8 (7
MZ 60- 4f.F e-1."
6
180
for gearing
tf{)
FK 3
MZ60 ..%f~
11 /a
40
-
-
for ball
bearings
No claims can be entertained for damage du e to negligent main-
tenance and inadequate lubrication.
6. Dismantling
1. Pull plug from socket.
2. Unscrew four screws (19b), separate outer bearing (20) and
intermediate bearing (18) and tak e off out er bearing .
3.
Push out two clamping sleeves (53) of shift-bolt (48) and on e
clamping sl eeve (53) of shift-bolt (51) by means of a 3 mm
pin in direction of boring shaft, pull out switch handles (54)
with the two switch pins (49) and (52) at the side. Remove the
Pr8a::c
lns~ead c ~
FG 1 use gr-
FG 13
• I
two switch pi ns (48) and (51) and pa y attention to t he ea sily
accessible clamping sleeves (53).
4. Draw countershafts (34). (39) and (42) out of outer b ea r in g
(20).
5. Unscrew h ex agon nut (31). dra w o ff dr ill s haft gear w hee l (30),
take out fitting ke y (29), push out drill shaft (26) .
Pay attention to washers!
6. Unscrew four screws (69) and remo ve intermediate b ear ing
(18) with rotor (13 ) and fan (14).
7. Loosen end co ve r (65) of intermedi ate bearing (18) by un-
scr e wing scr e ws (67), then push o ut rotor (13) with fan (14).
ball be aring (62) and pinion (64) .
8.
Open handle, loosen cable connections from switch (80). Push
rotor-cable from the side into motor hou sing (1) .
9. Remove axial s crews (4) and radia l screws (7). push sta tor
(3) out of motor housing.
Re-assemble in reverse sequence.
7. Repair and Spare Parts
We recommend our Fein Service Stations to carr y out a ll ov er-
haul and repair wo rk quickly and expertl y.
Please quote Order Reference when ordering spare parts or
send in sample part, stating the type of the machine.
We draw y our a tte ntion to th e ne ed to carry out a high v olt age
te st in ac cordanc e w ith y our local regulations (or VDE re gu-
lation 0740) before taking a tool into se r vice after any repair
carried out by y our own staff .
