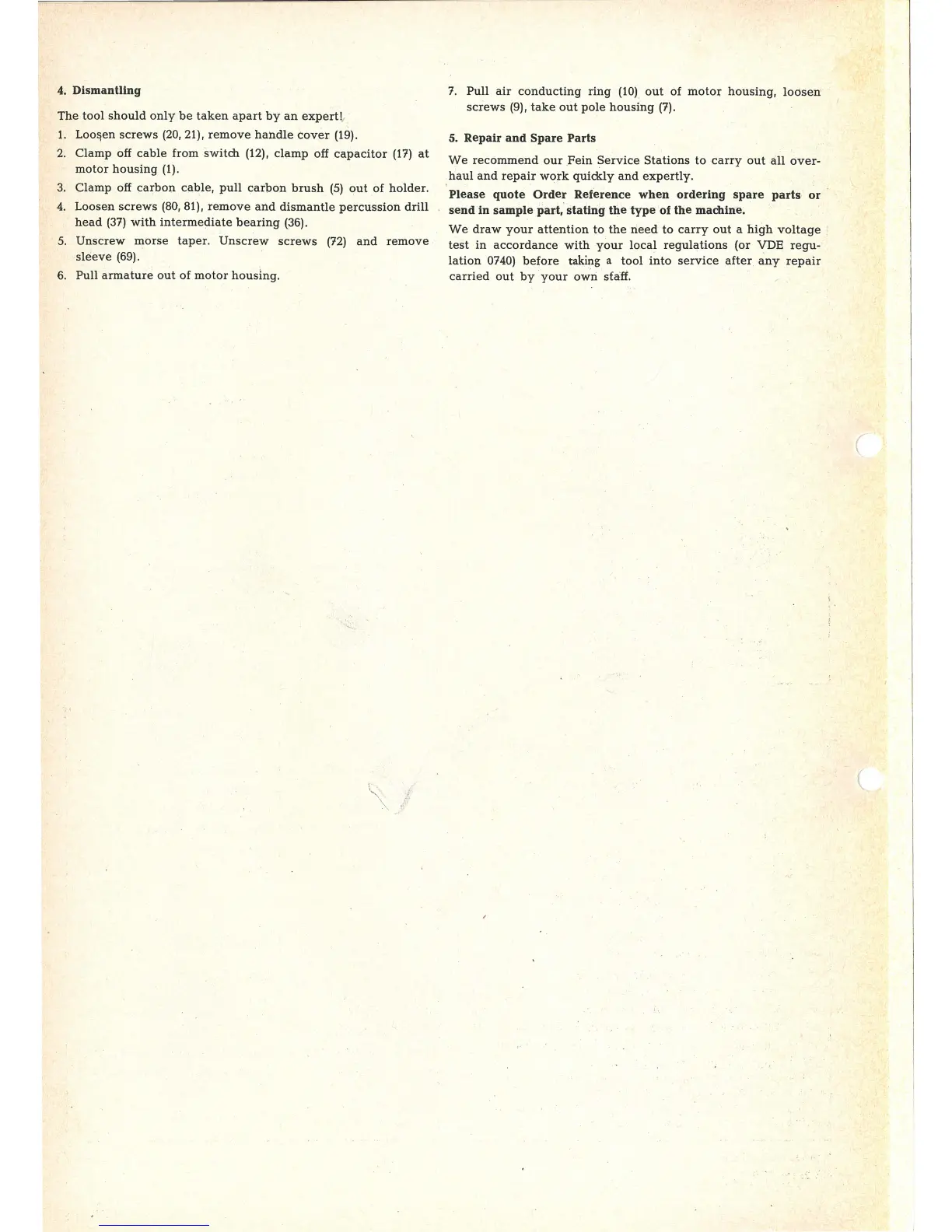

4. Dismantling
The tool should only be taken apart by an expert! ,
1. Loo!jen screws (20, 21), remove handle cover (19) .
2. Clamp off cable from switch (12), clamp off capacitor (17) at
motor housing (1) .
3.
Clamp off carbon cable, pull carbon brush (5) out of holder .
4.
Loosen screws (80, 81). remove and dismantle percussion drill
head (37) with intermediate bearing (36).
5.
Unscrew morse taper . Unscrew screws (72) and remove
sleeve (69) .
6. Pull armature out of motor housing .
7. Pull air conducting ring (10) out of motor housing, loosen
screws (9), take out pole housing (7) .
5. Repair and Spare Parts
We recommend our Fein Service Stations to carry out all over-
haul and repair work quickly and expertly .
'Please quote Order Reference when ordering spare parts or
send
in sample part.' stating the type of the machine. ·
We draw your attention to the need to carry out a high voltage
test in accordance with your local regulations (or VDE regu-
lation 0740) before taking a tool into service after . any repair
carried out by your own sfaff.
(
(
