DELIVERY
1. HDMI 2.0 audio extractor
2. Power supply 5V 1A
3. this manual

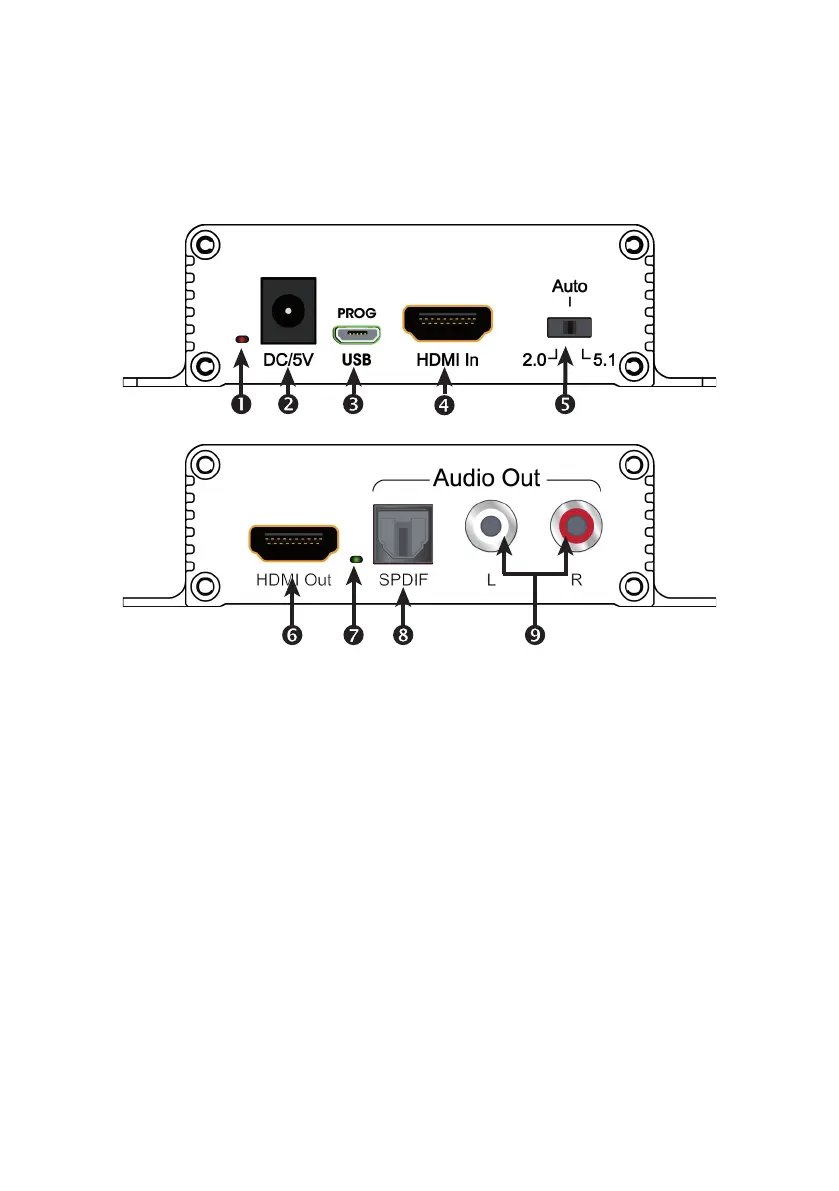

CONNECTIONS
LED operation indicator, lights up when the power supply is active
Connection for 5V power supply unit for power supply
USB-micro connection for service purposes
HDMI In: Signal input, e.g. Bluray player, satellite receiver, game console
Audio EDID switch: 2.0 (stereo) | Auto (bypass) | 5.1 (Dolby Digital or DTS)
HDMI out: Signal output, e.g. for TV, monitor, projector or AV receiver
LED indicator, lights up when HDMI output is active
SPDIF audio digital output (Toslink)
Analogue audio output stereo (Cinch L + R)
EDID switch
A connected TV, AV receiver or projector signals its capabilities (e.g. supported picture resolution & sound format) via EDID. If
you are using one stereo audio device and one 5.1 audio device, the source will normally only provide stereo audio. This is often
not desired. With the EDID switch on the VAX00100 you can manipulate the mode and thereby set it manually:
2.0 The HDMI source delivers stereo sound, which is available at the two RCA sockets
Auto bypass, /no change, output of 2.0 /5.1 / 7.1 sound possible
5.1 The HDMI source provides 5.1 sound (if available) through the Toslink output
