felfil evo - Mounting #8: PCB and Display Assembly

Complete Kit Manual
17
Tools
Small Parts

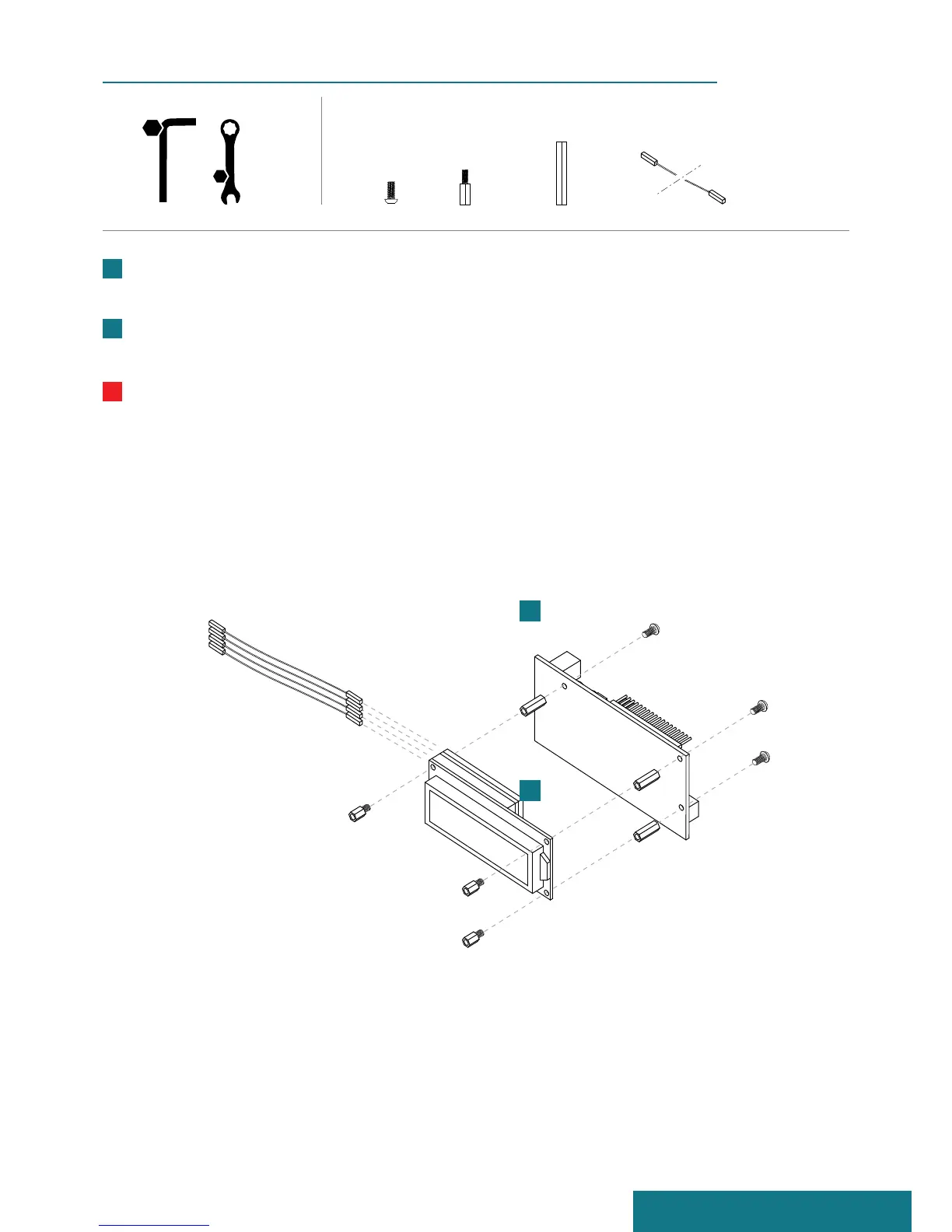

Fix the PCB E3 whit the display E4
Insert 4X electric wires in the display E4
Attention: if you cannot see anything on the LCD monitor, or it has a very low contrast,
please regulate contrast by turning the screw on the back. [see the next page to identifi-
cate the screw]
Mounting #8
E4
E3
2
6
3X
3X 3X 4X
