Fellowes Galaxy 500 - Steps to Bind; Select Comb Diameter; Select Punch Profile; Test Punching

ENGLISH

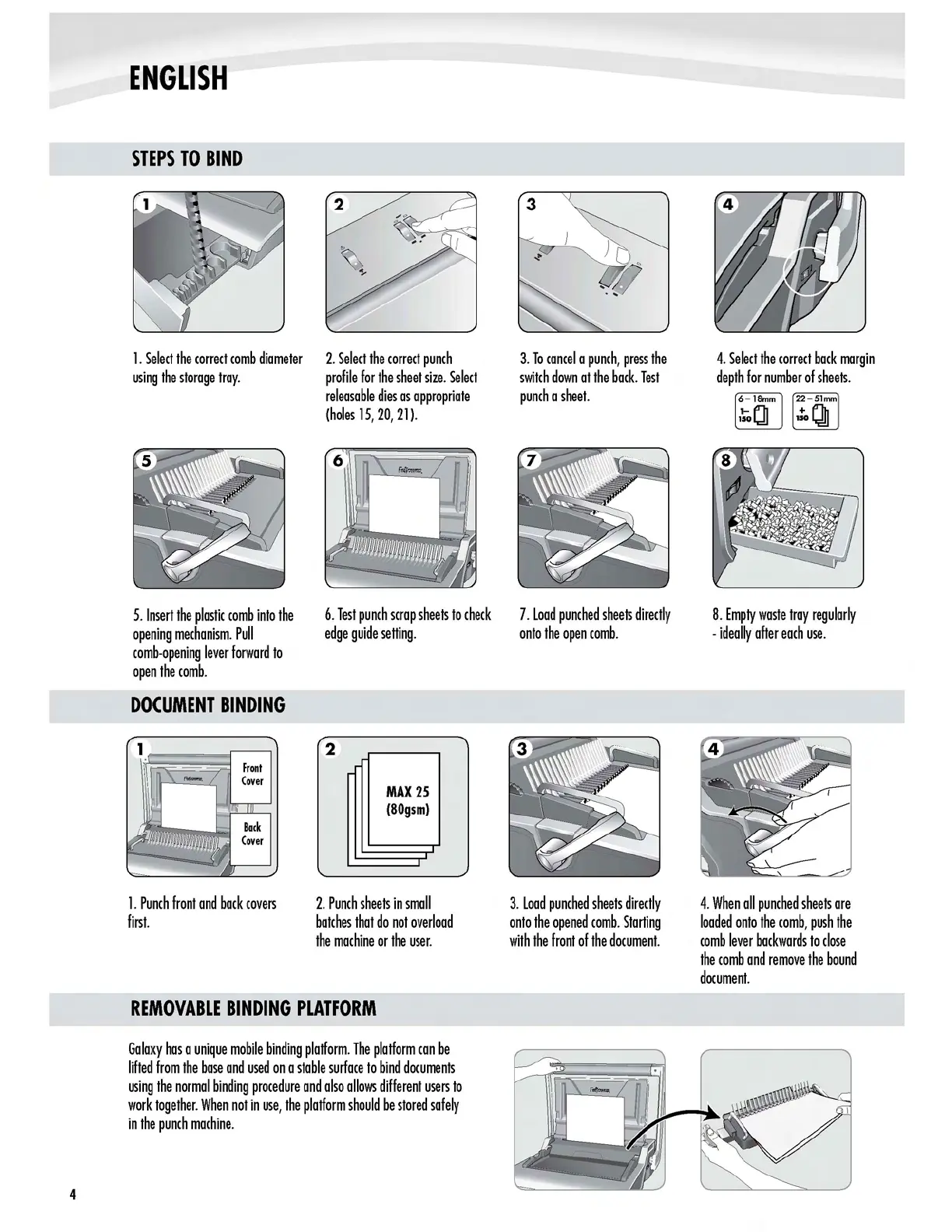

STEPS TO BIND
2
3
2. Select the correct punch 3. To cancel a punch, press the
profile for the sheet size. Select
switch down at the back. Test
releasable dies as appropriate punch a sheet.
(holes 15,20,21).
1. Select the correct comb diameter
using the storage tray.
4. Select the correct back margin
depth for number of sheets.
5. Insert the plastic comb into the
6. Test punch scrap sheets to check
opening mechanism. Pull
edge gUide selling.
comb-opening lever forward to
open the comb.
DOCUMENT BINDING
7. load punched sheets directly
onto the open comb.
8. Empty waste tray regularly
- ideally after each use.
2
Front
(over
MAX2S
(80gsm)
Buck
(over
1. Punch front and back covers 2. Punch sheets in small
first. batches that do not overload
the machine or the user.
REMOVABLE BINDING PLATFORM
Galaxy has a unique mobile binding platform. The platform can be
lifted from the base and used on a stable surface to bind documents
using the normal binding procedure and also allows different users to
work together. When not in use, the platform should be stored safely
in the punch machine.
3. load punched sheets directly
onto the opened comb. Starting
with the front of the document.
4. When all punched sheets are
loaded onto the comb, push the
comb lever backwards to close
the comb and remove the bound
document.
4
ENGLISH
STEPS TO BIND
I. Select the correct (omb diameter
using the storage tray.
5. Insert the plastic (omb into the
opening mechanism. Pull
comb.opening lever forward to
open the comb.
DOCUMENT BINDING
I. Punch front and back covers
first.
2
2. Sele<lthe correct punch
profile for the sheet size. Select
releasable dies as appropriate
(holes IS, 20, 21).
6. Test punch scrap sheets to (heck
edge guide setling.
2
MAX 25
(80gsm)
2. Punch sheets in small
batches that do not overload
the machine or the user.
3
3. To (ancel a punch, press the
switch down at the back. Test
punch a sheet.
7. load punched sheets dire<lly
onto the open (omb.
3. Load punched sheets directly
onto the opened <ambo Starting
with the front of the document.
4. Sele<lthe correct back margin
depth for number of sheets.
[~ar] [~-~nvnl
8. Empty waste tray regular~
. ideal~ after each use.
4. When all punched sheets are
loaded onto the comb, push the
comb lever backwards to dose
the comb and remove the bound
document.
4
REMOVABLE BINDING PLATFORM
Galaxy has a unique mobile binding platform. The platform can be
lifted from the base and used on a stable surface to bind documents
using the normal binding procedure and also allows different users to
work together. When not in use, the platform should be stored safe~
in the punch machine.
