CAPABILITIES
IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!
When punching;
- always ensure the machine is on a stable surface
- test punch scrap sheets and set the machine before punching final documents
- remove staples and other metal articles prior to punching
- never exceed the machines quoted performance
When binding;
- the removable binding platform can be used away from the punch unit
- always ensure the removable binding platform is on a stable surface
Keep the machine away from heat and water sources.
Never attempt to open or otherwise repair the machine.
Plug the machine into an easily accessible socket.
Note - this machine features a thermal cut-out device which activates when the
machine is overheated during use. It will automatically reset when the machine
is safe to operate.
2
Punching Capacity
Paper sheets
75g / 20lb 25 sheet
Transparent Covers
100-200 micron / 4-8 mil 4 sheet
200+ micron / 8+ mil 3 sheet
Other Standard Covers
160-270g / 40-60lb 4 sheet
270+g / 60+ lb 3 sheet
Binding Capacity
Max comb size 2”/51mm
Max document (75g) 500 sheet
Technical Data
Paper dimensions US letter, US cover
Punching slots 21
Releasable dies 3 dies (15, 20, 21)
Adjustable back margin yes - 2 positions
(min = .098”/2.5mm, max = .179”/4.5mm)
Slot pitch
9
/16” / 14 mm
Adjustable edge guide yes
Waste tray capacity 3000 sheets
Voltage 120V 60 Hz
Motor wattage 160W 0.8A
Duty Cycle 30 mins on / 30 mins off
Net weight 13.5 kg / 29.8 lb
Dimensions (HxWxD) 6.5” x 19.6” x 17.7” / 165 x 498 x 451mm
Please read before use. Please keep for future reference
ENGLISH

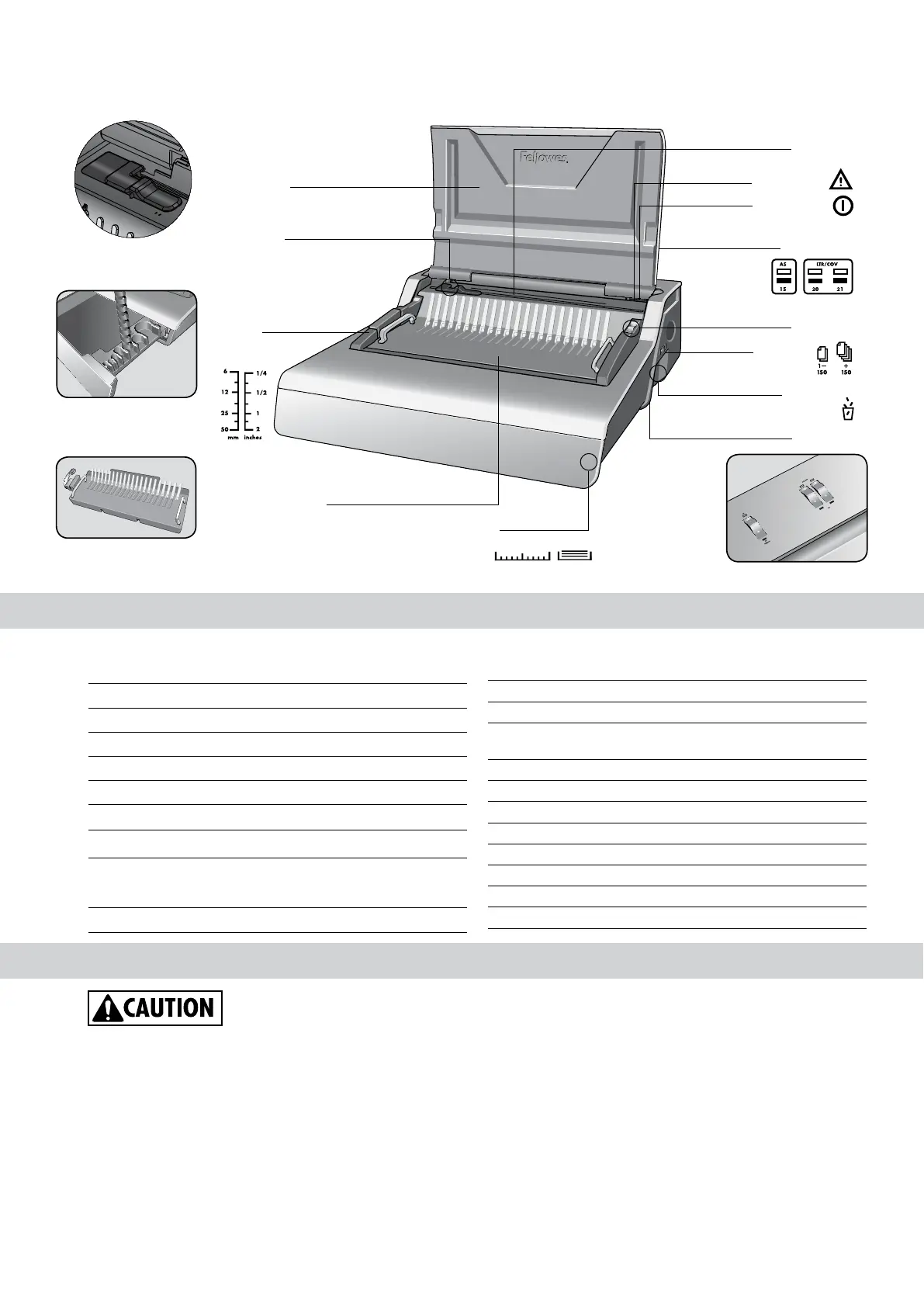

Comb storage and
Document measure
Document
support (lid)
Adjustable
edge guide
Document
measure and
storage tray
Waste tray
(dual access)
Comb
opening
lever
Paper entry
Punch die selection
Back margin
adjustment
Carry handle
Removable platform
(binding cassette)
Removable platform
(binding cassette)
Releasable dies
Power on neon
Overload neon
Punch button
Edge Guide
