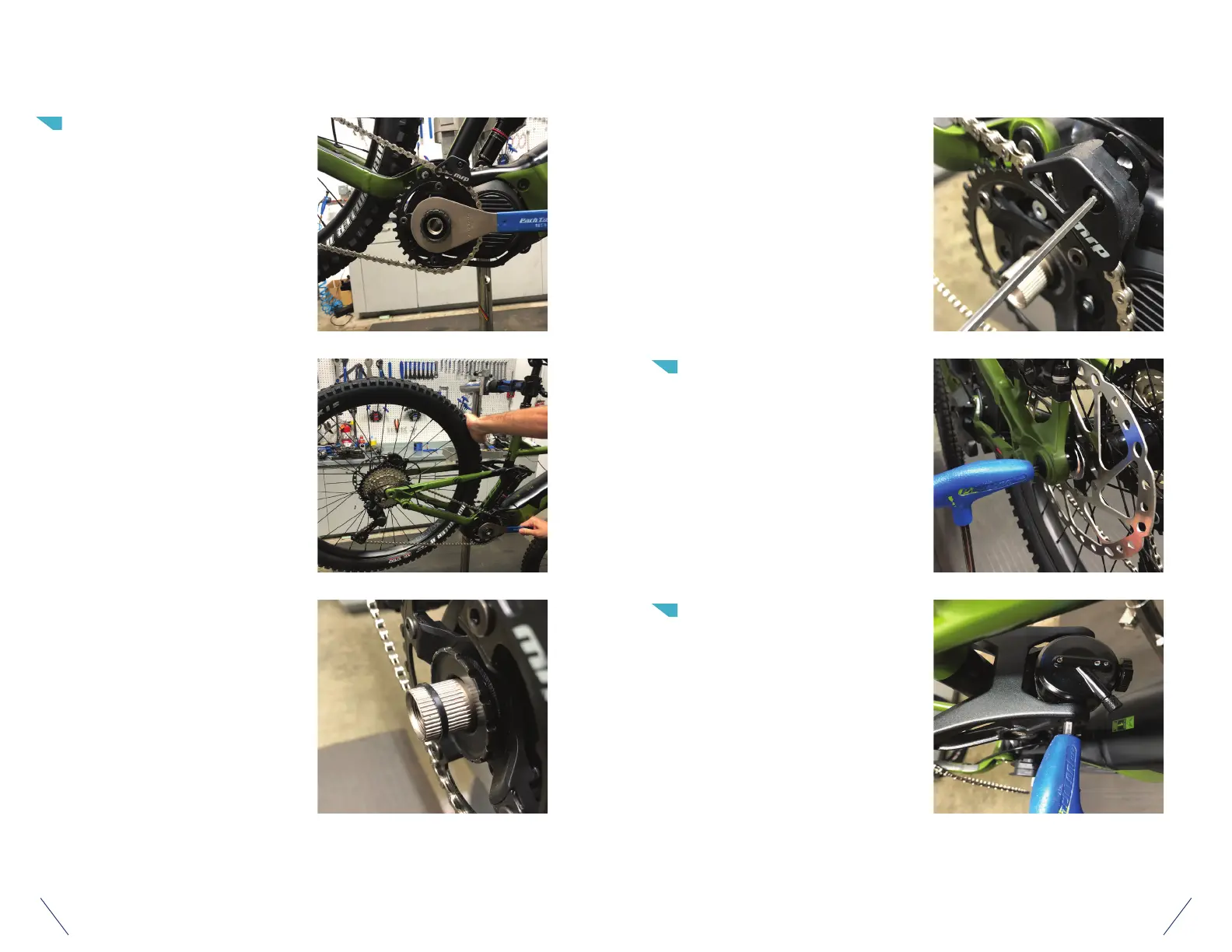

STEP 4 UPPER LINK REMOVAL
Start by removing the trunnion bolts
using a 6mm Allen and rock the
shock forward and out of the way.
Loosen chain guide and remove
chain ring.
STEP 2
Use Shimano TL-FC 39 tool and
BBT-9 to remove chain ring.
STEP 3
Remove rear wheel using 6mm
Allen.
Hold rear wheel and turn wrench
clockwise to remove.
Note small spacer on spindle. Keep
with chain ring lock ring so as not
to lose it.
