01
REDEMPTION

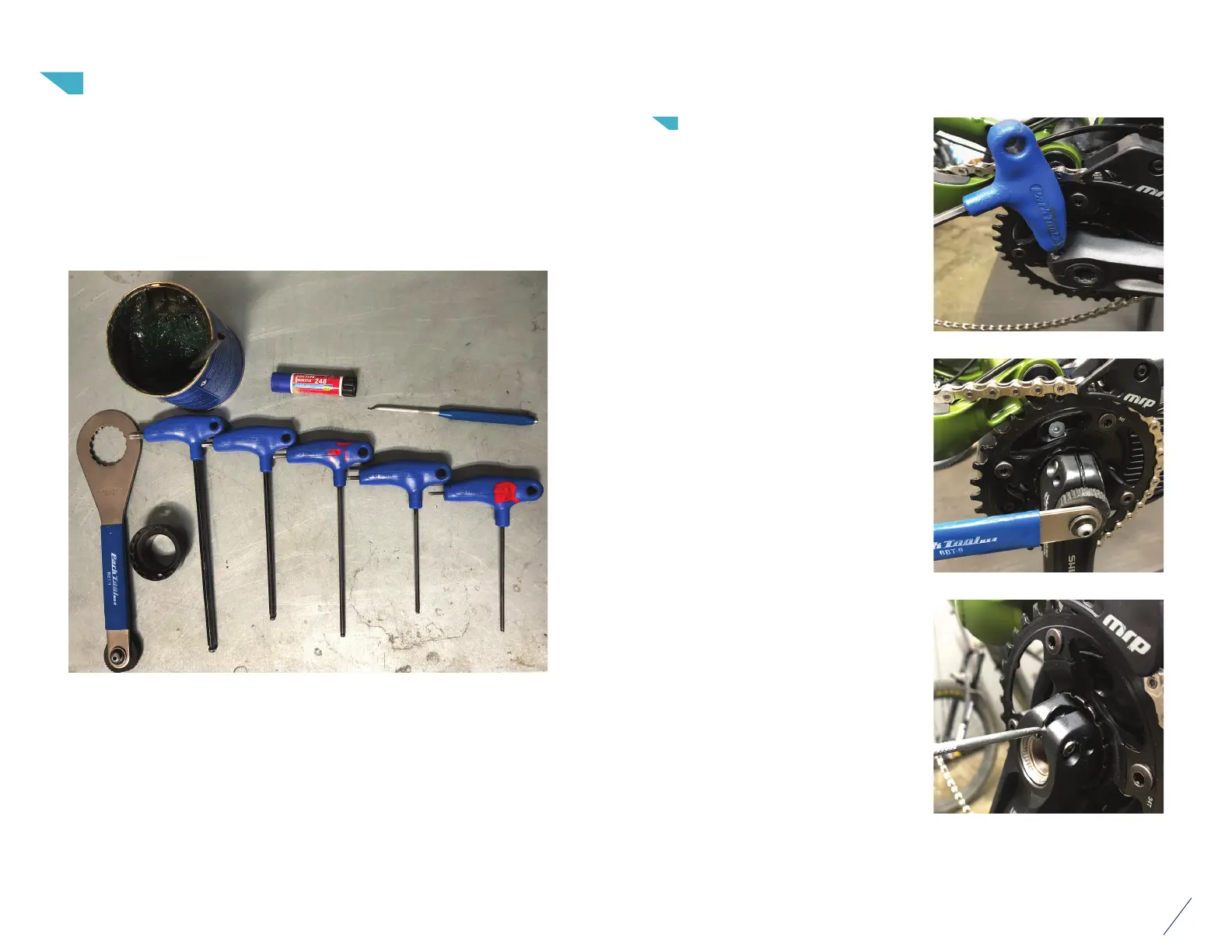

Required Tools:
— Park Tools BBT-9
— Shimano tool TL-FC 39 (to remove chain ring)
— Allen wrenches 8mm, 6mm, 5mm, 4mm, 3mm
— Small pick
— Grease
— Blue Loctite
STEP 1
Using 5mm Allen, loosen the pinch
bolts holding the drive side crank
arm on.
Use BBT-9 tool to remove crank
arm pre-load screw.
Use pick to release crank arm
safety clip.
Before you begin work on your Redemption's suspension, be sure to clean
the bike thoroughly, paying extra attention to remove any and all dirt,
grease, and grime from the suspension components using non-abrasive
cleaning agents. Once you are sure that the bike is clean and free of
contaminants, complete the following steps to service your Redemption's
suspension.
To Next Page
