STEP 8
Torque bolts to following specifications
— Seat stay - 10NM
— Chain stay - 10NM
— Main pivot - 14NM
— Link pivot - 12NM
— Trunnion bolts - 10NM
— Follow Shimano specifications for chain
ring and crank arm
SHOCK SETUP
STEP 9
Congratulations! You are now ready to continue hours
of enjoyment aboard your Felt Redemption.
CONTACT
INFORMATION
Felt BICYCLES
30452 ESPERANZA
RANCHO SANTA MARGARITA, CA 92618
USA
FELTBICYCLES.COM
Time Sport International SAS
725 rue Aristide Berges- Bâtiment Reflex
38340 Voreppe, France

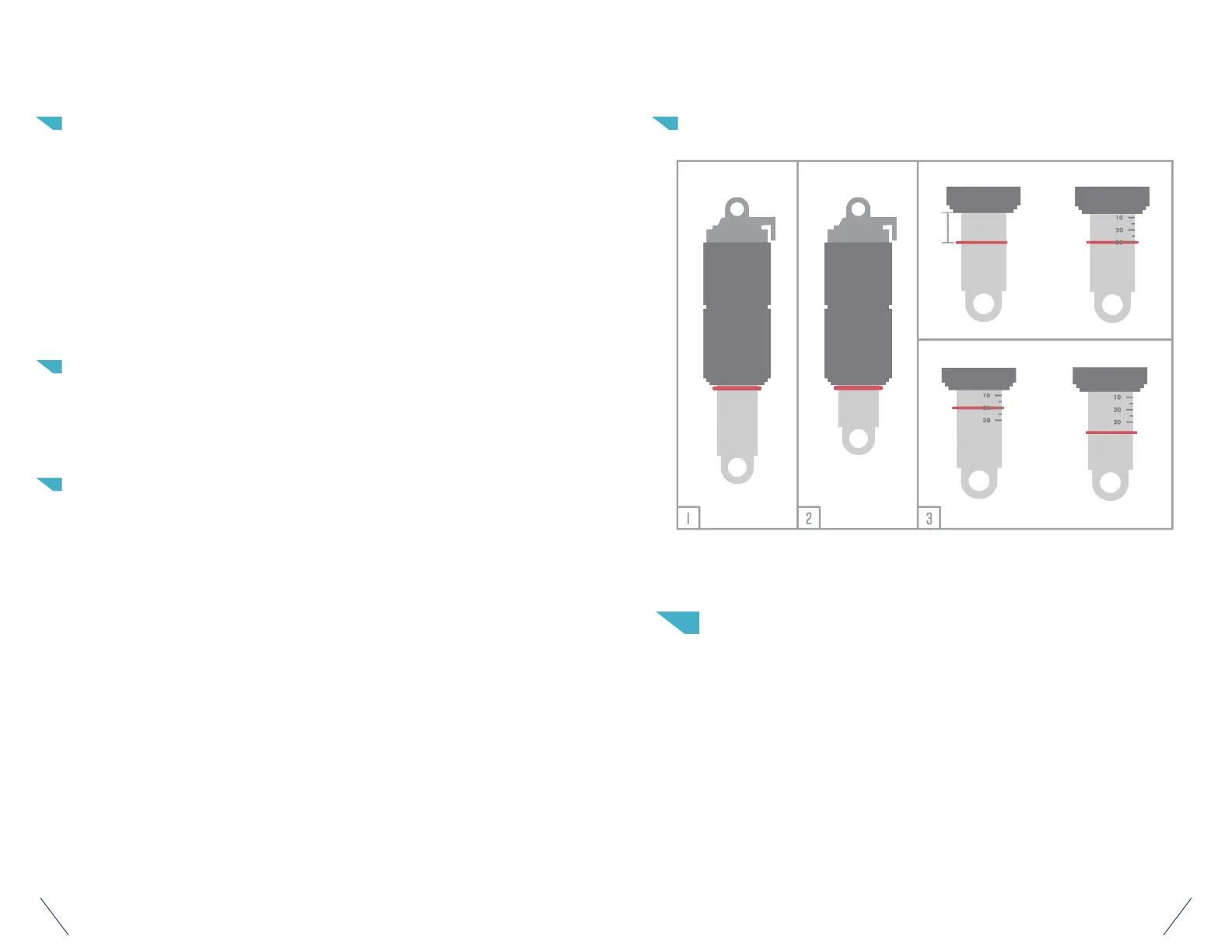

SHOCK SETUP
1. Push the o-ring to the top of the shock shaft.
2. Sit on the bike with the seat at full ride height to compress the shock. Bounce
a few times, then push the o-ring back to the top of the shaft.
3. Gently get off the bike, taking care not to change the position of the o-ring.
On some shock models, the sag gradients will be printed on the shaft. In this
case, simply read your sag percentage as it is printed on the shock shaft. If
there are no sag gradients, measure the distance of the o-ring from the top of
the shaft. To achieve 30% sag, the o-ring should be 20mm from the top of the
shaft. If there is too much sag (>30%) add air pressure, if there is not enough
sag (<30%), reduce air pressure.
4. Repeat process until desired sag is achieved.
CORRECT
NOT CORRECT
OR
20MM
+ PRESSURE- PRESSURE
To Next Page
