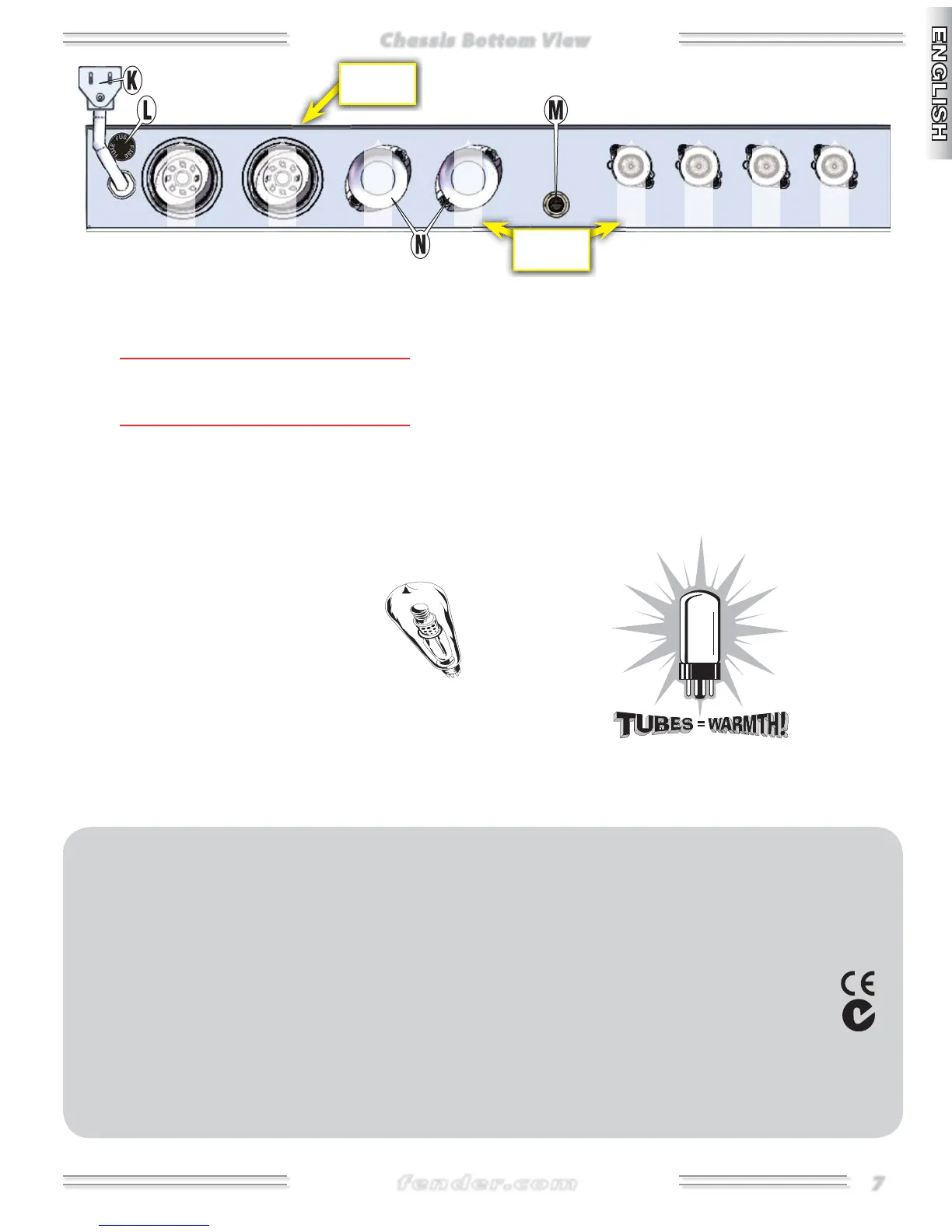

K. POWER CORD Connect to a grounded outlet in accordance
with the voltage and frequency specifications shown on the
amplifier information label.
♫
The amplifier information label is located inside the amplifier
cabinet on the left-hand side, when viewed from the rear of
the amplifier.
L. FUSE Protects the amplifier from electrical faults. Replace
a blown fuse only with the type and rating specified on the
amplifier information label.
M. FOOTSWITCH JACK Plug the included footswitch in here to
enable remote on-off switching of the Vibrato effect.
N. FENDER® GROOVE TUBES® Your new Fender amplifier
comes equipped with the highest quality tubes available
sourced from various manufacturers
worldwide. Because of occasional irregularities
in supply, the specific tube type used in each
amplifier is subject to change without notice.
When replacing output tubes, please note the
specific tube markings on the original tubes
factory supplied with your amplifier. For
example, L output tube types used by Fender include, but
are not limited to: LGC; LWXT; LGE; etc. The installation
of a different type may require significant adjustment by
a qualified technician to avoid a reduction in amplifier
performance and tube life span.
Additionally, Fender Groove Tubes tests and sorts many of
our output tubes based on their measured performance. The
sorted tubes are labeled with a fine rating of – and may also
be labeled with a coarse rating color of BLUE, WHITE or RED. A
pair of matched output tubes with the same fine rating (and
coarse rating, if applicable) as the original tubes will be the
perfect replacement. However, replacement tubes with a fine
rating within one number of the original tubes can be used
without re-biasing the amplifier.
If you have questions or concerns, please contact your Fender
dealer or authorized service center.
Specifications
TYPE: PR 1169
PART NUMBERS: 8141500000 (120V, 60Hz) 8141501000 (110V, 60Hz) TW 8141503000 (240V, 50Hz) AUS 8141504000 (230V, 50Hz) UK
8141505000 (220V, 50Hz) ARG 8141506000 (230V, 50Hz) EUR 8141507000 (100V, 50/60Hz) JPN 8141509000 (220V, 60Hz) ROK
POWER: REQUIREMENTS: 270W OUTPUT: 40W RMS into 4Ω @ 5%THD, 1kHz
INPUT IMPEDANCE: INPUT 1: 1MΩ INPUT 2: 136kΩ
SPEAKERS: Two 8Ω, 12" Fender® Special Design Weber/Eminence® with AlNiCo magnets (P/N: 0064418000)
TUBES: Two 6L6GC (P/N: 0059778000); Two 5U4GB (P/N: 0030031000); Four 12AX7 (P/N: 0013334100);
FUSE: 100V–120V VERSIONS: F 3A L, 250V 220V–240V VERSIONS: F 1.6A L, 250V
ACCESSORIES (INCLUDED): FOOTSWITCH: 1-button, Vibrato on-off (P/N: 0994049000) DUST COVER: (P/N: 0064428000)
DIMENSIONS: HEIGHT: 20.5 in (52.1 cm) WIDTH: 24.5 in (62.2 cm) DEPTH: 9.0 in (22.9 cm) WEIGHT: 53 lb (24 kg)
Product specifications are subject to change without notice.
