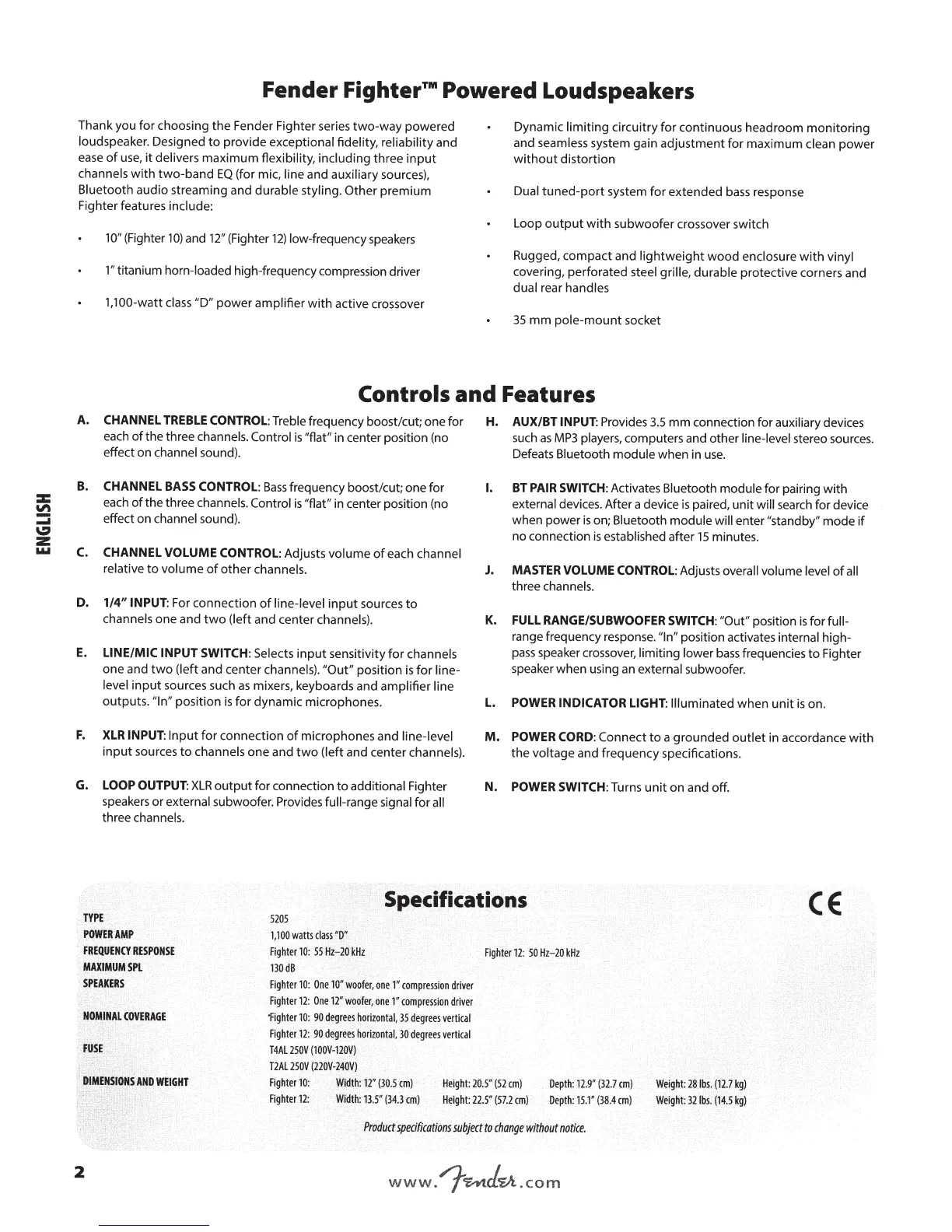

Fender Fighter™ Powered Loudspeakers
Thank you
for
choosing
the
Fender Fighter series
two-way
powered
loudspeaker. Designed
to
provide
exceptional fidelity, reliability
and
ease
of
use,
it
delivers
maximum
flexibility, including
three
input
channels
with
two-band
EQ
(formic,
line and
auxiliary
sources),
Bluetooth audio streaming and
durable
styling.
Other
premium
Fighter features
include:
10"
(Fighter
10)
and
12"
(Fighter
12)
low-frequency speakers
1"
titanium
horn-loaded
high-frequency compression driver
1,100-watt class
"D"
power
amplifier
with
active crossover
Dynamic
limiting
circuitry
for
continuous headroom
monitoring
and
seamless
system gain
adjustment
for
maximum
clean
power
without
distortion
Dual
tuned-port
system
for
extended
bass
response
Loop
output
with
subwoofer crossover switch
Rugged,
compact
and
lightweight
wood
enclosure
with
vinyl
covering, perforated
steel grille, durable
protective corners and
dual
rear
handles
35
mm
pole-mount
socket
Controls
and
Features
A.
CHANNEL
TREBLE
CONTROL:
Treble
frequency boost/cut; one
for
each
of
the
three
channels. Control
is
"flat"
in center position (no
effect
on
channel
sound).
B.
CHANNEL
BASS
CONTROL:
Bass
frequency boost/cut;
one
for
each
of
the
three
channels. Control
is
"flat"
in center position (no
effect
on
channel
sound).
C.
CHANNEL VOLUME CONTROL:
Adjusts
volume
of
each
channel
relative
to
volume
of
other
channels.
D.
1/4" INPUT:
For connection
of
line-level
input
sources
to
channels
one and
two
(left
and center
channels).
E.
LINE/MIC
INPUT
SWITCH:
Selects
input
sensitivity
for
channels
one and
two
(left
and center
channels).
"Out"
po
s
ition
is
for
line-
level
input
sources such
as
mixers, keyboards and
amplifier
line
outputs.
"In"
position
is
for
dynamic microphones.
F.
XLR
INPUT:
Input
for
connection
of
microphones
and
line-level
input
sources
to
channe
ls
one
and
two
(left
and center
channels).
G.
LOOP OUTPUT:
XLR
output
for
connection
to
additional
Fighter
sp
ea
ke
rs
or
external subwoofer. Provides
full-range signal
for
all
three
channels.
H.
AUX/BT
INPUT:
Provides 3.5
mm
connection
for
auxiliary
devices
such
as
MP3
players,
computers and other
line-level stereo sources.
Defeats
Bluetooth
module
when in
use.
I.
BT
PAIR
SWITCH:
Activates
Bluetooth
module
for
pairing
with
external
devices. After a device
is
paired,
unit
will
search
for
device
when
power
is
on;
Bluetooth
module
will
enter
"s
tandby"
mode
if
no
connection
is
established
after
15
minutes.
J.
MASTER
VOLUME CONTROL:
Adjusts
overall volume level
of
all
three
channels.
K. FULL
RANGE/SUBWOOFER SWITCH:
"Out"
position
is
for
full-
range frequency response.
"
In
"
position activates
internal
high-
pass
speaker crossover,
limiting lower
bass
frequencies
to
Fighter
speaker when using an
external subwoofer.
L.
POWER INDICATOR LIGHT:
Illuminated
when
unit
is
on.
M.
POWER CORD:
Connect
to
a
grounded
outlet
in accordance
with
the
voltage
and
frequency
specifications.
N.
POWER SWITCH:
Turns
unit
on
and
off.
Specifications
CE
TYPE
P()WERAMP
.
FREQUENCY
RESPONSE
MAX
I
MUMSPL
SPEAKERS
NOMINAL
COVERAGE
FUSE
"
'''>
-
{_
DIMENSIONS
AND
WEIGHT
2
52
05
1,100
watts
class
"D"
F
ighter
10:
55
~
H
O
kHz
130dB
Fighter
10:
One
10"
woof
er,
one
1"
compression
driver
Fighter
12:
One
12
"
woofer
,.
one
1"
compression
driver
"fighter
10
:
90
deg
rees
horizontal,
35
degrees
vertica
l
Fighter
12:
90
degrees
horizontal
,
30
degree
s
vertical
T4
Al250V
(100V-120V)
T2A
L
25
0V
(220V
-
240V)
Fighter
12:
50H
z-
20kH
z
F
ighter
10
:
Wi
dth
:
12
"
(30
.5
em)
Width:
13
.5"
(34.3
em)
Height:
2
0.
5"
(52
em)
Depth:
12
.9"
(32.7
em)
Fighter
12:
Height:22
.
5"
(57
.2
em)
Depth:
15
.
1"
(
38
.4
em)
Product
specifications
subject
to
change
without
notice
.
www.'(~JV't
.c
om
Weight:
28lbs.
