Front Panel Functions
Front Panel Functions
Your new Frontman Amp
®
offers affordable
Fender
®
tone and quality:
• All front panel controls and jacks.
• Normal and Drive channels for clean and
overdriven settings.
• Compact size ideal for rehearsal and
backstage warm-up.
• Headphones jack for private listening or
output to sound equipment.
• AUX IN - RCA input jacks for use with a
portable CD or Tape player, drum
machine, etc.
Fender
®
amplifiers are the result of over 50
years of experience and dedication that our
engineers and countless musicians have
gained in recording studios and on stages
around the world.
Fender
®
, The Sound That Creates Legends.

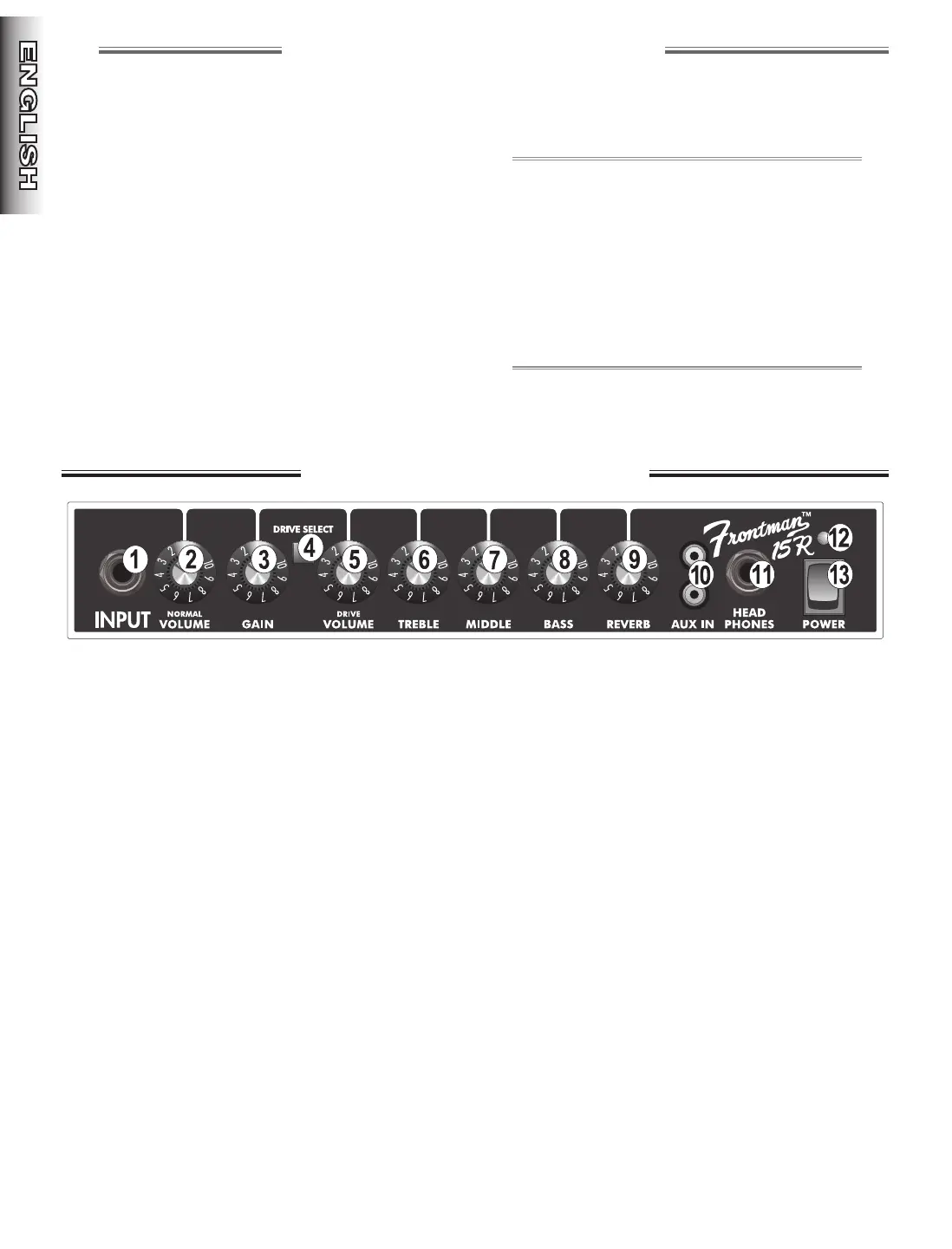

1. INPUT - Plug your guitar in here.
2. NORMAL VOLUME - Adjusts the
loudness of the normal channel.
3. GAIN - Adjusts the amount of gain and
overdrive in the drive channel in
conjunction with the drive volume
control.
4. DRIVE SELECT - Activates the drive
channel.
5. DRIVE VOLUME - Adjusts the loudness
of the drive channel in conjunction with
the gain control.
6. TREBLE - Adjusts the high-frequency
level.
7. MIDDLE - Adjusts the middle-frequency
level.
8. BASS - Adjusts the low-frequency level.
9. REVERB (Frontman 15R models only)-
Adjusts the reverb effect level for both
channels.
10.AUX IN - RCA input jacks for use with a
portable CD or tape player, drum
machine, etc. These input jacks are not
affected by the amplifier’s volume or
tone controls. Adjust the signal at the
source.
11.HEADPHONES - Output jack for
standard stereo or mono headphones.
Using this jack automatically
disconnects the speaker. This jack can
also be used as an unbalanced line
output by using either a stereo or mono
1/4" phone plug connection.
12.POWER INDICATOR - Illuminates when
the unit is ON.
13.POWER SWITCH - This switch turns
the unit ON and OFF.
