Fender G-DEC - MIDI GUIDE - Transferring Single Preset from G-DEC to PC

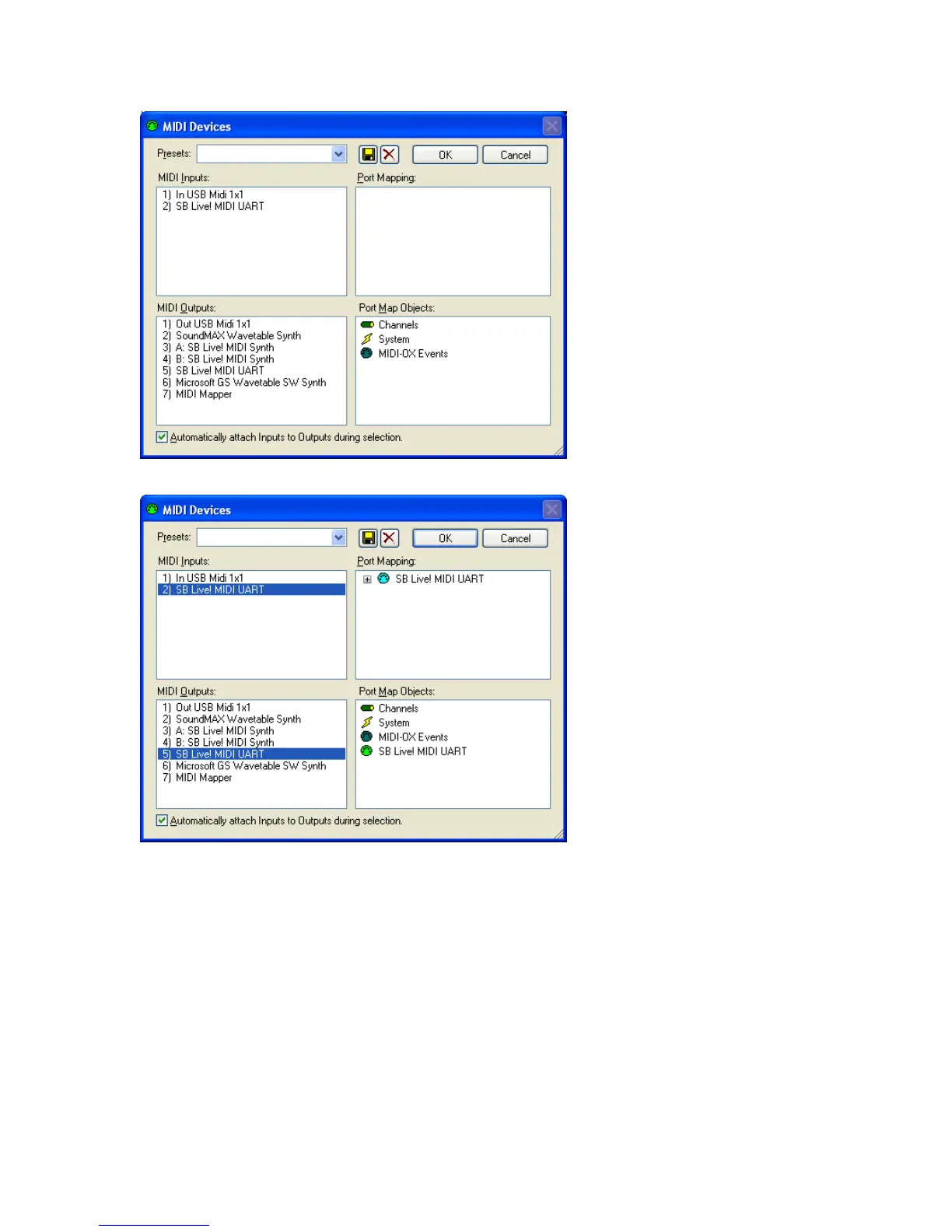

Figure 7 Initial MIDI OX device window
Figure 8 MIDI OX device window after devices have been selected
Transferring a single preset from the G-DEC to the PC
1. In the “Sysex View and Scratchpad” window (third icon in the toolbar) go to the “Sysex/Receive
manual dump” menu. You will be prompted for a filename for your preset. Enter the name and
press SAVE. A window will appear indicating that MIDI-OX is waiting for a dump.
2. Press the UTILITY button on the G-DEC three times, which will take you to the DUMP PRST
function.
3. Press the SAVE button on the G-DEC. You should see some data activity in the Monitor MIDI-
OX screen and an indication that data was sent. See Figure 9. The Sysex Receive window shows
62 bytes received.
