TONE MASTER
®
FR-10, FR-12, FR-212
The Tone Master FR series delivers full-range, flat-response
powered speakers designed for use with today’s digital guitar
amp modelers and profilers. The ideal solution for players
who use modelers at home or on stage, the FR series perfectly
replicates every detail of your amp simulations.
Tone Master FR speakers feature an integrated 1,000-watt
power amp that delivers the volume and headroom needed
for even the most demanding live performance. Other fea-
tures include a three-band active EQ and high-frequency cut
control that lets players fine tune their stage tone without
altering the signal sent to the PA, and classic Fender tilt-back
legs for angled speaker placement providing on-axis response
even on the smallest stages. Plus, Tone Master FR powered
speakers are designed with a pure Fender look and vibe for
authentic backline look and feel.
Register your Tone Master FR at start.fender.com for free additional
software, information on firmware and product updates, special
offers, warranty and service information, and much more.
A. VOLUME: Controls overall volume level.
B. TREBLE: Active +/- 6dB center-detent tone control ne tunes high-end sound to dierent rooms and
stages by boosting or cutting treble frequencies.
C. MIDDLE: Active +/- 6dB center detent tone control ne tunes sound to dierent rooms and stages by
boosting or cutting midrange frequencies.
D. BASS: Active +/- 6dB center detent tone control ne tunes low-end sound to dierent rooms and stages by
boosting or cutting bass frequencies.
E. CUT: For ne-tuning overall high-frequency response. Increase this control to reduce high frequencies sent
to FR speaker.
F. POWER JEWEL: Illuminates red when amplier is on.
G. POWER: Turns amplier on and o.
NOTE: For at frequency response, set TREBLE (B), MIDDLE (C) and BASS (D) controls at center-detent
position and set CUT control at minimum (1) position. Adjustments made to the TREBLE, MIDDLE, BASS
and CUT controls do not change the signal sent to external gear (i.e., sound reinforcement or recording
equipment) when using rear-panel output (I).

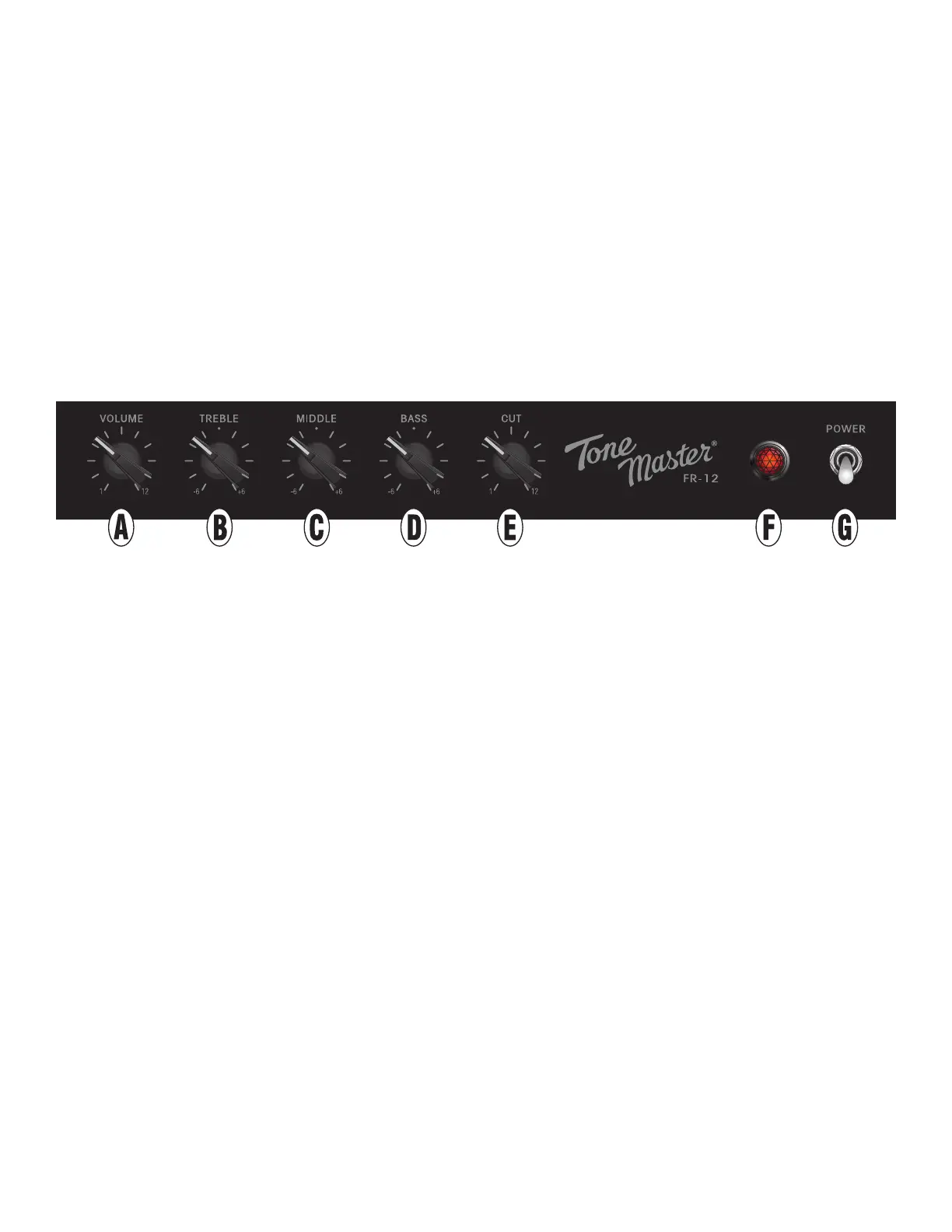

CONTROL PANEL
FR-12 control panel shown; FR-10 and FR-212 control panels are identical.
