Fenton SPA Series - Front Panel Controls; Front Panel Overview; Back Panel Connections and Warnings; Back Panel Connections

4

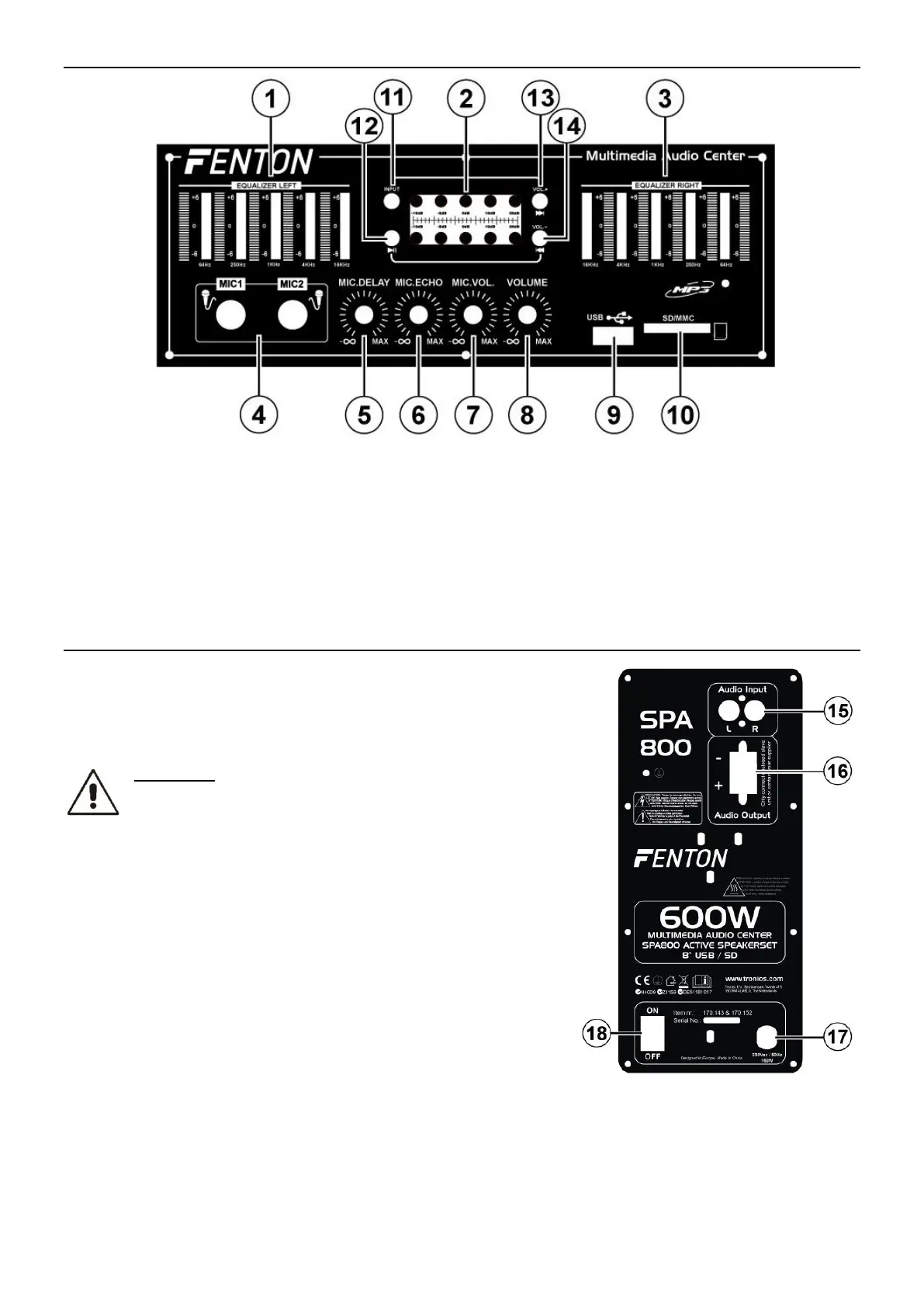

FRONT PANEL
1. Equalizer 5-Bands Left Channel
2. LED VU-meter
3. Equalizer 5-Bands Right Channel
4. Microphone 1 and 2, Jack 6.3mm (¼”)
5. Microphone delay control
6. Microphone echo control
7. Microphone volume control
8. Master volume control
9. USB
10. SD/MMC
11. Input selector
12. MP3 Play/Pause
13. MP3 next track / Volume +
14. MP3 previous track / Volume-
BACKPANEL
15. Line input
16. Speaker output
17. AC Power cable
18. Power switch
WARNING:
After long time using the back panel will be hot, do not touch it
by hand.
