Fermax 4+n Quick Start Guide

4 4+N CITYCLASSIC AUDIO KIT
Cod. 970008 V10_16
INT.
EXT.
1
COD.98600
AMPLIFICADOR ELECTRONICO
23 6
ELECTRONIC AMPLIFIER
1
Ab Ab
12 Vdc
12 Vac
POWER SUPPLY
ALIMENTACION
12 Vac/Vdc
ELEKTRONISCHER VERSTÄRKER
AMPLIFICATEUR ELECTRONIQUE
CITYLINE
AUDIO

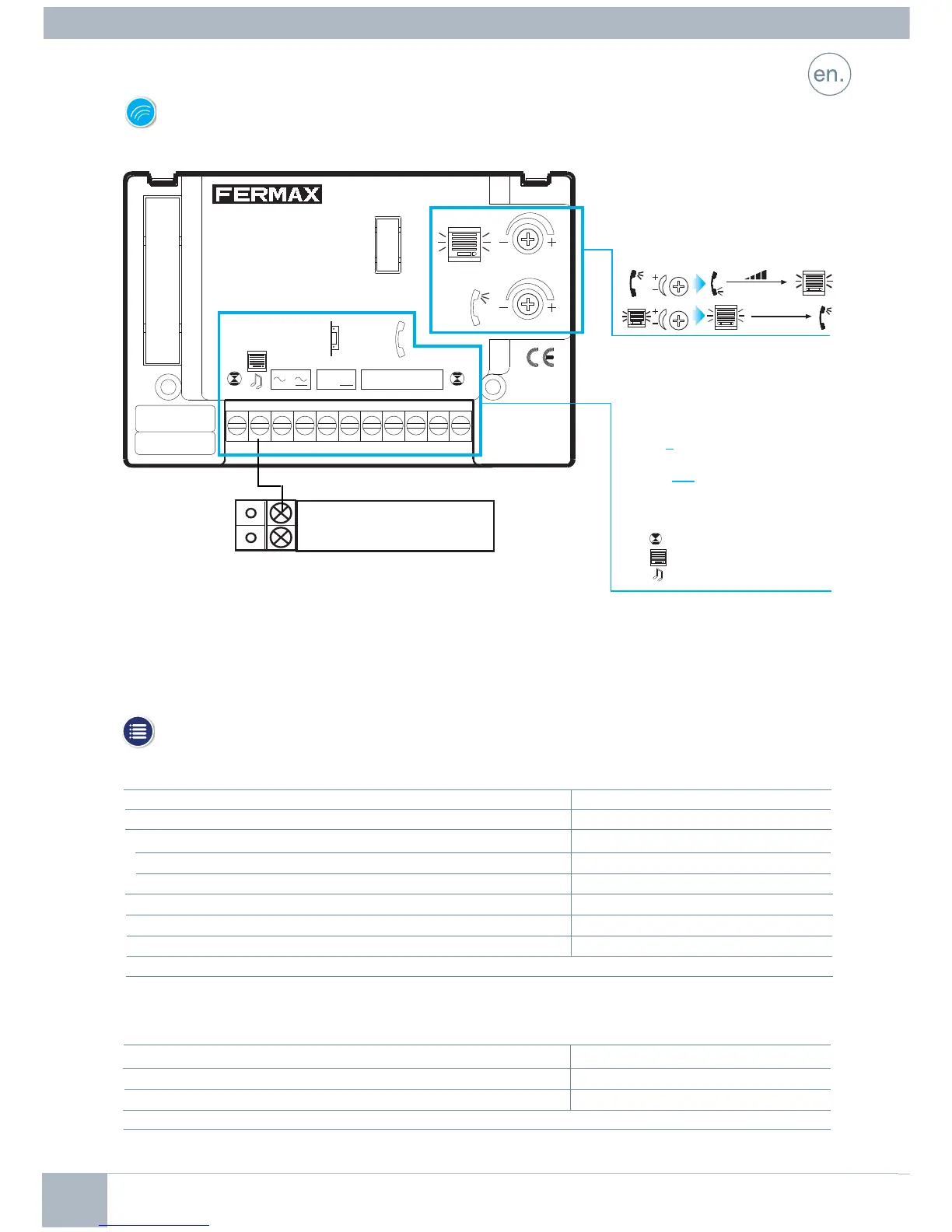

TECHNICAL FEATURES
OUTDOOR PANEL
in standby
audio active
lighting
40 mA
250 mA
70 mA
Power Supply
Consumption
Temperatura de funcionamiento
Audio power from the apartment to the panel
Adjustable volume both ways
12 Vac / 12 Vdc
[0 , +60 °C] / [32 , +140 °F]
Audio power from the panel to the apartment
1W
0,15 W
Electronic call
Microphone: Electret. Dinamic Resistance 50
Operating Temperature
8 ¸ 12 Vpp
[5, +40ºC] / [41, +104ºF]
Speaker
1.75” 16 W
TELEPHONE
PANEL CONNECTORS
Panel Connectors
 System connection terminals:
~, ~:power supply
(12 Vac/Vdc)
Ab,Ab:door-opener
connection
1, 2, 3, 6:commons for
audio
Light connection
Call Monitoring
Adjust the audio

Fermax 4+n Specifications

General

System Type	4+N
Material	ABS plastic
Housing Material	ABS plastic
Display	No
Camera	No
Night Vision	No
