VDS LOFT MONITOR 3
VDS
Cod. 97878 V11_16

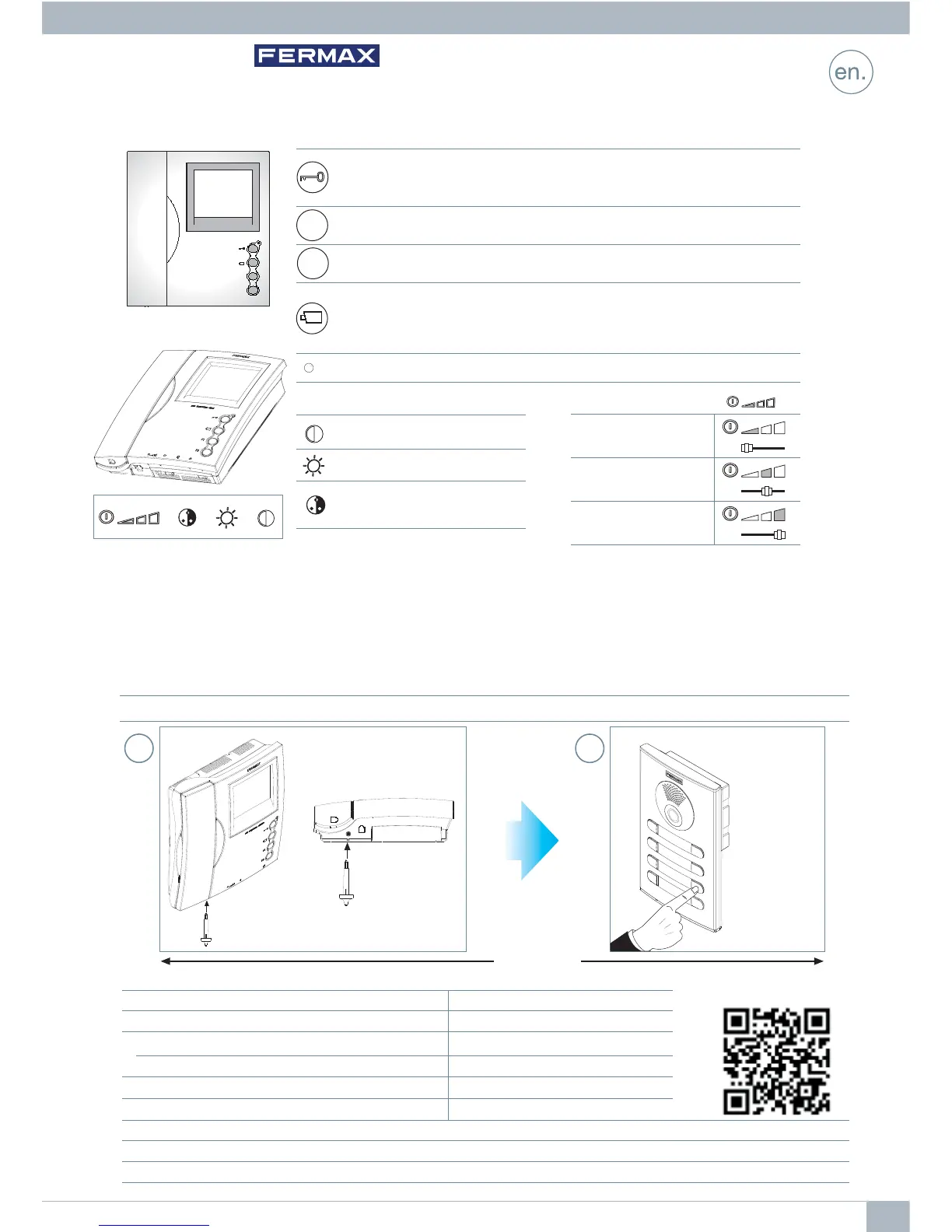

START GUIDE FOR THE LOFT VDS MONITOR
CONTROL BUTTONS
F2
F1
F1
F2
In conversation, press to open the door.
In standby, call to guard unit (if applicable).
Additional function (see your installer).
Additional function (see your installer).
In standby, press and view the main panel´s camera. Auto-
start and select Main/Secondary camera (depending on the
installation).
LED indicator of the monitor that is on.
VIDEO SETTINGS
Brightness
Contrast
Colour (only colour
monitors)
AUDIO SETTINGS
Off
On
with MEDIUM volume
On
with HIGH volume
HOW TO PROGRAM THE LOFT MONITOR
1. INSTALL
Monitor powered for the fi rst time.
The fi xed red led indicates that the monitor is powered and on (audio volume).
2. PROGRAM (Panel confi gured as MASTER)
1. With the monitor on, press the programming button. A confi rmation tone will be emitted.
2. Press the call-to-residence button. Again, a confi rmation tone is emitted.
Note: The monitor will not work if it has not been programmed.
1
2
< 2 min
detail
programming button
TECHNICAL CHARACTERISTICS (TFT 3,5”)
in standby
audio + video
10 mA
290 mA
Power Supply
Consumption
Operating Temperature
Humidity
Resolution : Hor. 320 Line TV - Ver. 240 Line TV
[-5 , +40 °C] / [23 , +104 °F]
F1, F2 : Negative output. Maximum current per pussbutton F1, F2: 50mA with 12Vdc
[0.90%]
Video signal : Composed signal 1 Vpp 75 Ω, 7 Mhz
Dimensions : 221 x 203 x 61 (mm) - 8,7” x 7,9” x 2,4” - (Height x Width x Depth)
18 Vdc
COMPLETE
MANUAL
