Discharge Chute Reattachment
MOWING WITHOUT THE BLOWER
For operation without the blower, the deflector must be
properly installed in the down position and retained by
the spring latch (Derby models only).
To remove the blower, reverse the installation steps.
Reattaching the Discharge Chute
See Figure 33. Using the retainer pin and hair pin clip,
secure the discharge chute to the mower deck. Make
sure the chute mount tabs are in front of the tabs on the
mower deck. For the Derby mowers, you must also
reinstall the torsion springs and spacer to properly retain
the discharge chute.

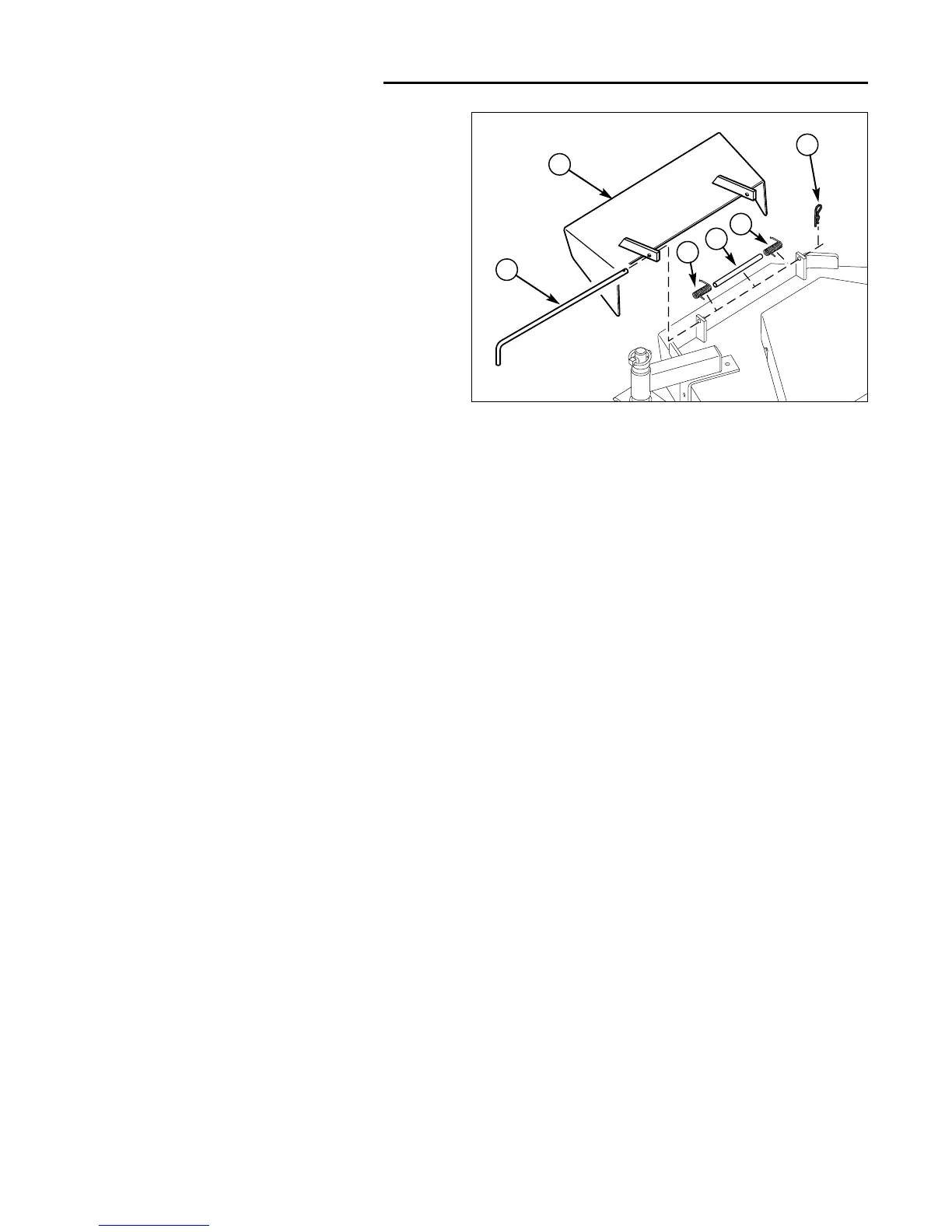

Figure 33. Discharge Chute Reattachment
A. Discharge Chute
B. Retainer Pin
C. Hair Pin Clip
D. Torsion Spring
E. Spacer
A
B
C
D
E
D
