6
2. While holding the mount plate vertical and against
the chute mount tabs, place the spacers on the
mower deck in the recesses of the mount plate.
Make sure they are at the bottom of the recess (see
Figure 7). Mark their location with a paint pen or
prick punch.
3. Remove the spacers and blower mount plate.
4. Drill 5/16” holes where the spacer location was
marked.
5. Install the spacers (C, FIgure 8) and mount bar (B)
on the mower deck and secure with the 5/16-18 x 1-
1/4” bolts (D) and 5/16-18 nylon lock nuts (A).

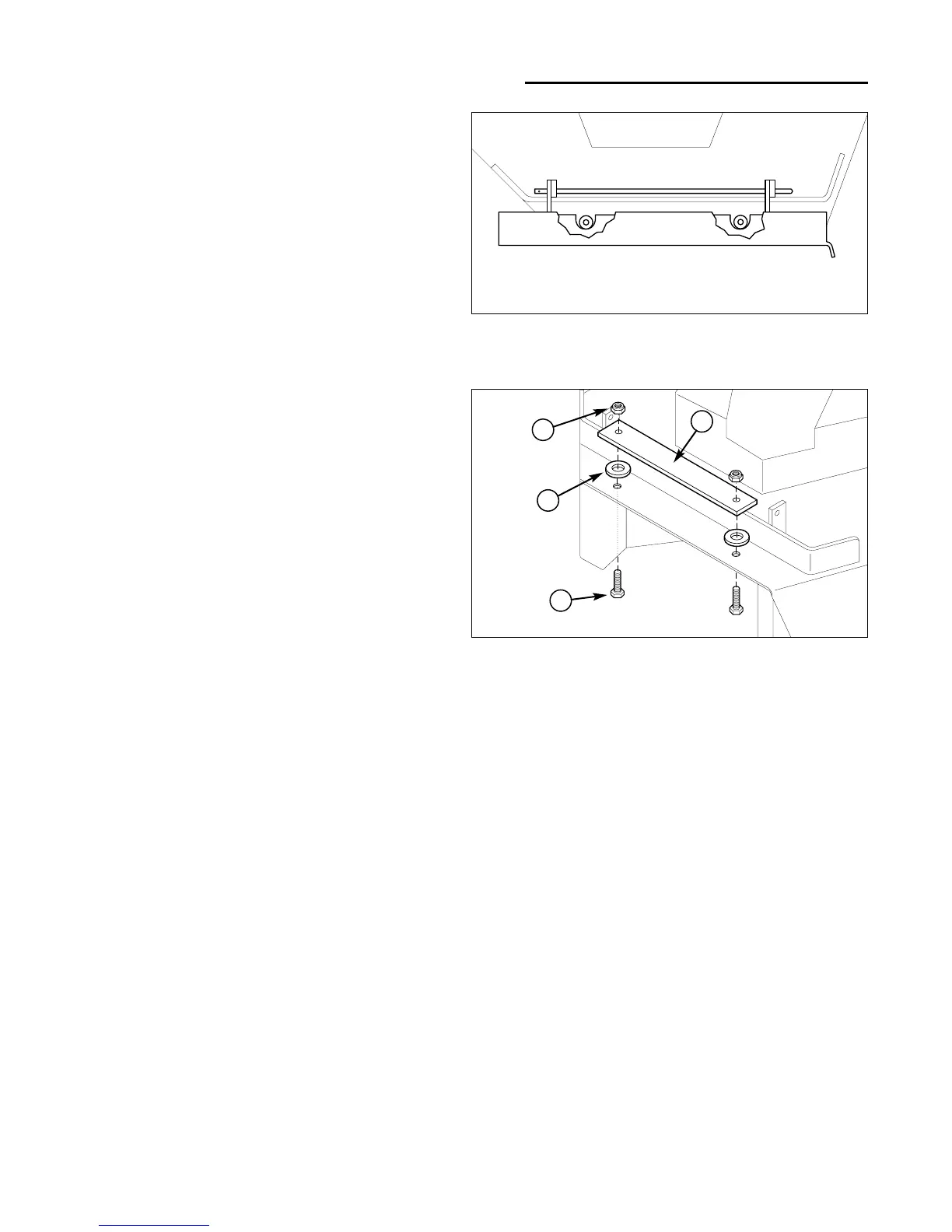

Figure 7. Spacer Location
Figure 8. Install Quick Connect Bar
A. 5/16” Nylon Lock Nut (2) C. Spacer (2)
B. Quick Connect Bar D. 5/16” x 1-1/4” Bolt (2)
A
B
C
D
48” & 52” Blower Mount & Drive Installation
