Cutting Height
Adjustment
Storage Hole for
Cutting Height
Adjustment Pin
Deck Lift Lock
Lever

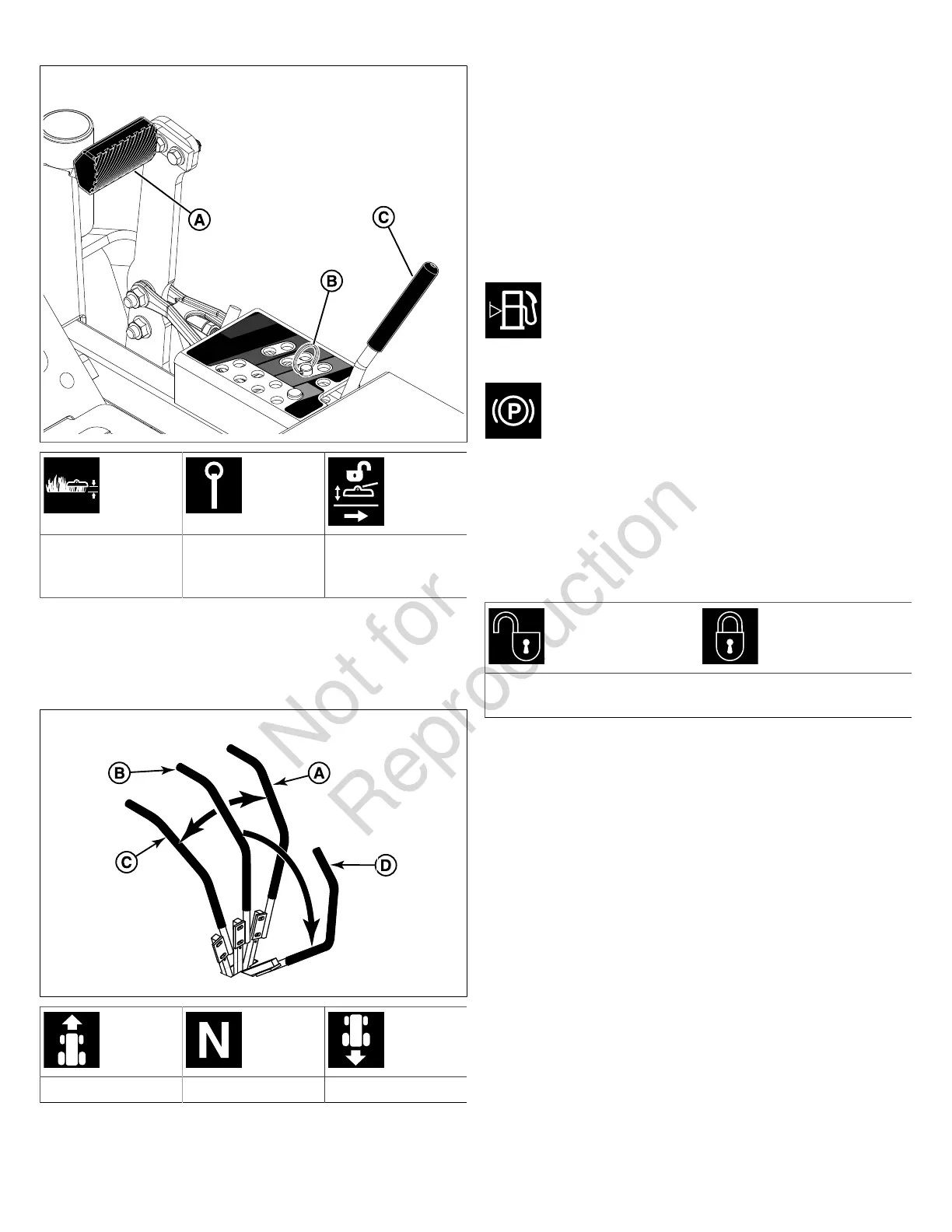

Ground Speed Control Levers: These levers control the
ground speed and direction of the zero-turn riding mower.
The left lever controls the left rear drive wheel and the right
lever controls the right rear drive wheel.
8
Forward Neutral Reverse
The parking brake must be disengaged before attempting to
move the ground speed control levers from the NEUTRAL
position.
Moving a lever forward (A) from the NEUTRAL position (B)
increases the FORWARD speed of the associated wheel, and
pulling back (C) on a lever increases the REVERSE speed.
Moving the levers outwards (D) from the NEUTRAL position
locks the levers in the NEUTRAL LOCKOUT position.
Note:The further a lever is moved away from the neutral
position the faster the drive wheel will turn.
See the Zero-Turn Riding Mower Driving Practice section for
steering instructions.
Fuel Level Gauge: Displays the fuel level in the
tank.
Parking Brake: Pull the parking brake lever up
and back to engage the parking brake. Move the lever fully
forward and down to disengage the parking brake.
Note:To start the unit the parking brake must be engaged.
Engaging the parking brake locks the ground speed control
levers in the NEUTRAL position. The parking brake must be
disengaged before moving the ground speed control levers
out of the NEUTRAL position.
DISENGAGE: Releases the
parking brake.
ENGAGE: Locks the parking
brake.
Suspension Seat: This series of mower has multiple
suspension seat options: a standard suspension seat (inset
1, Figure 9), and a suspension seat that has lumbar and back
angle adjustments (inset 2). If your unit features a suspension
seat, identify your suspension seat and follow the correct
instructions below.
See Figure 9 and the list below for the location of the seat's
features and a brief description of their functions.
