Mower DeckPreparation
Remove the Spindle Pulley
IS500Z Series, 1000Z Series, ISl000Z Series,
IS1500Z, IS2000Z, IS3000ZF & ZX Series, S150X &
S200X Series:
,
Remove the 3/4-16 hex nut & 3/4" spring washer
(A & B, Figure 22) securing the spindle pulley (C)
to the spindle shaft. Use a 1" wrench on the flats
of the blade end of the spindle shaft to prevent the
shaft from spinning. Save the 1/4" key (D).
IS3000ZL Series, IS3100Z Series, & IS4500Z
Series:
1. Measure and record the distance between the
bottom of the spindle pulley and the top of the
mower deck. This will be required when installing
the new pulley.
2. Remove the 1/4-20 x 1" bolts (E) securing the
tapered hub (F) to the spindle pulley (G) and
shaft.
3. Reinstall the bolts in the tapped holes of the
tapered hub and tighten evenly to remove the hub
from the pulley and shaft. Use a 1" wrench on the
flats of the blade end of the spindle shaft to
prevent the shaft from spinning. Save the 1/4" key
(U).
i

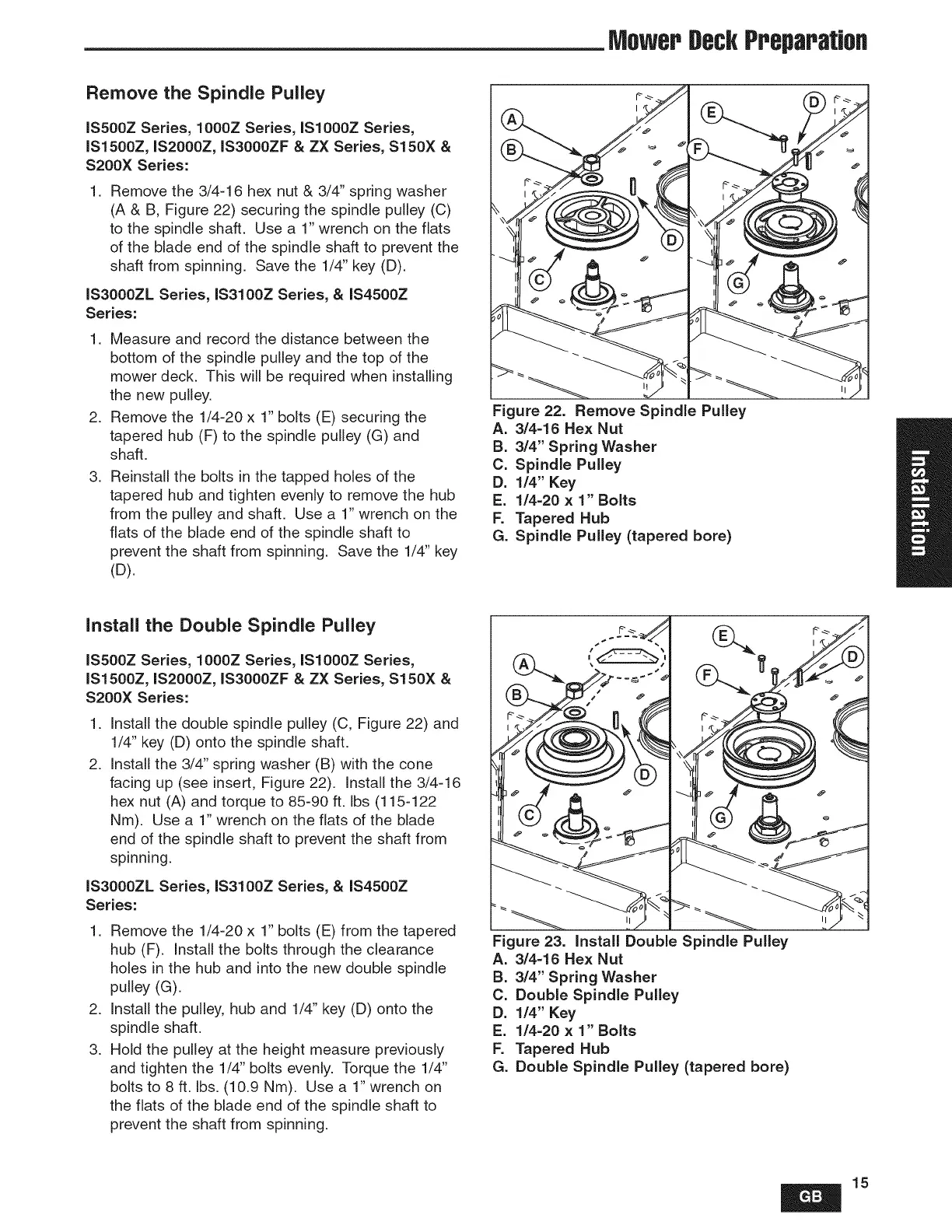

Figure 22. Remove Spindle Pulley
A. 3/4-16 He× Nut
B. 3/4" Spring Washer
C. Spindle Pulley
D. 1/4" Key
E. 1/4=20 x 1" Bolts
F. Tapered Hub
G. Spindle Pulley (tapered bore)
Install the Double Spindle Pulley
IS500Z Series, 1000Z Series, ISl000Z Series,
IS1500Z, IS2000Z, IS3000ZF & ZX Series, S150X &
S200X Series:
,
2.
Install the double spindle pulley (C, Figure 22) and
1/4" key (D) onto the spindle shaft.
Install the 3/4" spring washer (B) with the cone
facing up (see insert, Figure 22). Install the 3/4-16
hex nut (A) and torque to 85-90 ft. Ibs (115-122
Nm). Use a 1" wrench on the flats of the blade
end of the spindle shaft to prevent the shaft from
spinning.
IS3000ZL Series, IS3100Z Series, & IS4500Z
Series:
1. Remove the 1/4-20 x 1" bolts (E) from the tapered
hub (F). Install the bolts through the clearance
holes in the hub and into the new double spindle
pulley (G).
2. Install the pulley, hub and 1/4" key (D) onto the
spindle shaft.
3. Hold the pulley at the height measure previously
and tighten the 1/4" bolts evenly. Torque the 1/4"
bolts to 8 ft. Ibs. (10.9 Nm). Use a 1" wrench on
the flats of the blade end of the spindle shaft to
prevent the shaft from spinning.
Figure 23. Install Double Spindle Pulley
A. 3/4=16 He× Nut
B. 3/4" Spring Washer
C. Double Spindle Pulley
D. 1/4" Key
E. 1/4=20 x 1" Bolts
F. Tapered Hub
G. Double Spindle Pulley (tapered bore)
15
