Mower DeckPreparation
Reinstall the Spindle Belt
Refer to the belt removal instructions on Page 10,
11, & 12 and reverse the order for reinstalling the
belt.
Install the Deck Guard
1. Install the new deck guard onto the mower deck
and secure with the hardware previously removed
(see Figure 24).
NOTE: The IS2000Z with 52" deck has a 2-piece
deck guard, Install as shown in Figure 25,
NOTE: The IS4500Z Series has a 3-piece deck
guard. Install as shown in Figure 26,

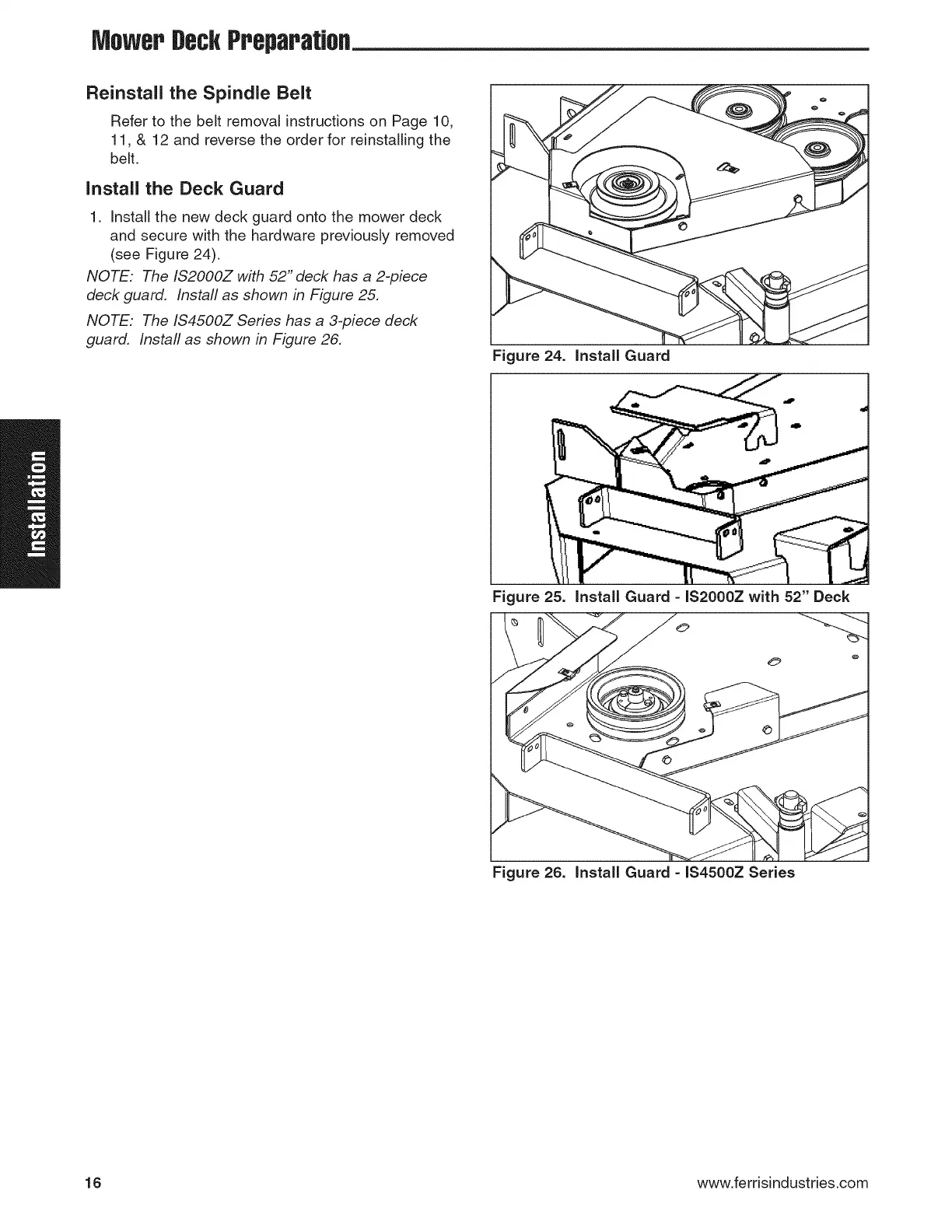

Figure 24.
Install Guard
Figure 25.
Install Guard = IS2000Z with 52" Deck
//
Figure 26. Install Guard = IS4500Z Series
