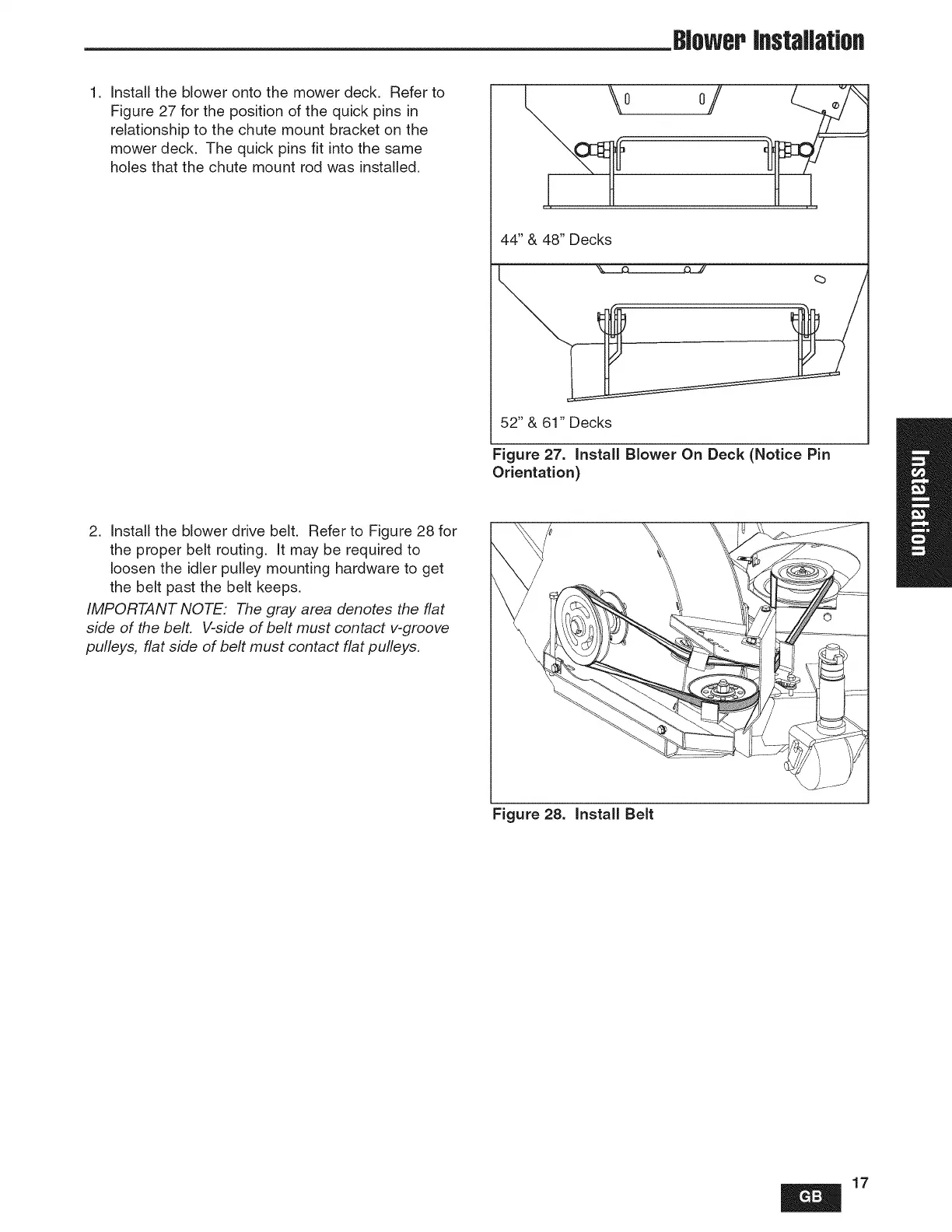

BlowerJflstaflatm
, Install the blower onto the mower deck. Refer to
Figure 27 for the position of the quick pins in
relationship to the chute mount bracket on the
mower deck. The quick pins fit into the same
holes that the chute mount rod was installed.
0
44"& 48" Decks
0/
52" & 61" Decks
Figure 27. Install Blower On Deck (Notice Pin
Orientation)
2. Install the blower drive belt. Refer to Figure 28 for
the proper belt routing. It may be required to
loosen the idler pulley mounting hardware to get
the belt past the belt keeps.
IMPORTANT NOTE: The gray area denotes the flat
side of the belt. V-side of belt must contact v-groove
pulleys, flat side of belt must contact flat pulleys.
Figure 28. Install Belt
17
