WeightMeufltJflstaflatm
(1810007 SepJes)
InstalJ Weight Carriers
1. Install the left-hand and right-hand weight carriers
(E & H, Figure 47), bar clamps (F) and fasten with
the 5/16-18 x 2-1/2" bolts (B) and 5/16-18 nylon
lock nuts (G). Make sure carriers are tight against
the outside of the suspension arm and do not
interfere with the shock/spring assembly. Tighten
securely.
2. Install the counter weights (A) in the weight carrier
and secure with the clevis pins (D) and hair pin
clips (C).
\ \\/"
\\ /i
j/ i
\

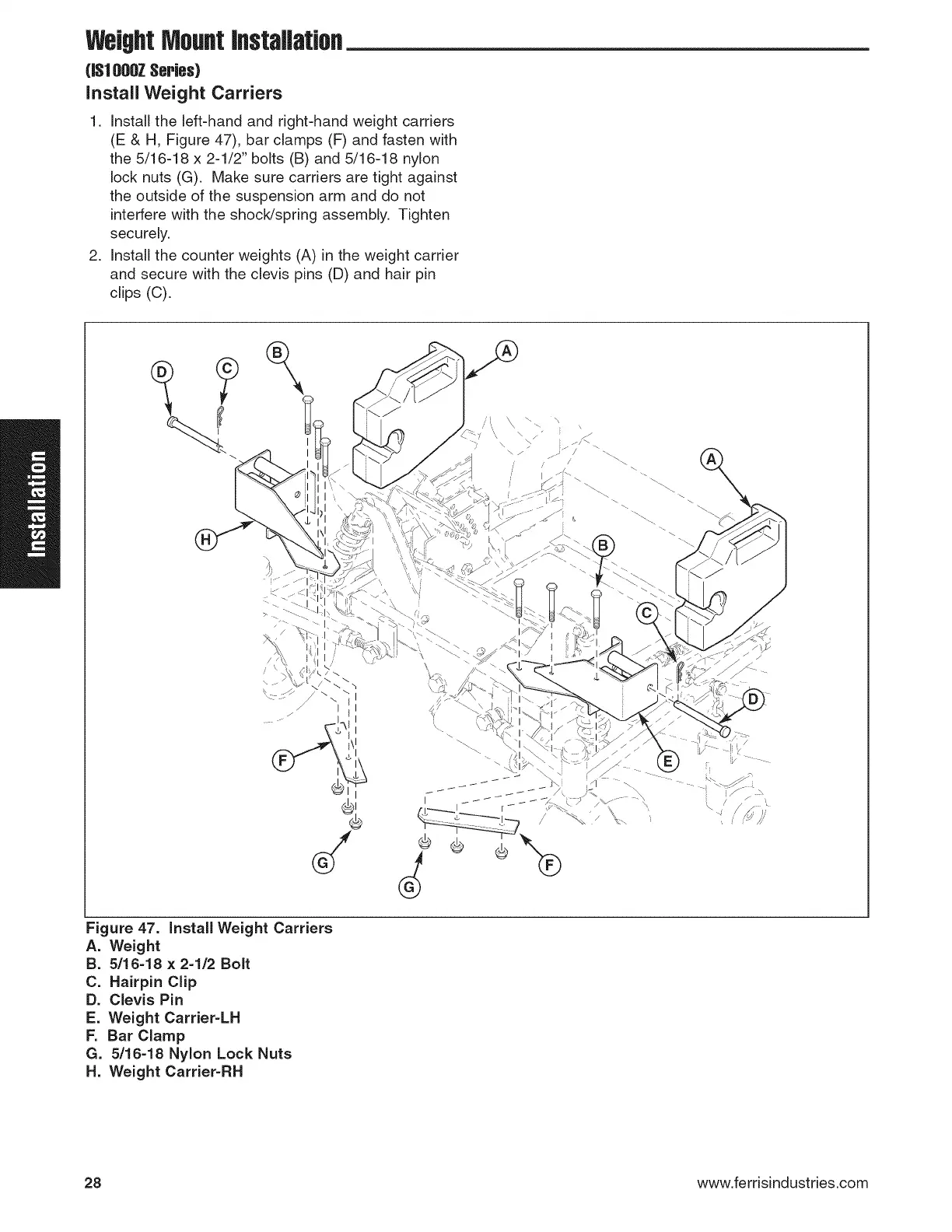

Figure 47. install Weight Carriers
A. Weight
B. 5/16-18 x 2=1/2 Bolt
C. Hairpin Clip
D. Clevis Pin
E. Weight Carrier=LH
F. Bar Clamp
G. 5/16-18 Nylon Lock Nuts
H. Weight Carrier-RH
28 www.ferrisindust ries.com
