Install Weight Carrier
1. Remove the hairpin clip and clevis pin and remove
the deck lift foot pedal. Lift the floor plate.
2. Install the weight carrier (E, Figure 46), mount
plates (B & C) and fasten with the 3/8-16 x 3"
bolts (A) and 3/8-16 nylon lock nuts (D). Tighten
securely.
3. Install the counter weights (H) in the weight carrier
and secure with the retaining pin (F) and hair pin
clips (G).
4. Lower floor plate and reinstall deck lift foot pedal,
clevis pin and hair pin clip.
WeightMeufltJflstalJatm
{| OOOZSepies

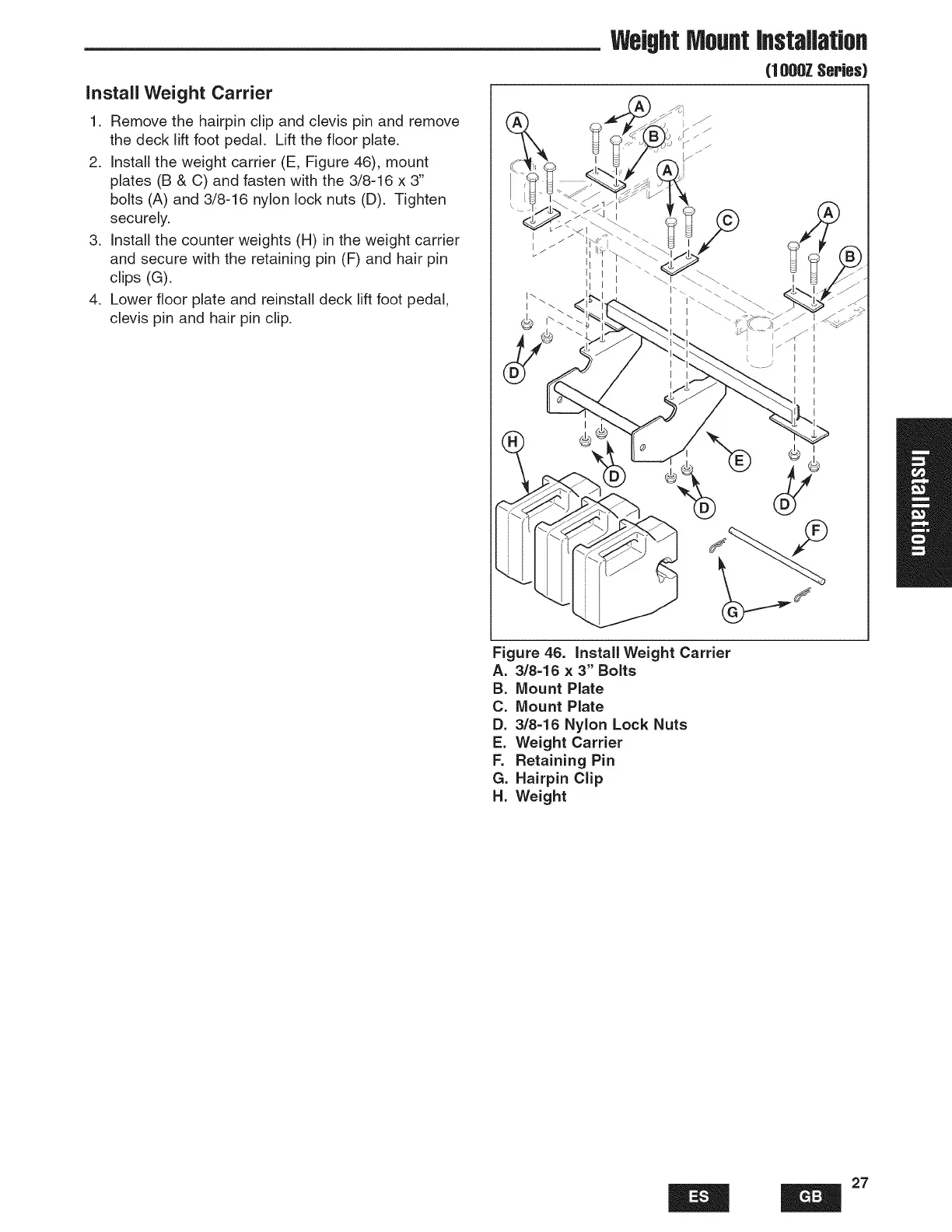

Figure 46. Install Weight Carrier
A. 3/8=16 x 3" Bolts
B. Mount Plate
C. Mount Plate
D. 3/8=16 Nylon Lock Nuts
E. Weight Carrier
F. Retaining Pin
G. Hairpin Clip
H. Weight
27
