CoflectorJnstaflatJon
Install Hose
1. Lower the mower deck to the lowest cutting
position.
2. See Figure 45. Install the hose (A) onto the
blower and secure with the removable clamp (with
knob) (B). At least two bands must cover the
outlet of the blower (C).
3. Cut the hose to fit properly between the blower
and collector as shown in Figure 45. At least two
bands must cover the inlet of the collector (D).
Secure with the stationary clamp (E).
\

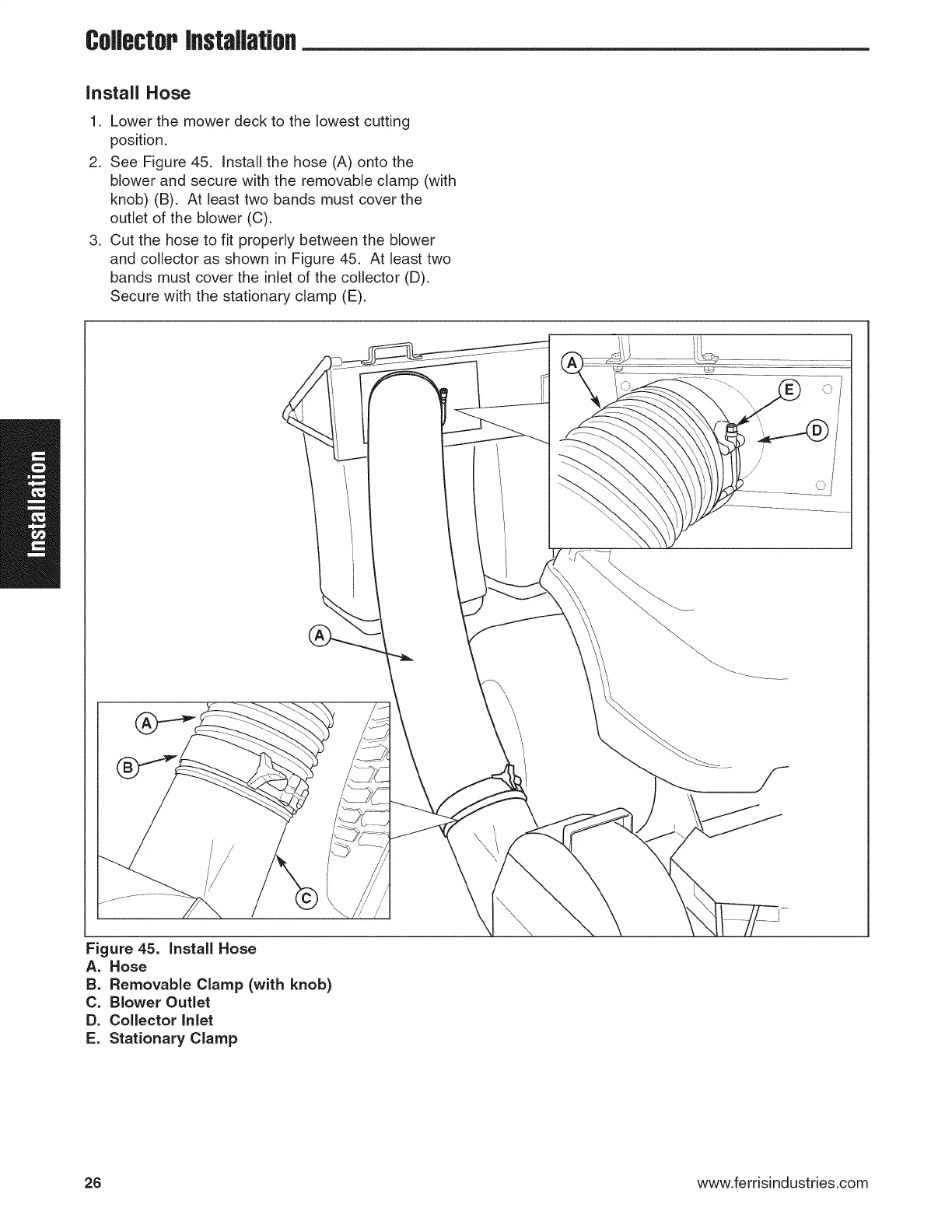

Figure 45. JnstaJJHose
A. Hose
B. Removable Clamp (with knob)
C. Blower Outlet
D, Collector inlet
E. Stationary Clamp
26 www.ferrisindust ries.com
