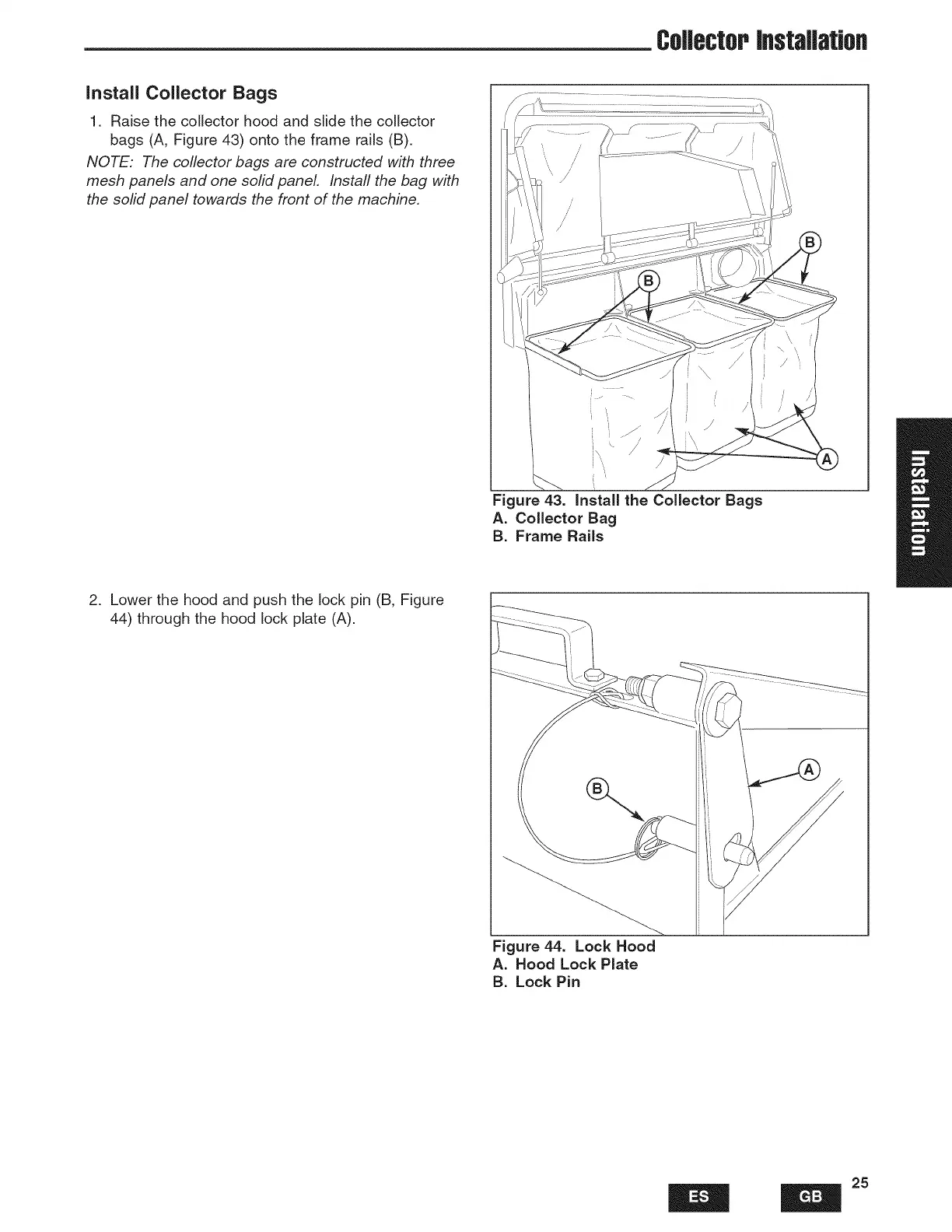

CoflectorJnstaflatJon
InstaiJ ColJector Bags
1. Raise the collector hood and slide the collector
bags (A, Figure 43) onto the frame rails (B).
NOTE: The collector bags are constructed with three
mesh panels and one solid paneL Install the bag with
the solid panel towards the front of the machine.
Figure 43. Install the Collector Bags
A. ColJector Bag
B. Frame Rails
2. Lower the hood and push the lock pin (B, Figure
44) through the hood lock plate (A).
Figure 44. Lock Hood
A. Hood Lock Plate
B. Lock Pin
El 2s
