6. Reinstall the discharge chute (A, Figure 57) and
secure with the supplied quick attach rod (B) and
hairpin clips (C).
7. Empty the grass collector bags and reinstall in the
bagger frame.

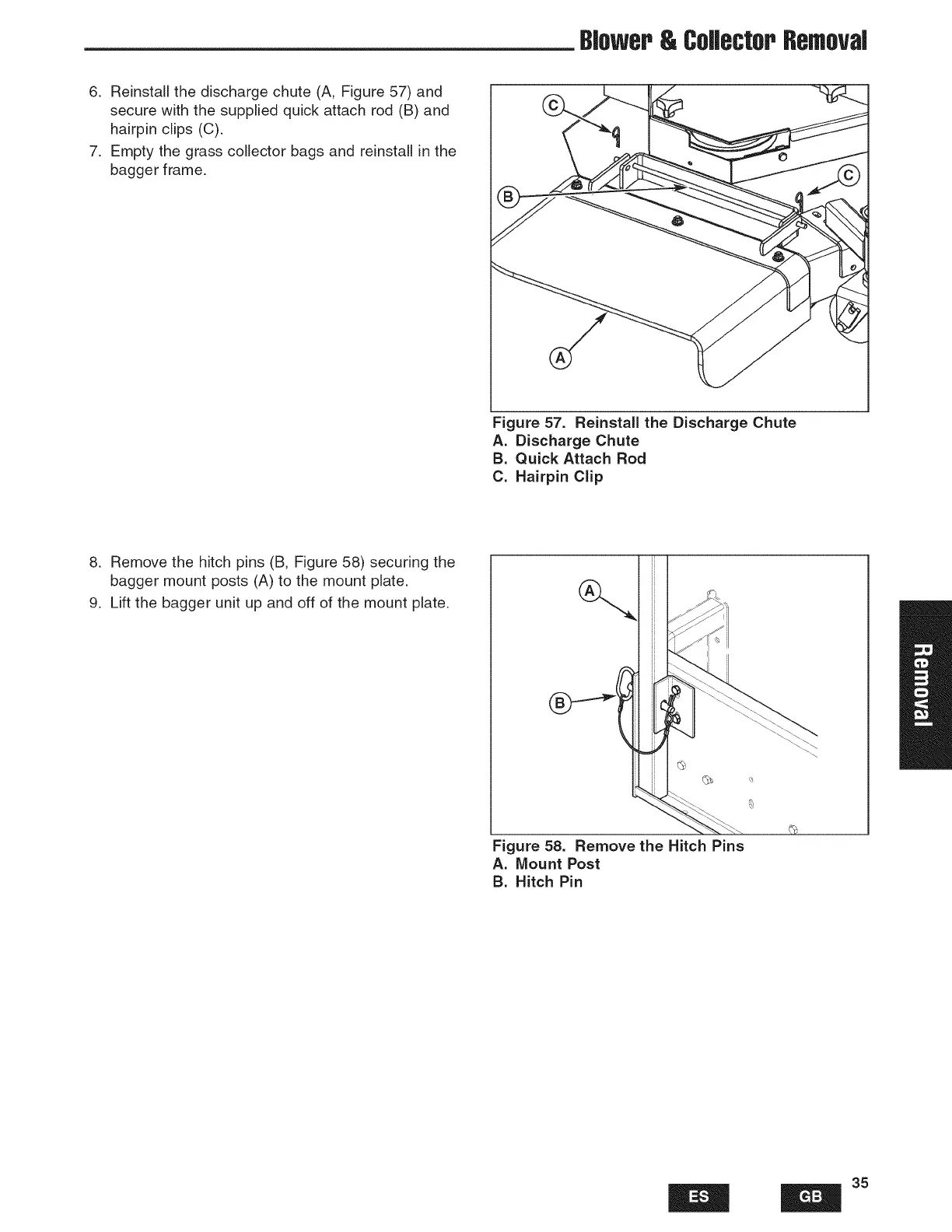

Figure 57. Reinstall the Discharge Chute
A. Discharge Chute
B. Quick Attach Rod
C. Hairpin Clip
8. Remove the hitch pins (B, Figure 58) securing the
bagger mount posts (A) to the mount plate.
9. Lift the bagger unit up and off of the mount plate.
Figure 58. Remove the Hitch Pins
A. Mount Post
B. Hitch Pin
