mower & CoflectorRmoval
1. Remove the knobs (A, Figure 55) securing the
deck guard top (B) to the deck guard.
2. Pull the blower idler arm lever (C) forward to
release the belt tension and remove the belt from
the spindle pulley.
3. Reinstall the deck guard top and secure with the
knobs.

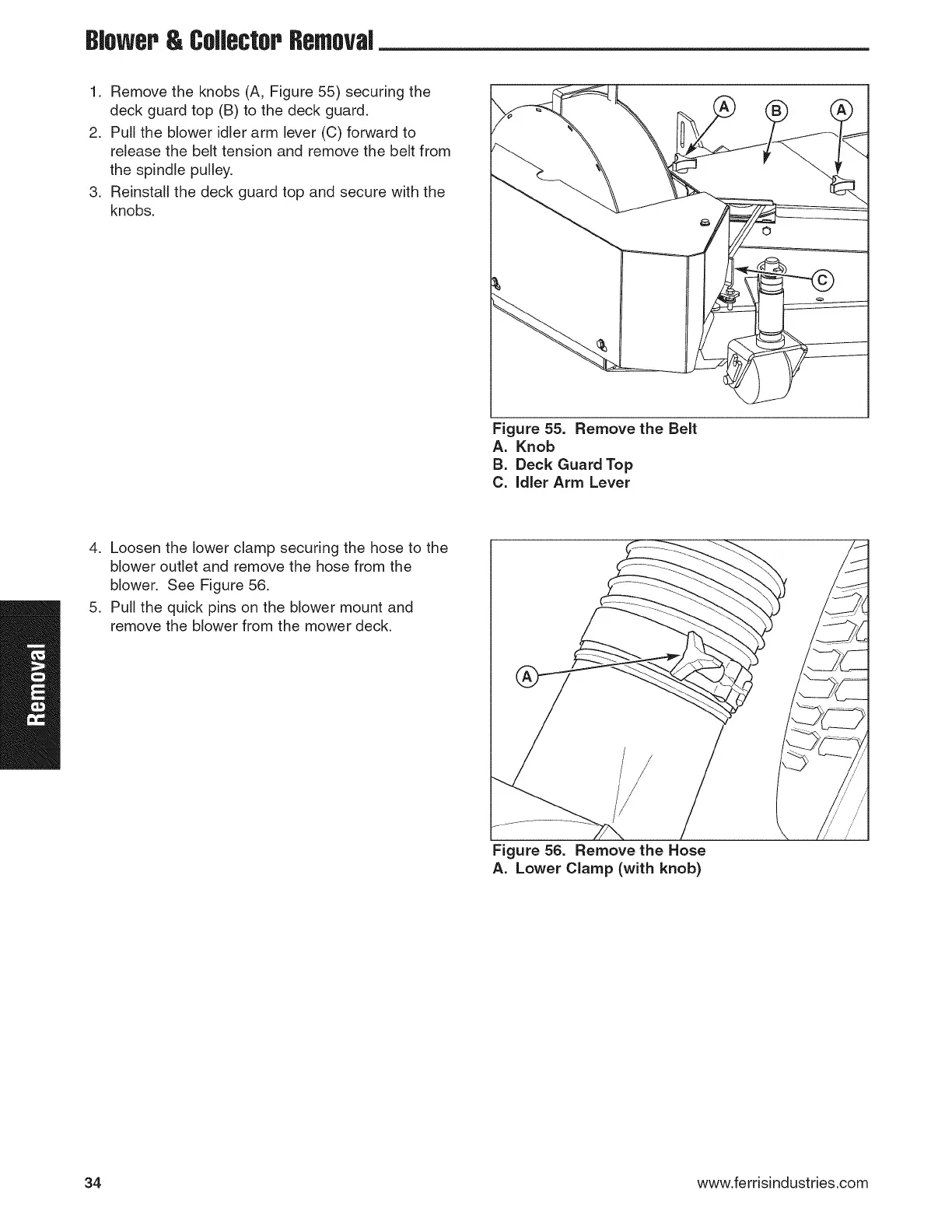

Figure 55. Remove the Belt
A. Knob
B. Deck Guard Top
C. Idler Arm Lever
4. Loosen the lower clamp securing the hose to the
blower outlet and remove the hose from the
blower. See Figure 56.
5. Pull the quick pins on the blower mount and
remove the blower from the mower deck.
Figure 56. Remove the Hose
A. Lower Clamp (with knob)
34 www.ferrisindust ries.com
