MAINTENANCE
Lubrication Points

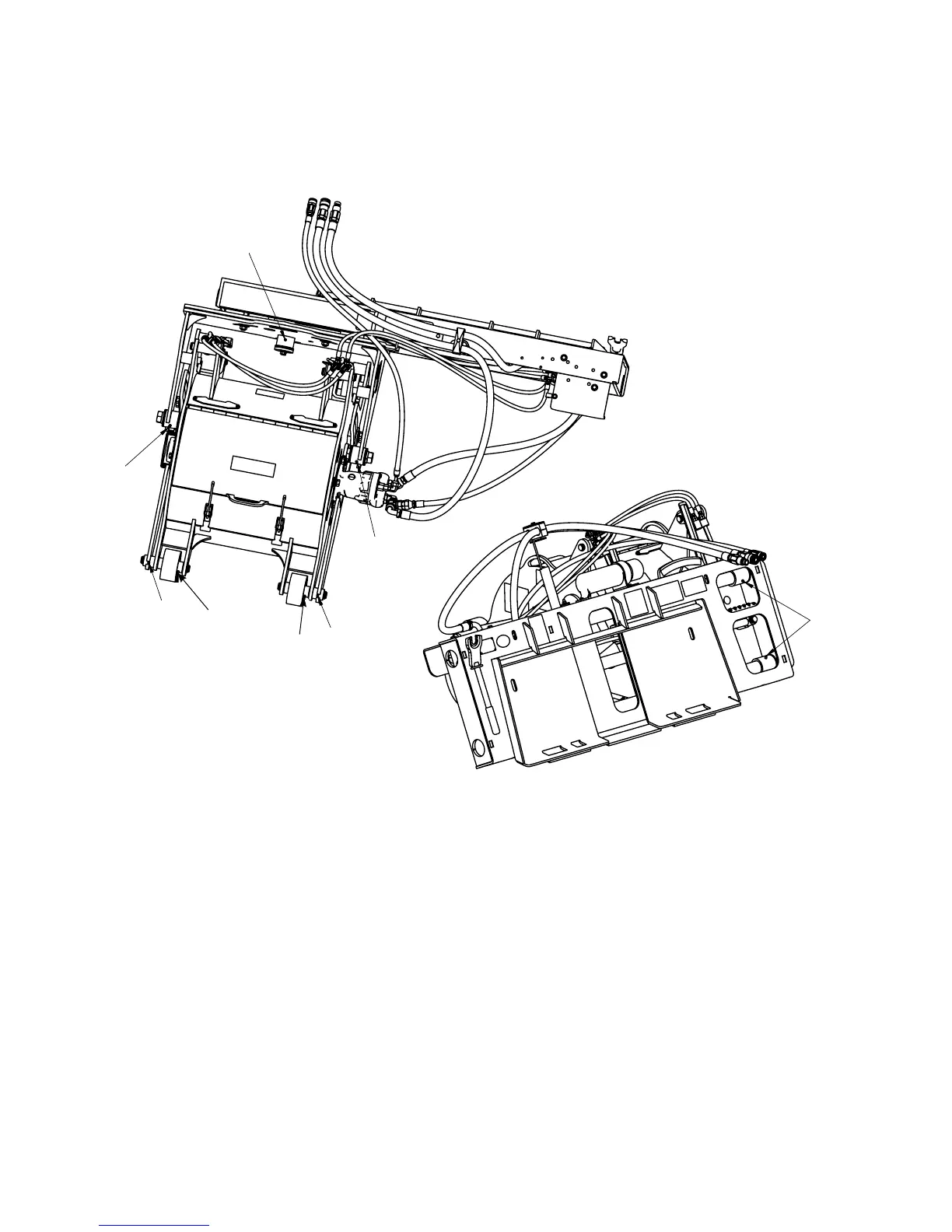

NOTE: Lubricate all grease fittings with a NLGI #1 or 2 multipurpose grease or equivalent.
Grease Fittings:
1. Weld Pivot, 3 Total
2. Caster, 1 each, 4 Total
3. Mounting, 4 Total ( 2 hidden behind mounting plate)
4. Depth Guide, 2 Total
NOTICE! Avoid excessive greasing. Dirt collects on exposed grease and greatly increases
wear. After greasing, wipe off excessive grease from fittings.
