FIAMA EP9L - Error Message; Overall Dimension; Display Icons

Hollow shaft display
EP9L
Data: 06/11/18 EP9L_ing.doc pag 6/7

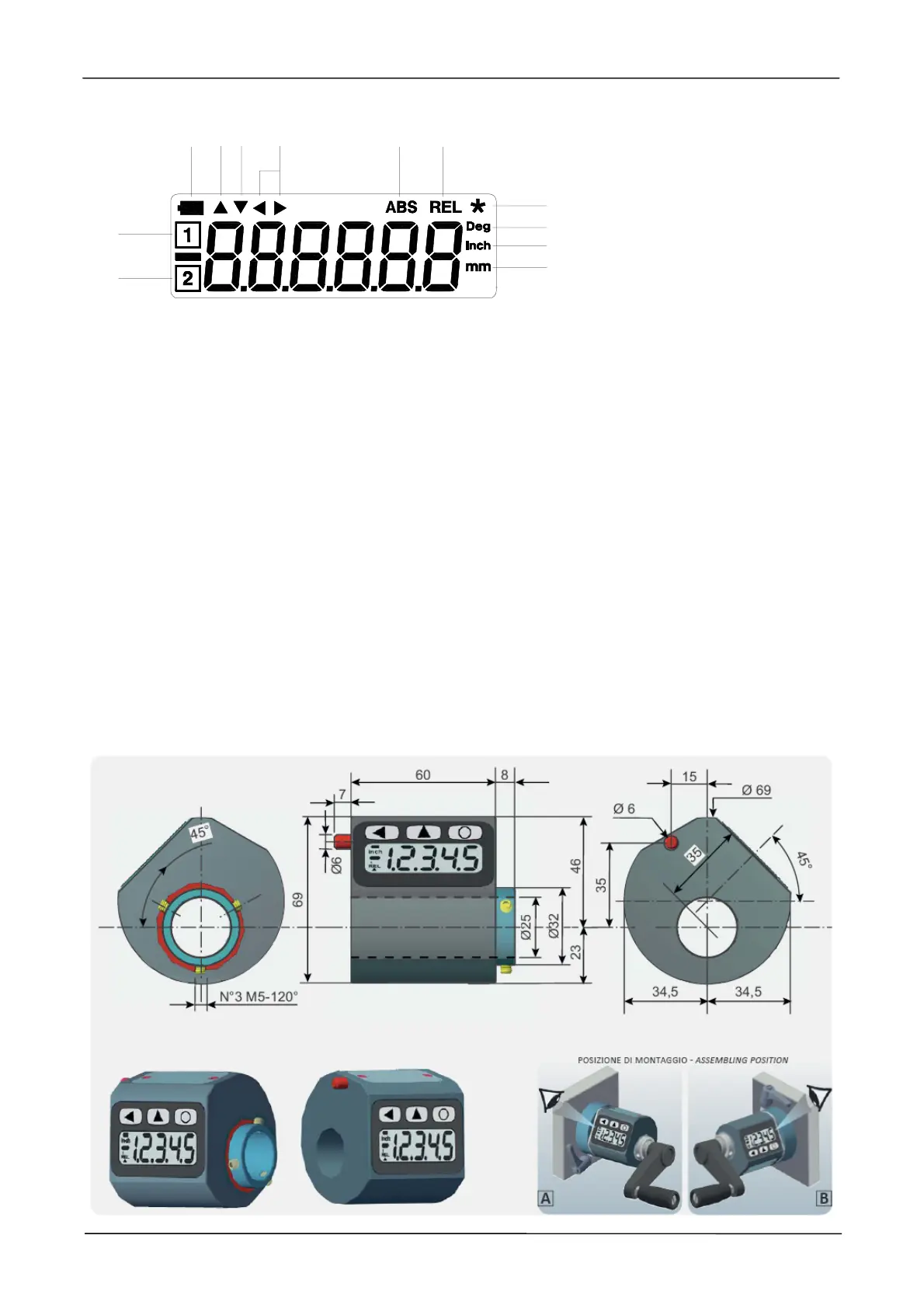

Display icons
1.
Indicator of flat battery: begins to blink when the level of loading goes under a certain value
and when it keeps switched on its necessary to change the batteries within 1 month.
2.
Indicator of absolute quota
3.
Indicator of relative quota
4
. Indicator of mm
5.
Indicator of inches
6.
Indicator of degrees
7.
Indicator of positive Offset: indicates that the measure is corrected by a positive offset
8.
Indicator of negative Offset: indicates that the measure is corrected by a negative offset
9.
Indicator of values changing: it blinks during the programming phase
10.
Indicator of origins: indicates that the origin changing mode is opened
11.
Indicator for origin 1
12.
Indicator for origin 2
Error message
RX(U
RX(URX(U
RX(U
: the current displayed value passed the maximum value that can be visualized (possible
range: from –99999 to 99999).
ambient temperature for stick the bi-adhesive tape is over 10°C. The maximum adherence of the
tape works out after 48 hours (about) of the application and is kept between –10 and 80°C.
Overall dimension
1278 10 3
9
6
5
4
11
12
