FIAT 124 Spider
Engine Maintenance + Modification
73

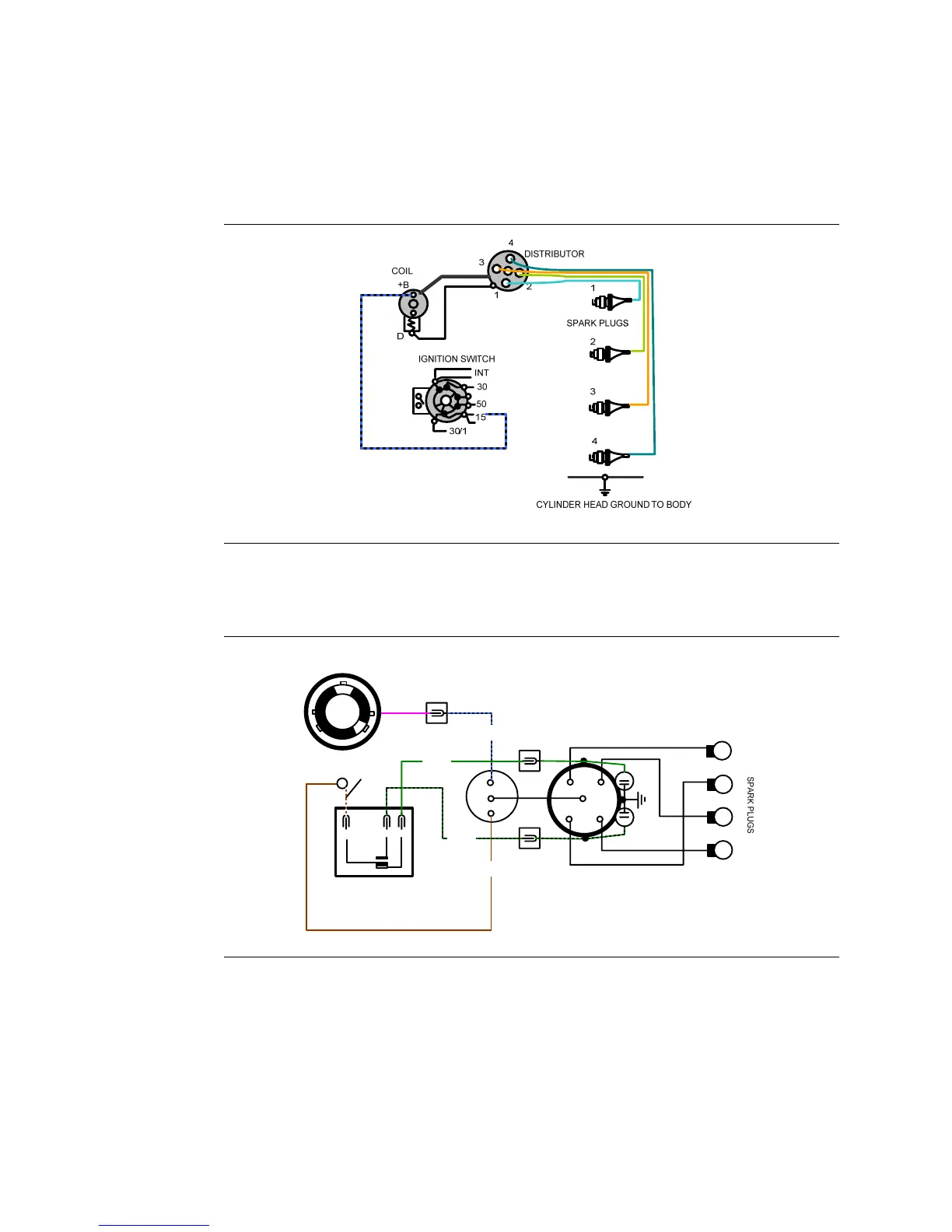

Figure 44: Ignition Electrical Diagram for the 1967-1973 Spider
C15
DISTRIBUTOR
+B
D
1
42
3
1
2
3
4
30 87 87a
IGNITION MODE
RELAY 128/2
C40
IGNITION SWITCH
15/54
PINK
LT BLUE/
BLACK
BROWN
BROWN/
WHITE
GREEN
/BLACK
C9
GREEN
Figure 45: Ignition Electrical Diagram for the 1974-1978 Spider
