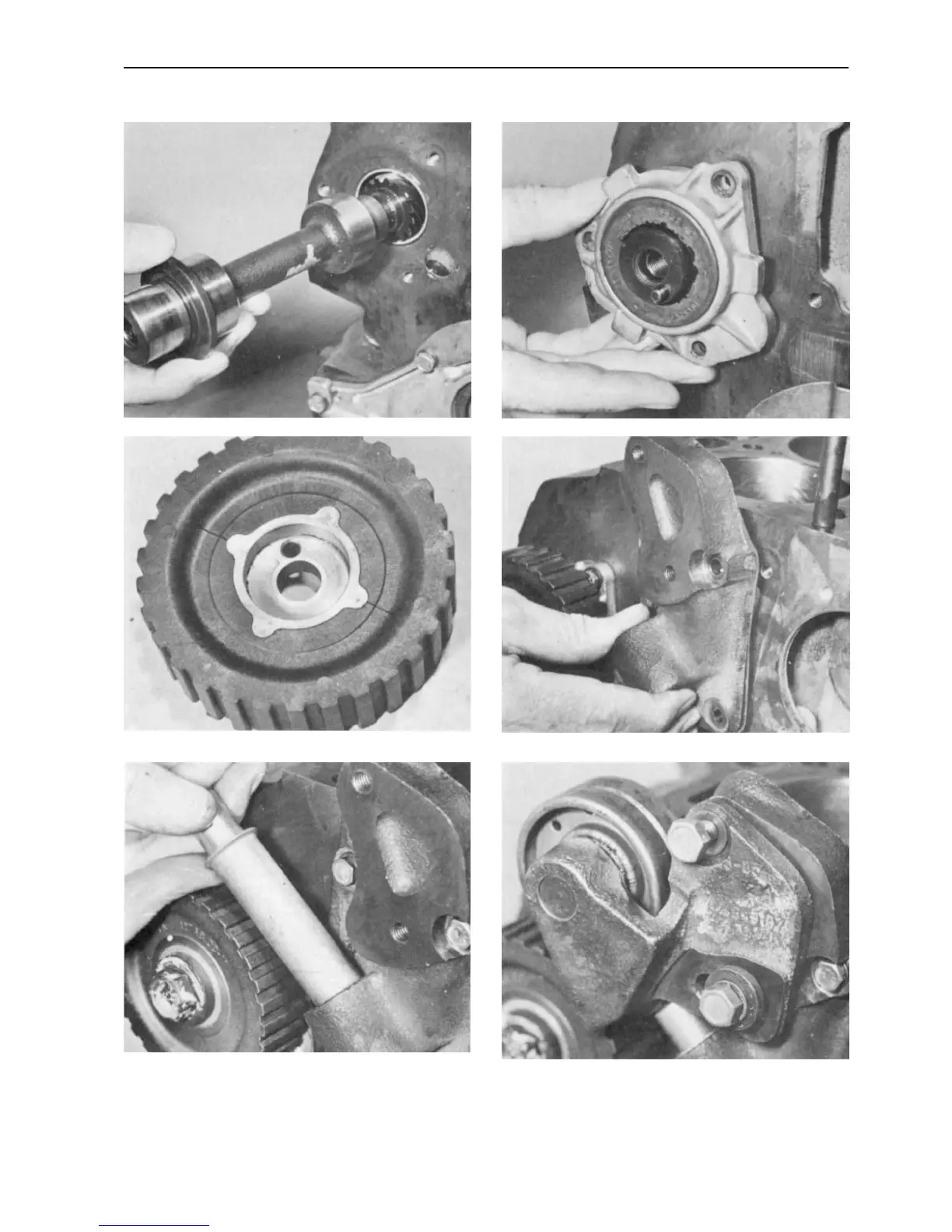

3.39 Fitting the auxiliary shaft… 3.40 …and its seal and carrier
3.42 This face of the pulley fits towards the shaft 3.43 Fit the belt tensioner bracket a new gasket to the
block …
3.44 …followed by the spring-loaded plunger… 3.45 …and then the tensioning wheel
