25/34

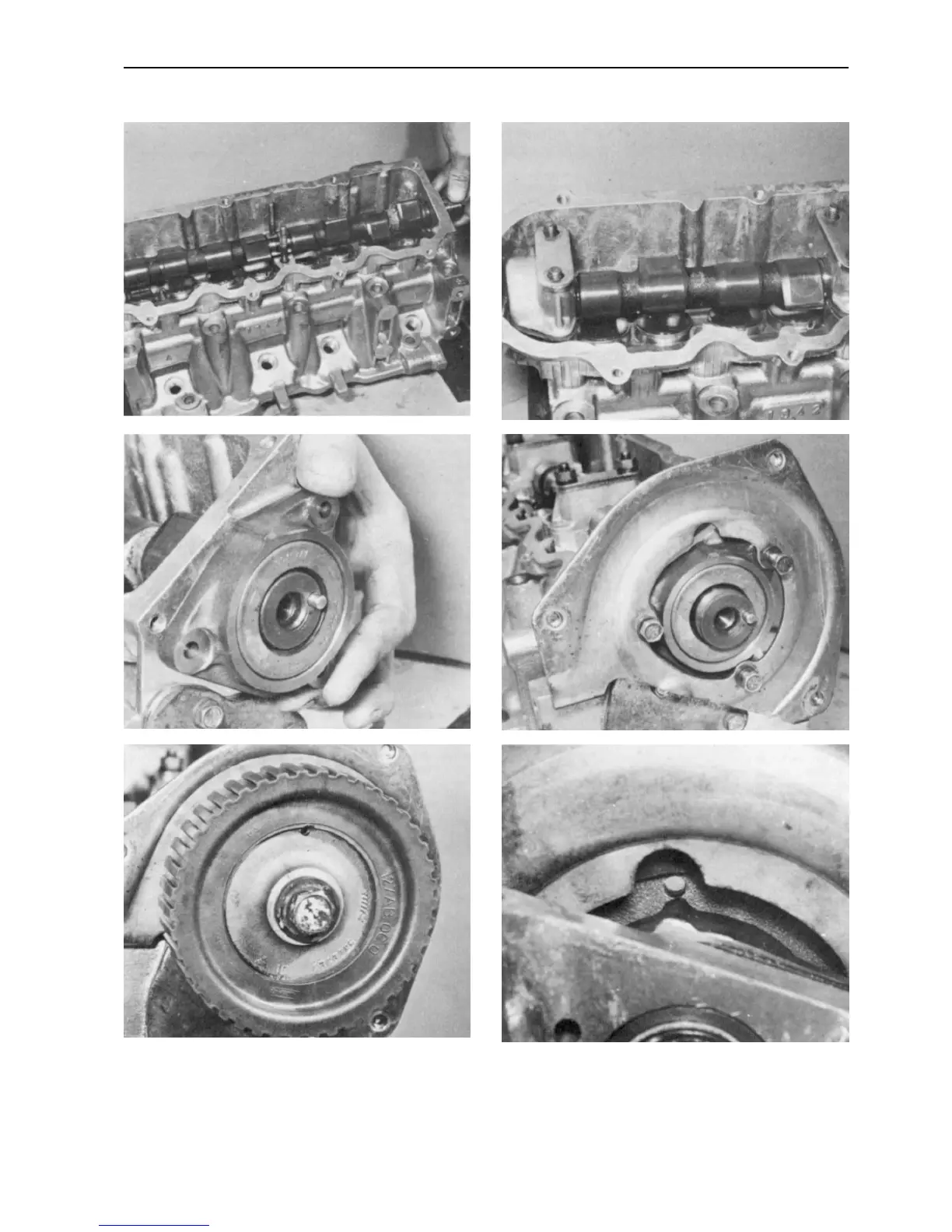

3.50 Position the camshaft in the cylinder head … 3.51 …and fit the half bearings and bridge plates
3.53 Fit the camshaft seal in its carrier to the cylinder head.
3.54 …followed by the drive belt quard backplate
3.56 Fit the camshaft toothed pulley 3.59 Hole in pulley aligned with část ridge, view from
behind the wheel
