ELECTRIC SYSTEM OPERATION
Level 1 Charging
(120V — Requires NEMA 5–15 Outlet)
Level 1 charging is done by using a conventional 120 Volt
AC grounded receptacle along with the NEMA 5–15
Electric Vehicle Supply Equipment (EVSE) that comes
standard with your vehicle. Refer to “Vehicle Charging
Cord” for further information.
Level 2 Charging
(240V — Requires A 40 Amp Circuit Breaker Or
Greater)
Level 2 charging is accomplished by using 240V perma-
nently mounted EVSEs and is the preferred method for
charging your vehicle.
A Level 2 charging station can be installed at your
residence. The Level 2 unit and installation service is
available for purchase at your authorized dealer.
Charge Times
The following factors determine the time it takes to
charge the high voltage battery:
• The high voltage battery’s current state of charge

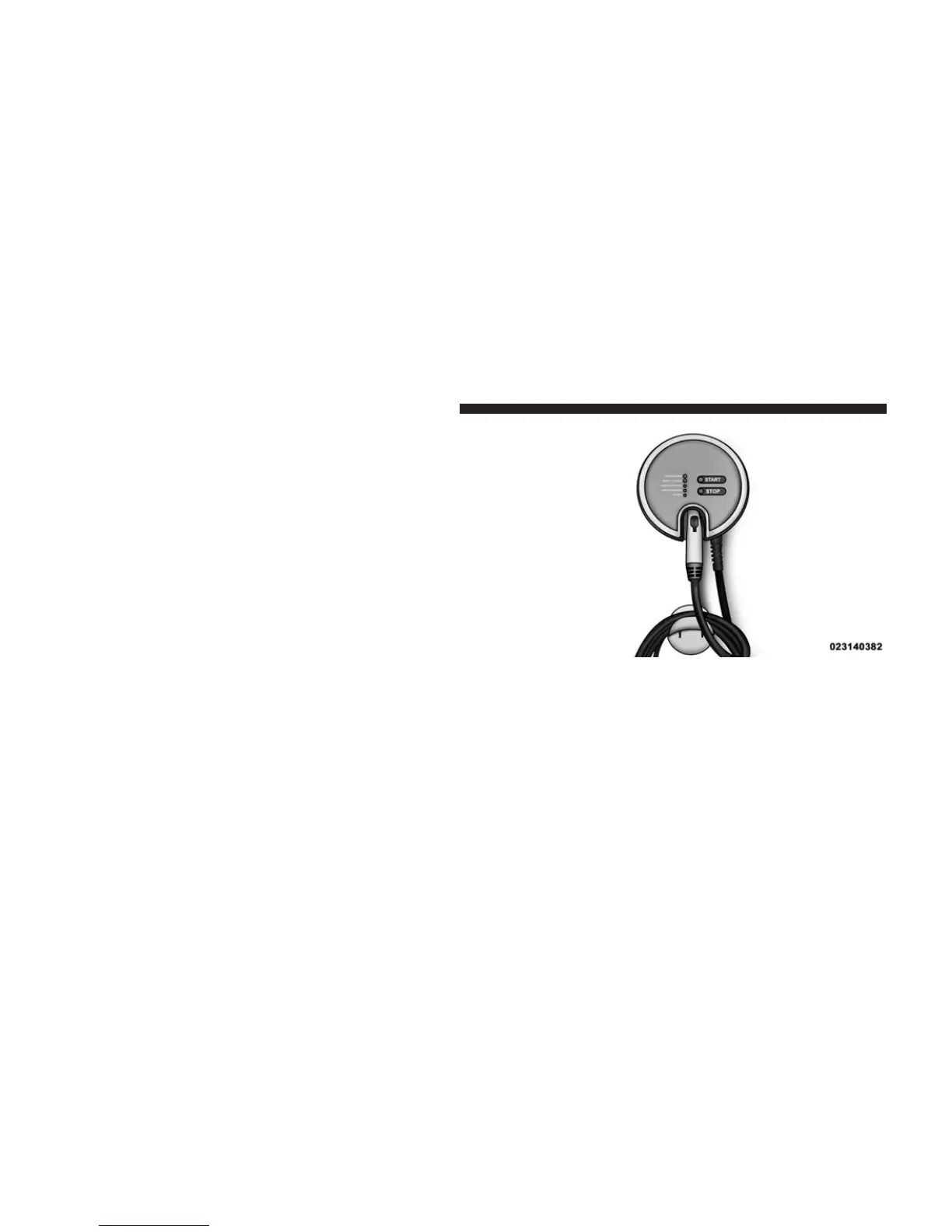

Level 2 Charging Station
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
