for versions with wheel cap, remove the
wheel cap after loosening the 3 fastening
bolts and finally loosen the fourth bolt
L-fig. 5 and extract the wheel;
❒
make sure the contact surfaces be-
tween spare wheel and hub are clean
so that the fastening bolts will not come
loose;
❒
fit the spare wheel by inserting the first
bolt for two threads into the hole clos-
est to the inflation valve;
❒
fit the wheel cap making the crescent
hole coincide with the bolt you have fit-
ted using the wrench;
❒
tighten the fastening bolts;
❒
turn the jack handle L-fig. 4 to lower
the car and remove the jack;
❒
use the wrench provided to fasten the
bolts completely in a criss-cross fashion
as shown in fig. 6;
❒
if replacing a wheel with alloy rim, stove
it temporarily into the spare wheel
compartment with the cosmetic side
facing upwards.
REFITTING THE
STANDARD WHEEL
Following the procedure described previ-
ously, raise the car and remove the spare
wheel.

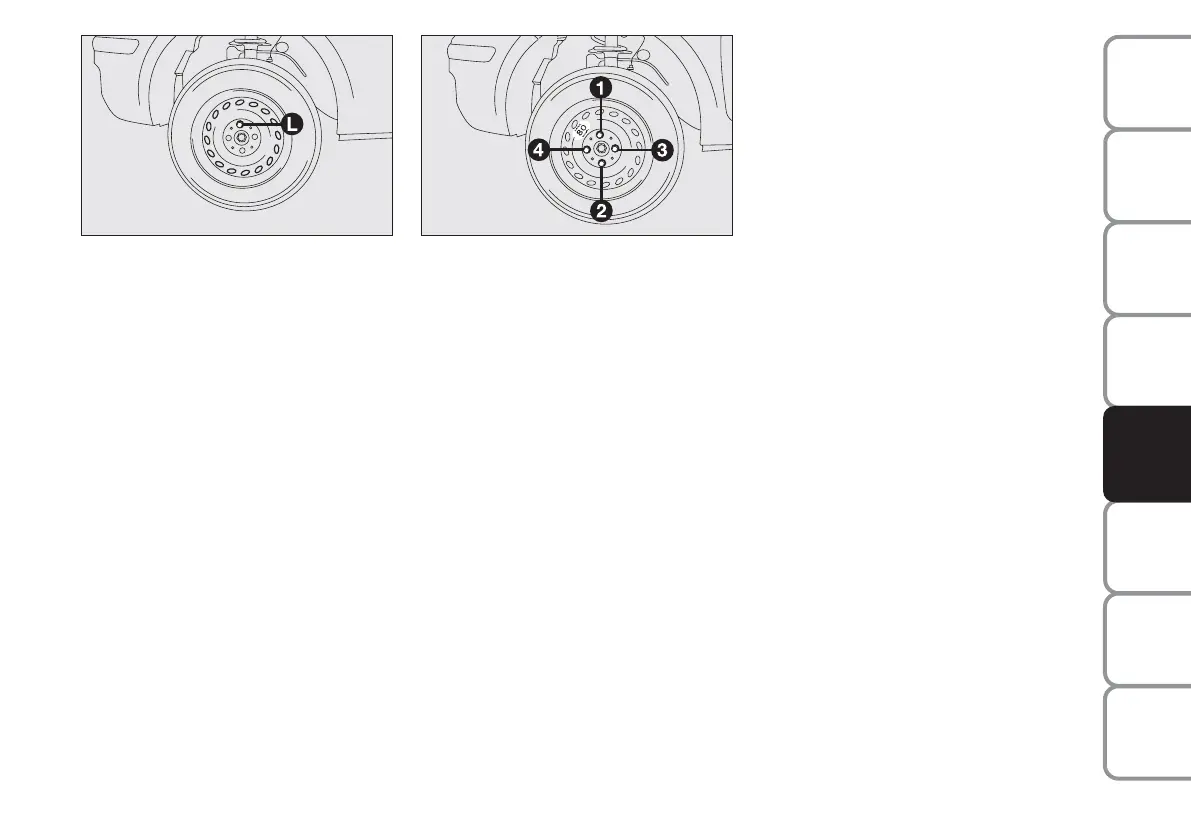

fig. 5
F0R0156m
fig. 6
F0R0157m
