MAIN BEAMS

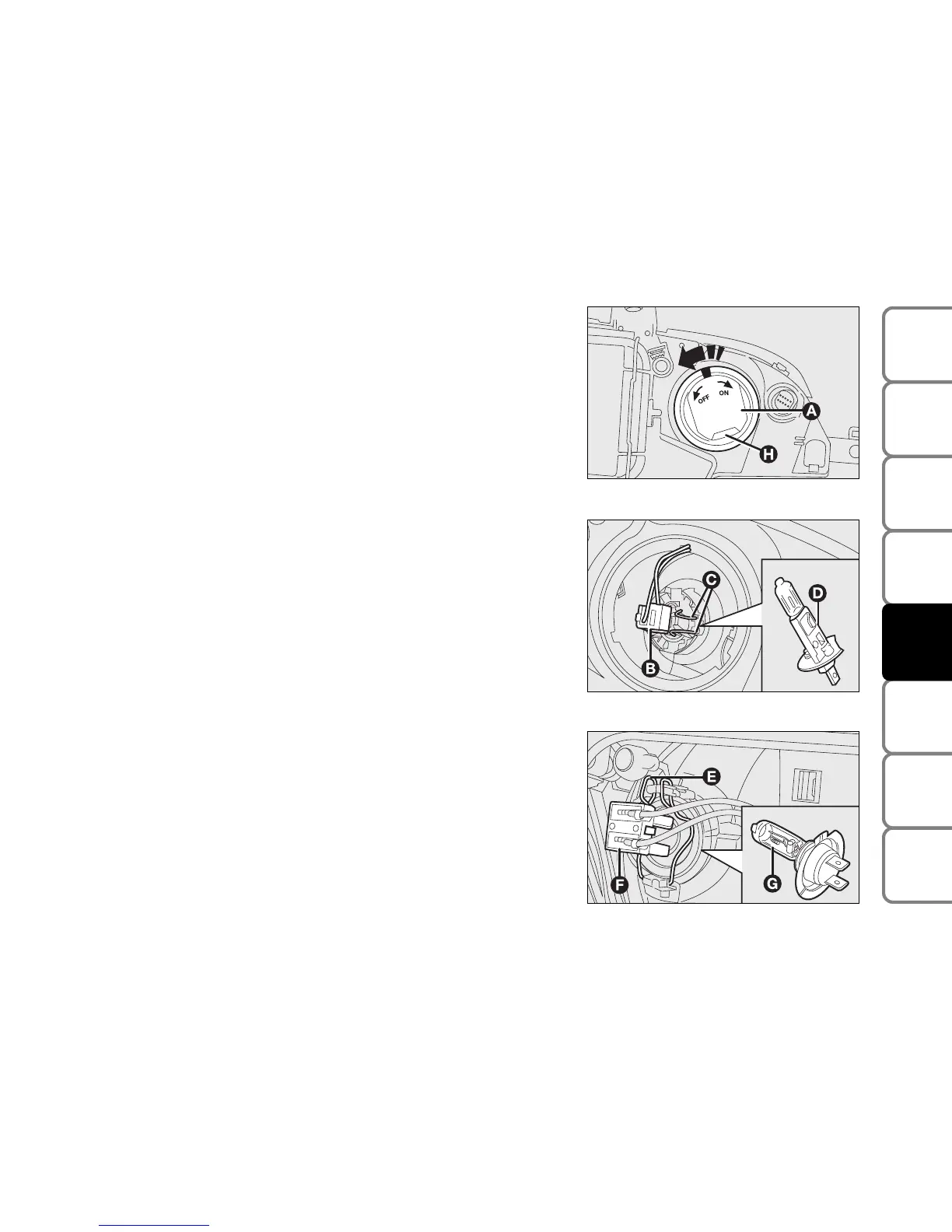

To change the bulb, proceed as follows:
❒ turn cap (A) counterclockwise and remove it;
❒ disconnect the electric connector (B);
❒ release the bulb holder catch (C);
❒ remove the bulb (D) and replace it;
❒ refit catch (C), reconnect the electrical connector (B) and refit cap
(A) turning it clockwise. Cap vent (H) shall be set from the top
downwards.
DIPPED BEAMS
To change the bulb, proceed as follows:
❒ remove the protective cover releasing the catch;
❒ disconnect the electric connector (F);
❒ release the bulb holder catch (E);
❒ remove the bulb (G) and replace it;
❒ fit the new bulb, making the outline of the metallic part coincide with
the grooves on the reflector, then hook the bulb holder catch (E) and
reconnect the electrical connector (F) ;
❒ refit the protective cover correctly.
