CLIMATE CONTROL SYSTEM
18) 2)
HEATER/MANUAL CLIMATE CONTROL SYSTEM
(for versions/markets, where provided)

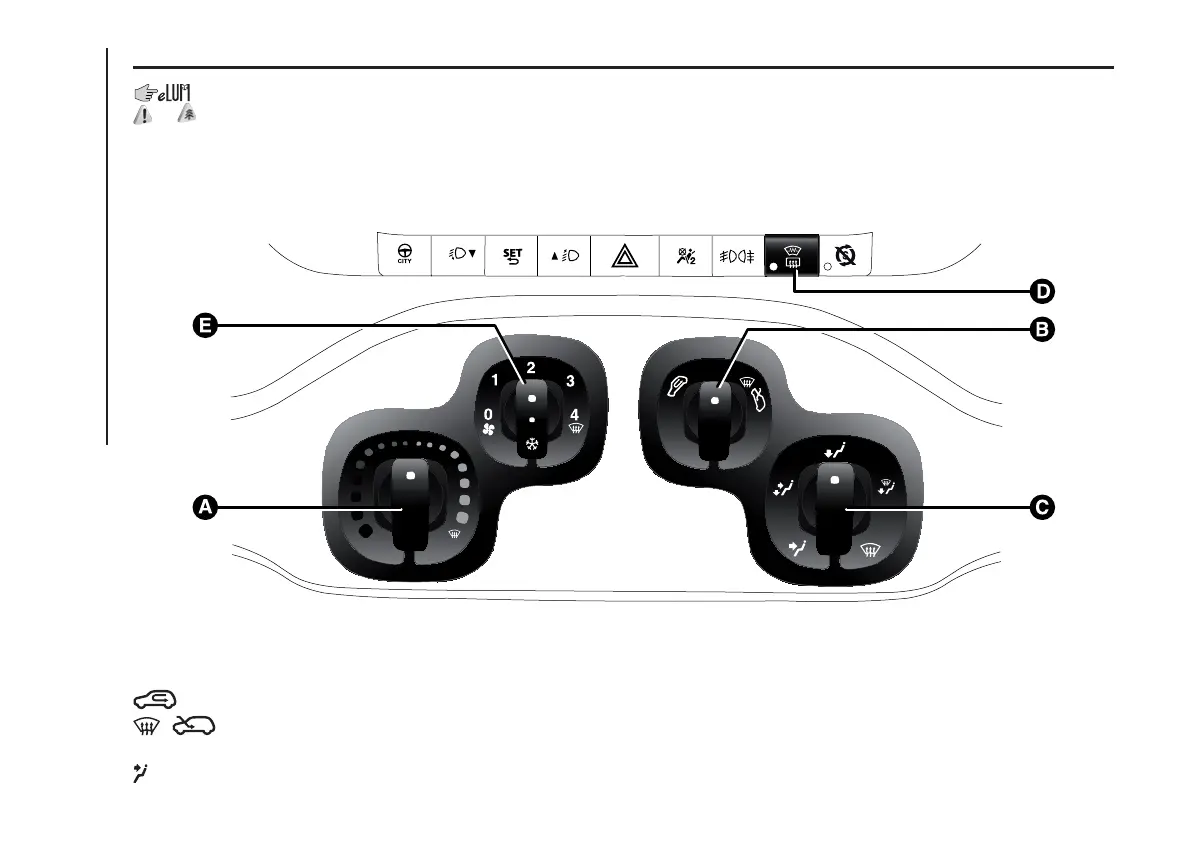

Controls
A - Air temperature adjustment knob (red-hot/blue-cold).
B - Air recirculation knob:
internal air recirculation.
air intake from outside.
C - Air distribution knob:
air outlet from the central and side vents of the dashboard.
1
0
2
3
4
23
F1D0132
22
