FIAT PANDA ADVENTURE

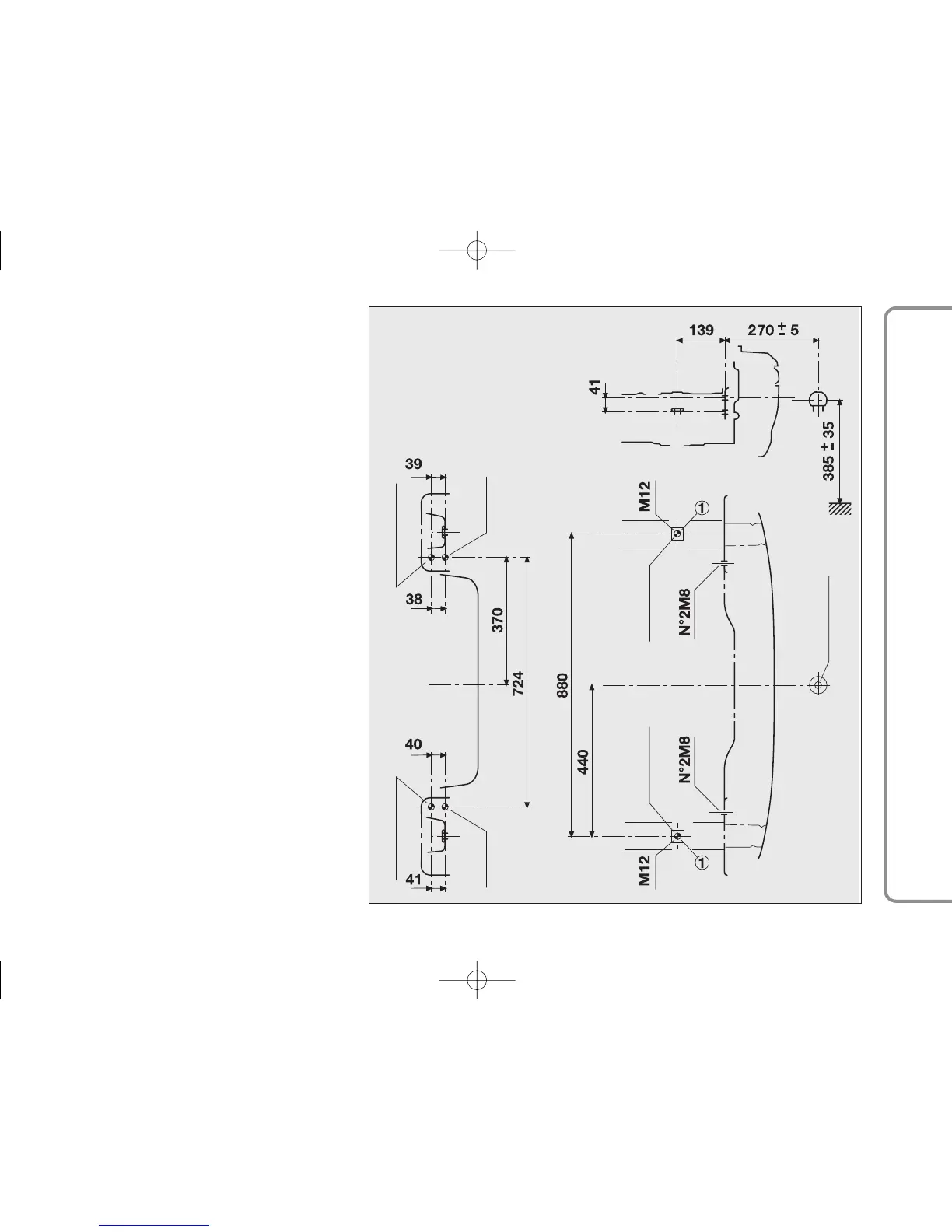

ASSEMBLY DIAGRAM fig. 11
The tow hook structure must be fastened
in the points shown by the symbol Ø with
a total of 4 M8 screws, 2 M12 screws. The
internal plates 1 must be 6 mm thick. The
hook should be fastened to the body
avoiding any type of drilling and trimming
of the rear bumpers that remains visible
when the hook is removed.
IMPORTANT It is compulsory to fasten a
label (plainly visible) of suitable size and
material with the following wording: MAX
LOAD ON BALL 60 kg
After fitting, screw holes shall be sealed to
prevent exhaust gas inlet.
fig. 11
F0G0266m
